Power Source
›
Location
Power Source: Location

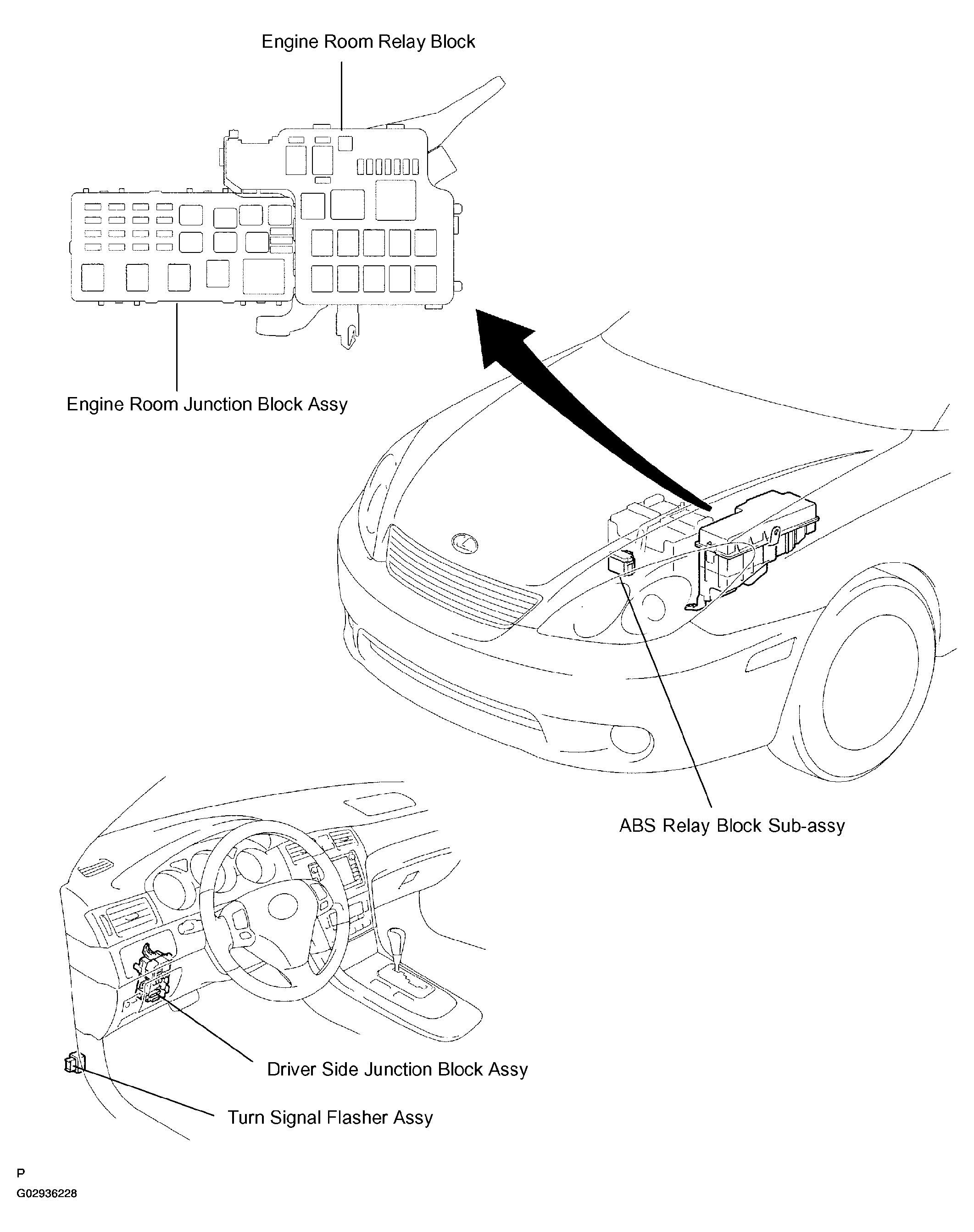

Fig 1: Locating Relay Blocks
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

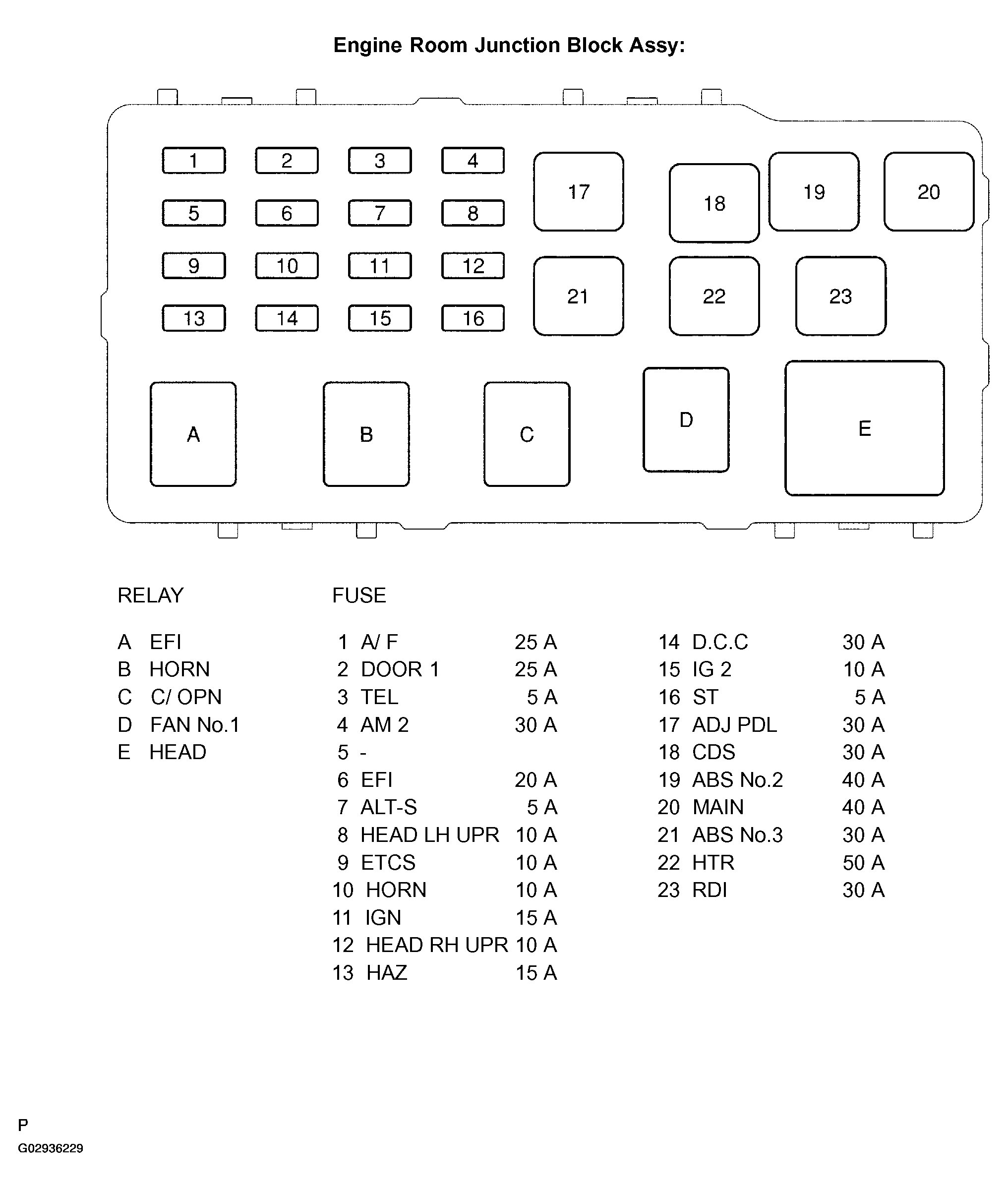

Fig 2: Locating Engine Room Junction Block Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

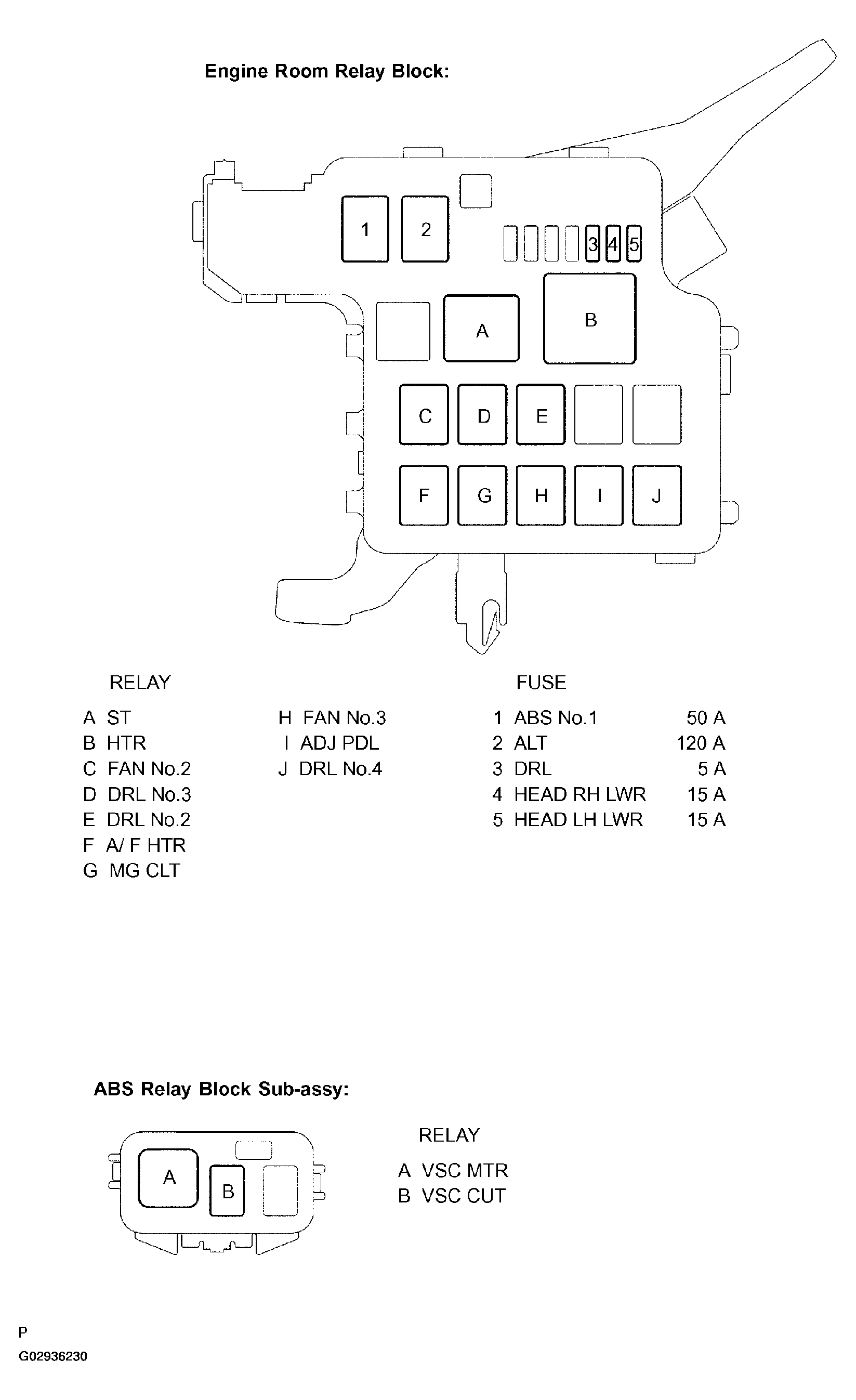

Fig 3: Locating Engine Room Relay Block Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

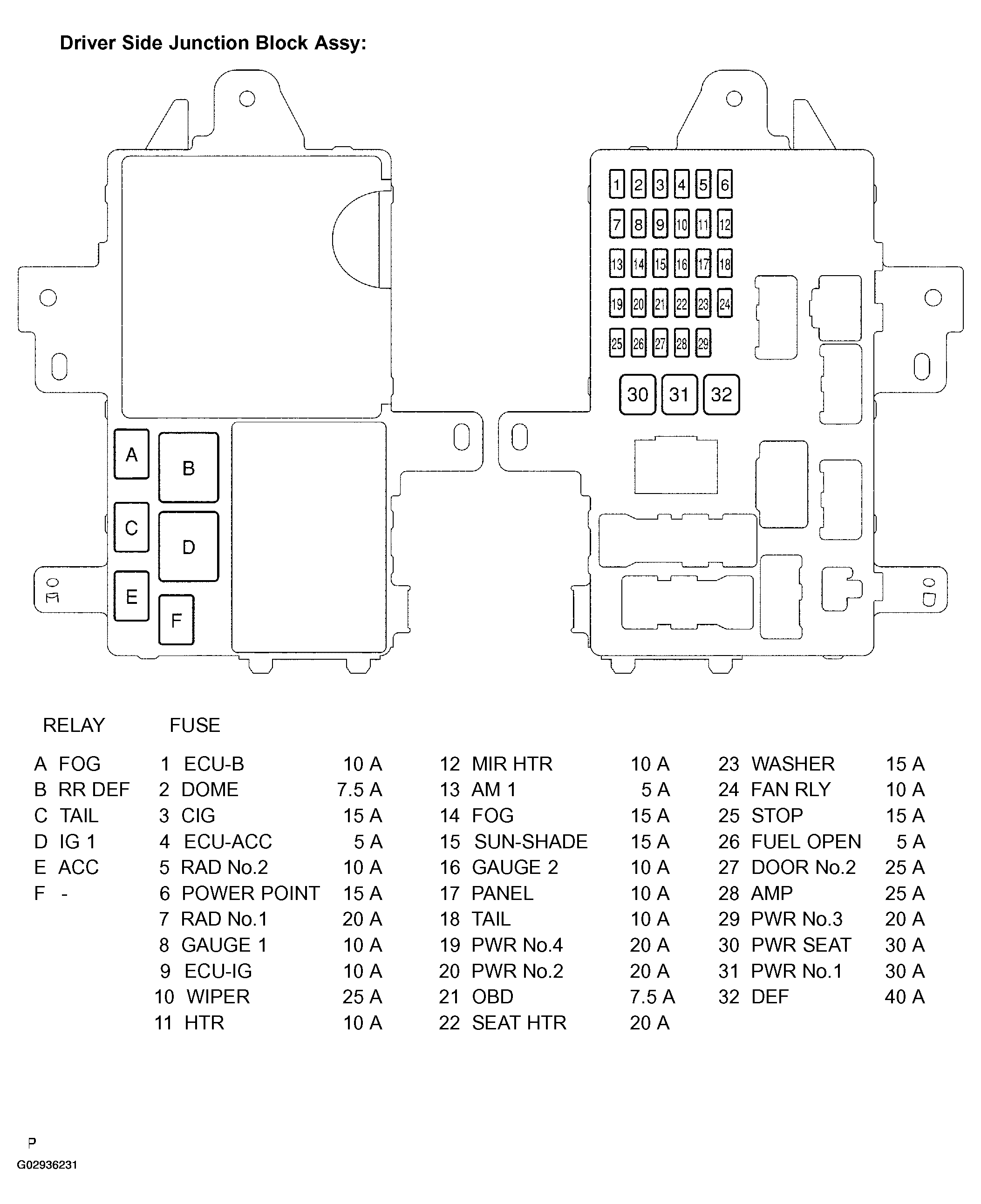

Fig 4: Locating Driver Side Junction Block Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
