Throttle Body ASSY (3MZ-FE): Components

Fig 1: Identifying Partial Throttle Body Assembly Components (1 Of 2)
G02938993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

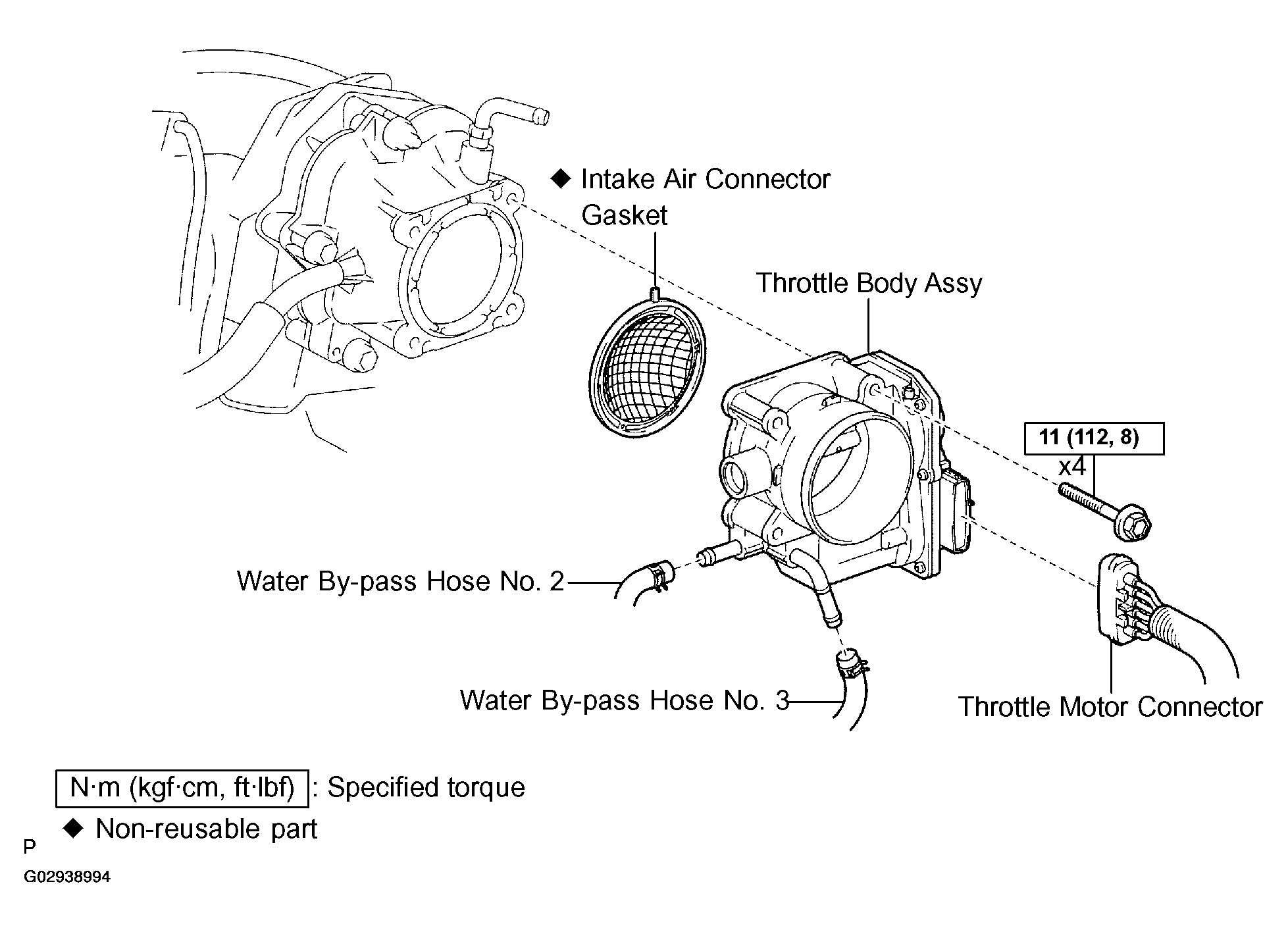

Fig 2: Identifying Partial Throttle Body Assembly Components (2 Of 2)
G02938994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
