SFI System - Diagnostics
›
ECM Power Source Circuit
›
Wiring Diagram

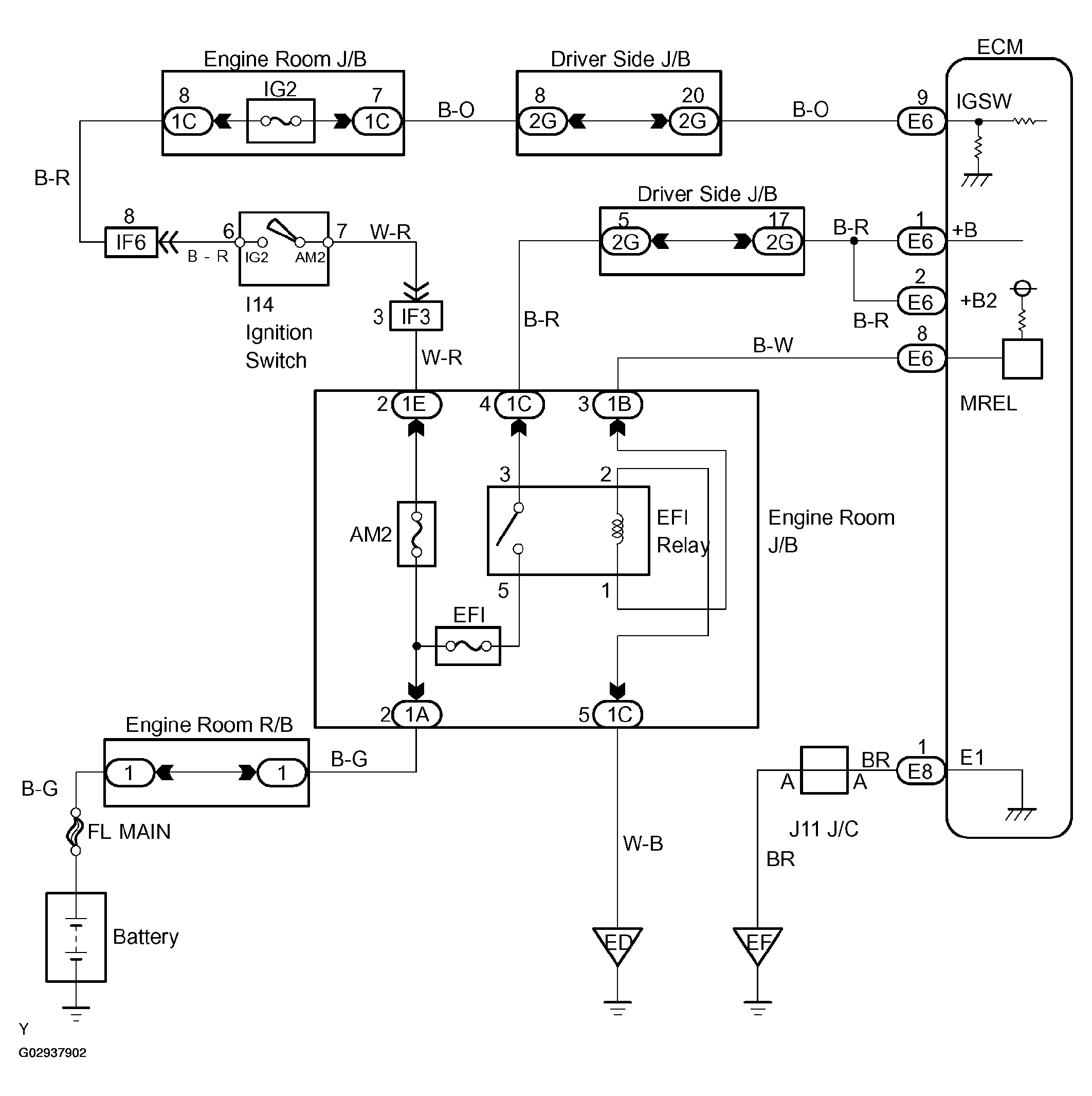

ECM Power Source Circuit: Wiring Diagram
Fig 1: Wiring Diagram - ECM Power Source Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
