EVAP Inspection Procedure: Wiring Diagram

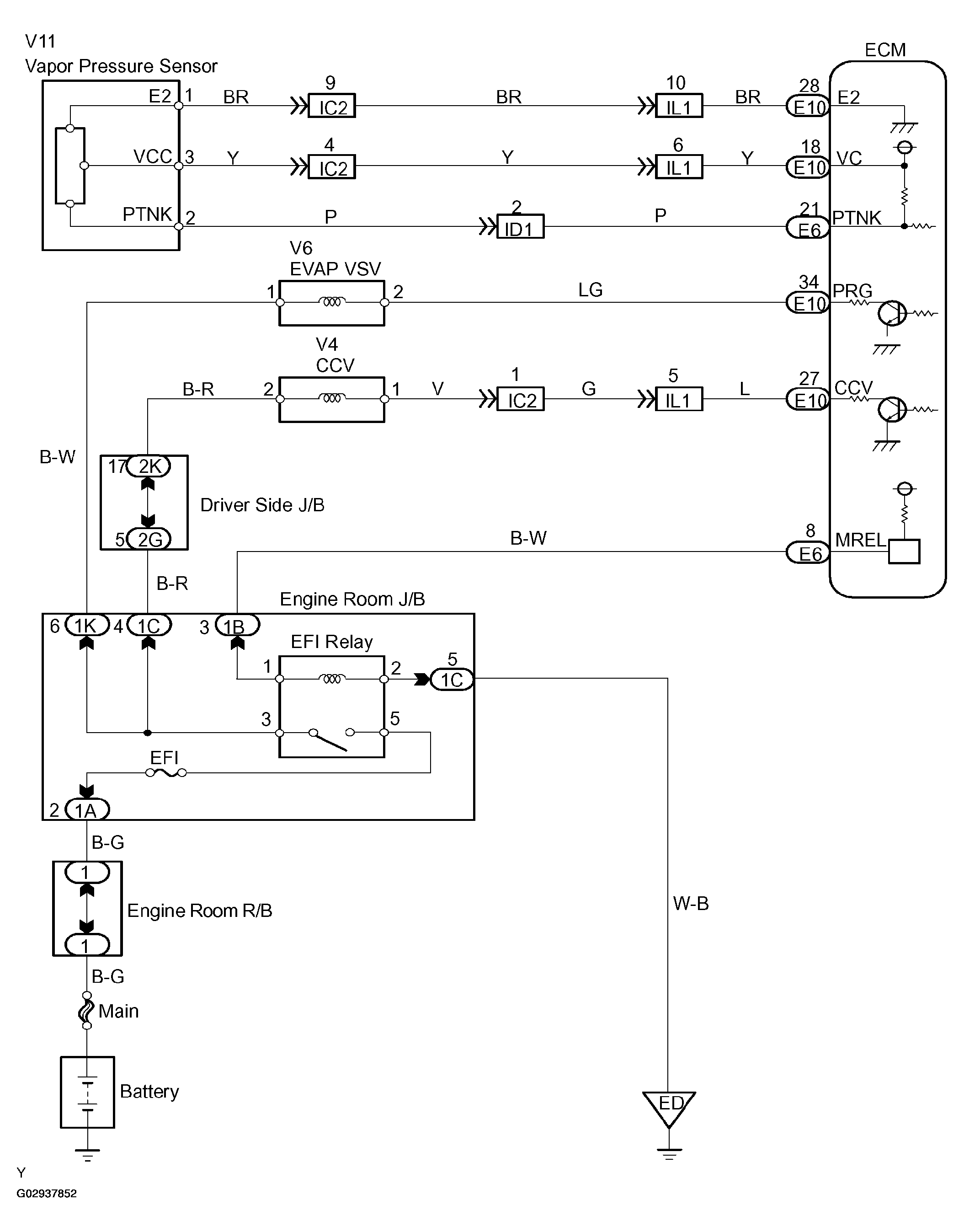

Fig 1: Wiring Diagram - EVAP System
G02937852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
