Automatic Transaxle - Service Specifications
›
Automatic Transaxle
›
Torque Specifications
Torque Specifications

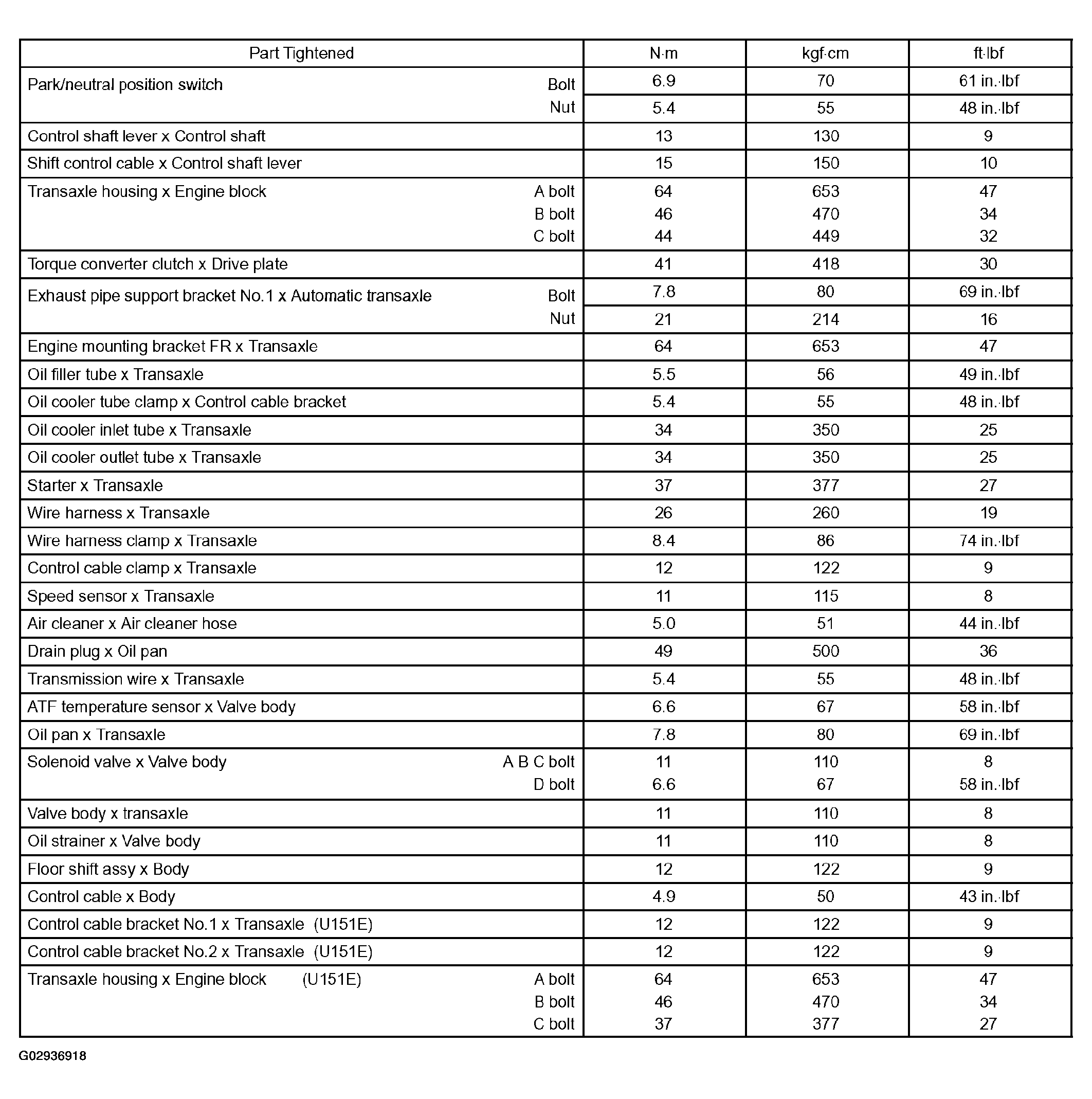

Fig 1: Automatic Transmission/Transaxle Torque Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
