Automatic Transmission / Transaxle (U151E/U151F): Components

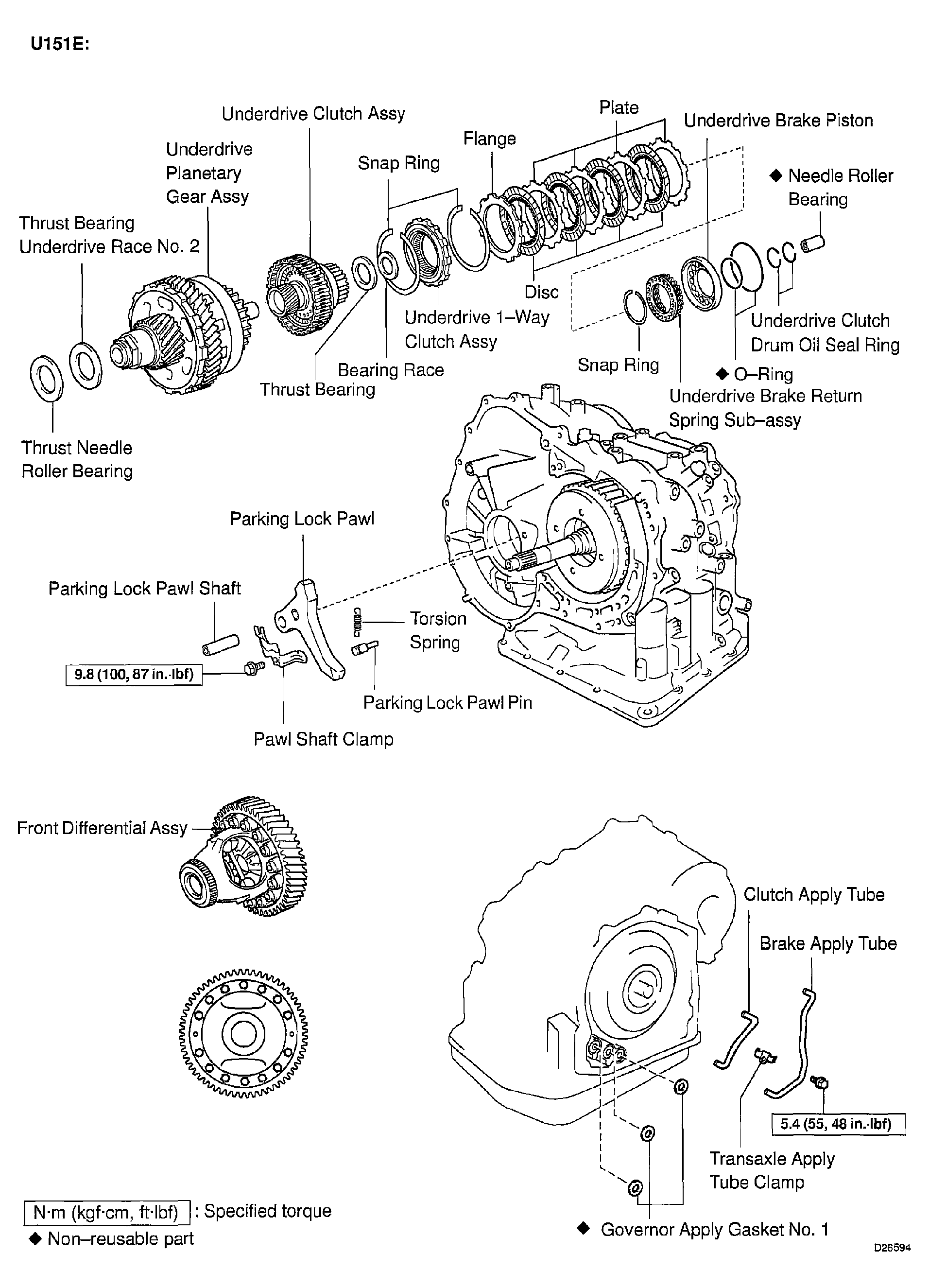

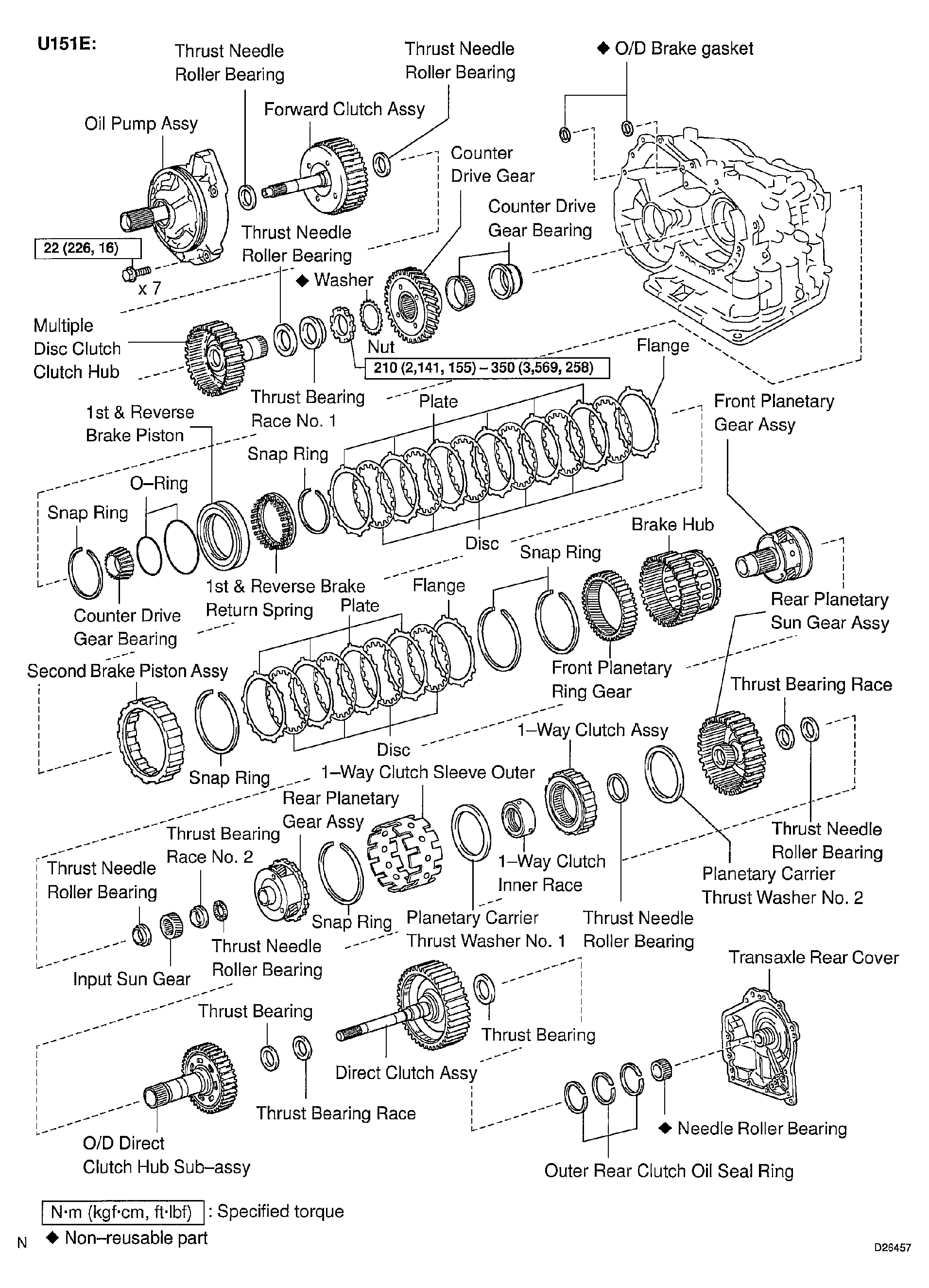

Fig 1: Exploded View Of Automatic Transmission / Transaxle U151E (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

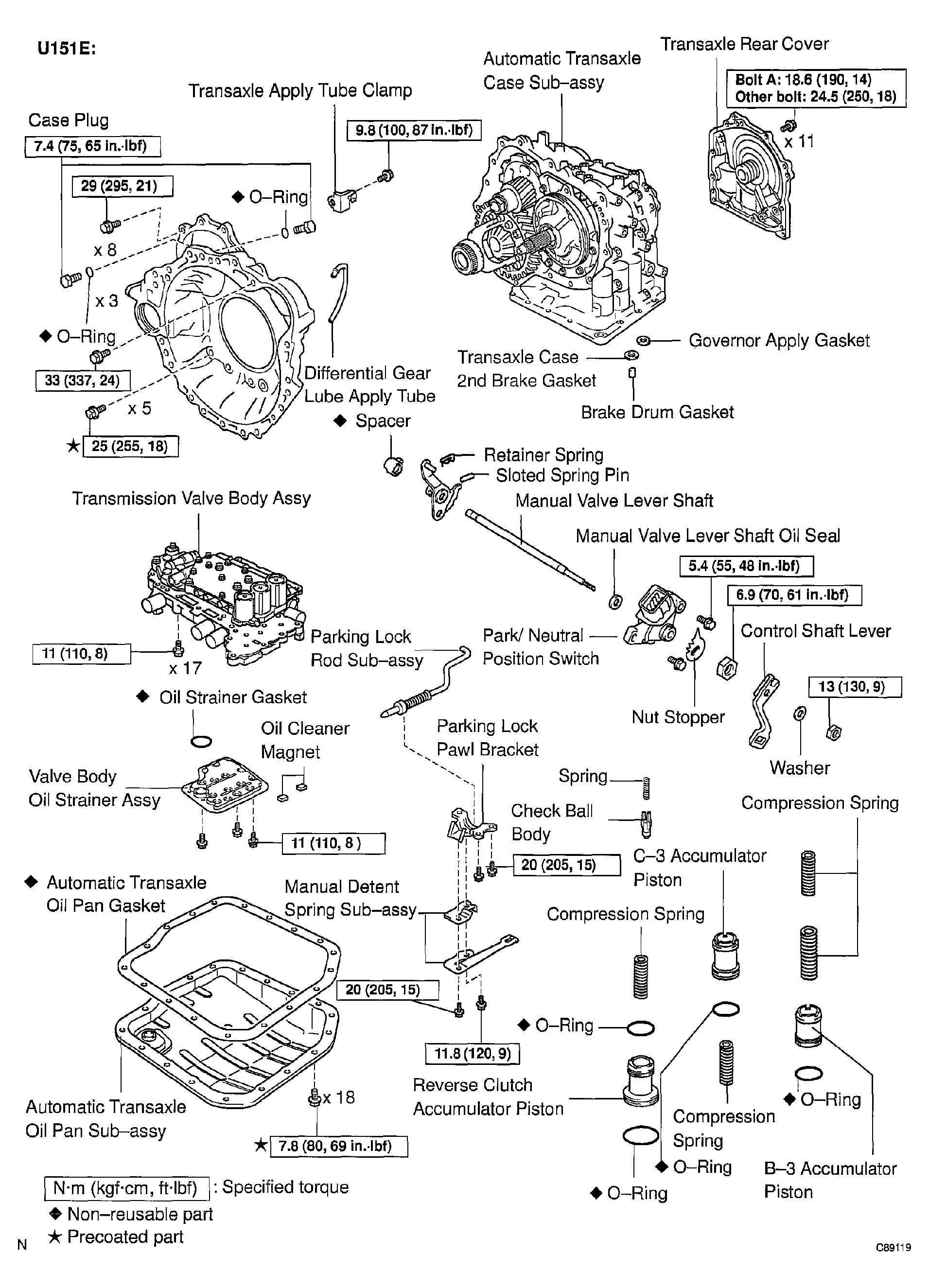

Fig 2: Exploded View Of Automatic Transmission / Transaxle U151E (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Exploded View Of Automatic Transmission / Transaxle U151E (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Exploded View Of Automatic Transmission / Transaxle U151E (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

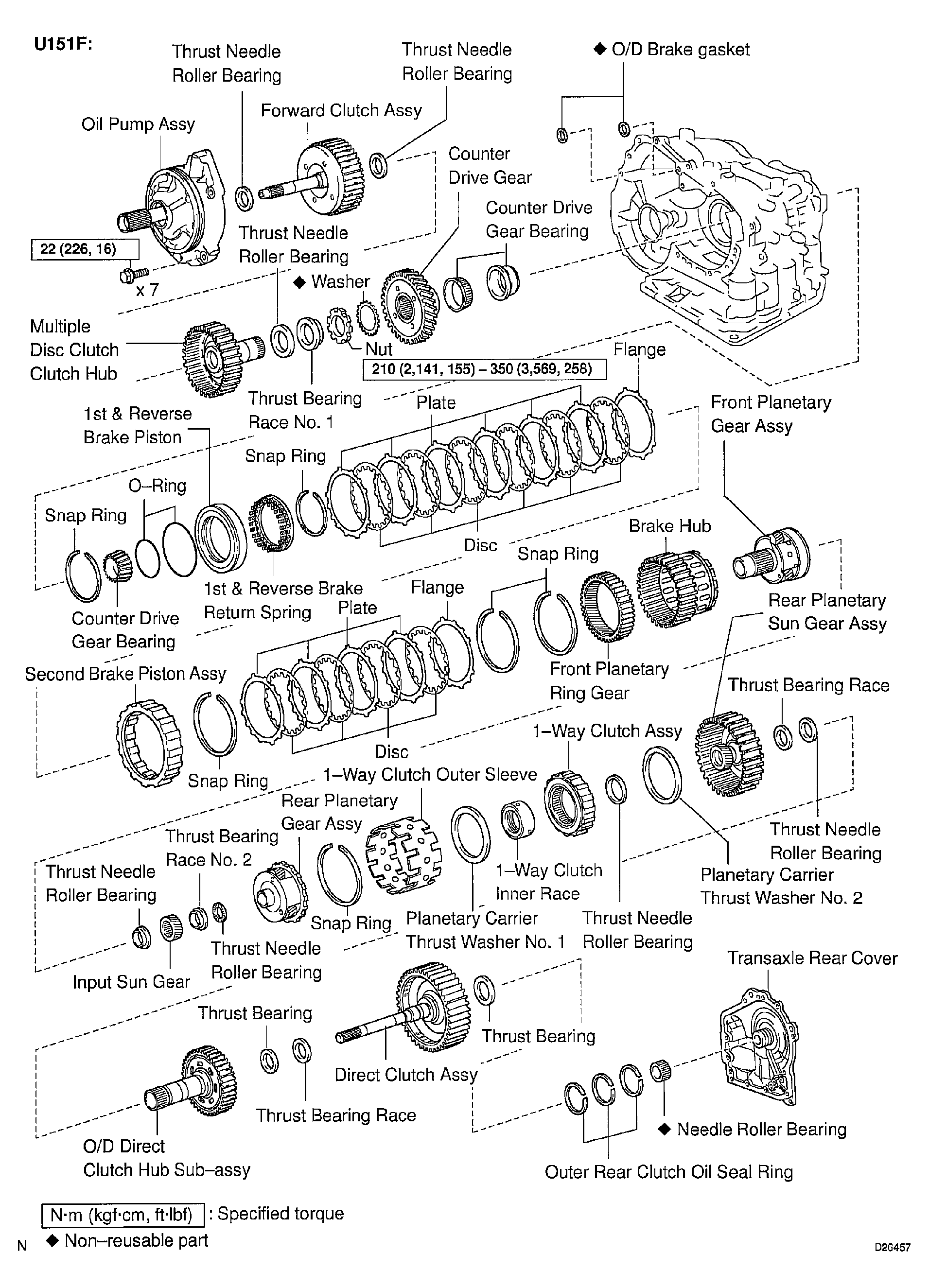

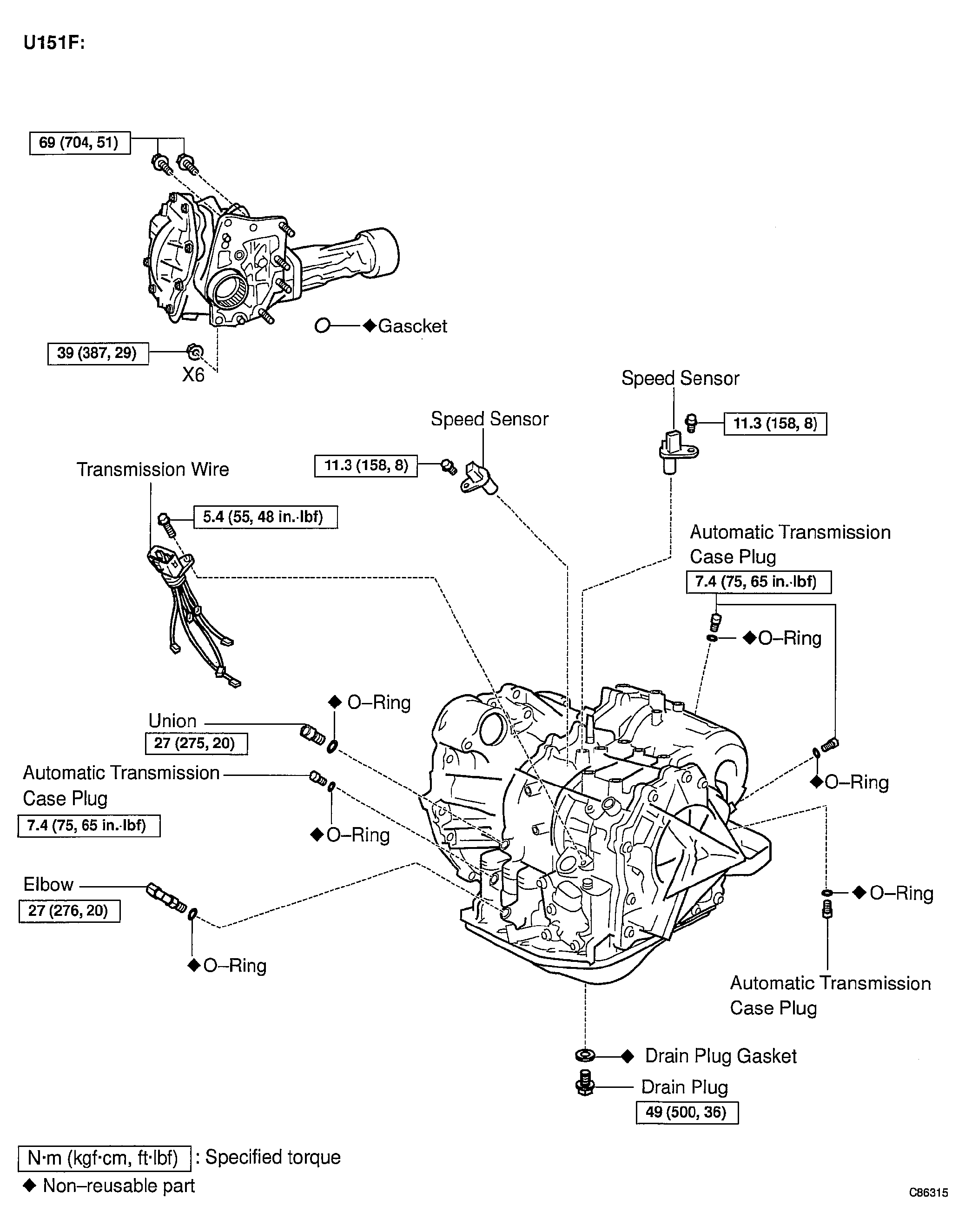

Fig 5: Exploded View Of Automatic Transmission / Transaxle U151F (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Exploded View Of Automatic Transmission / Transaxle U151F (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

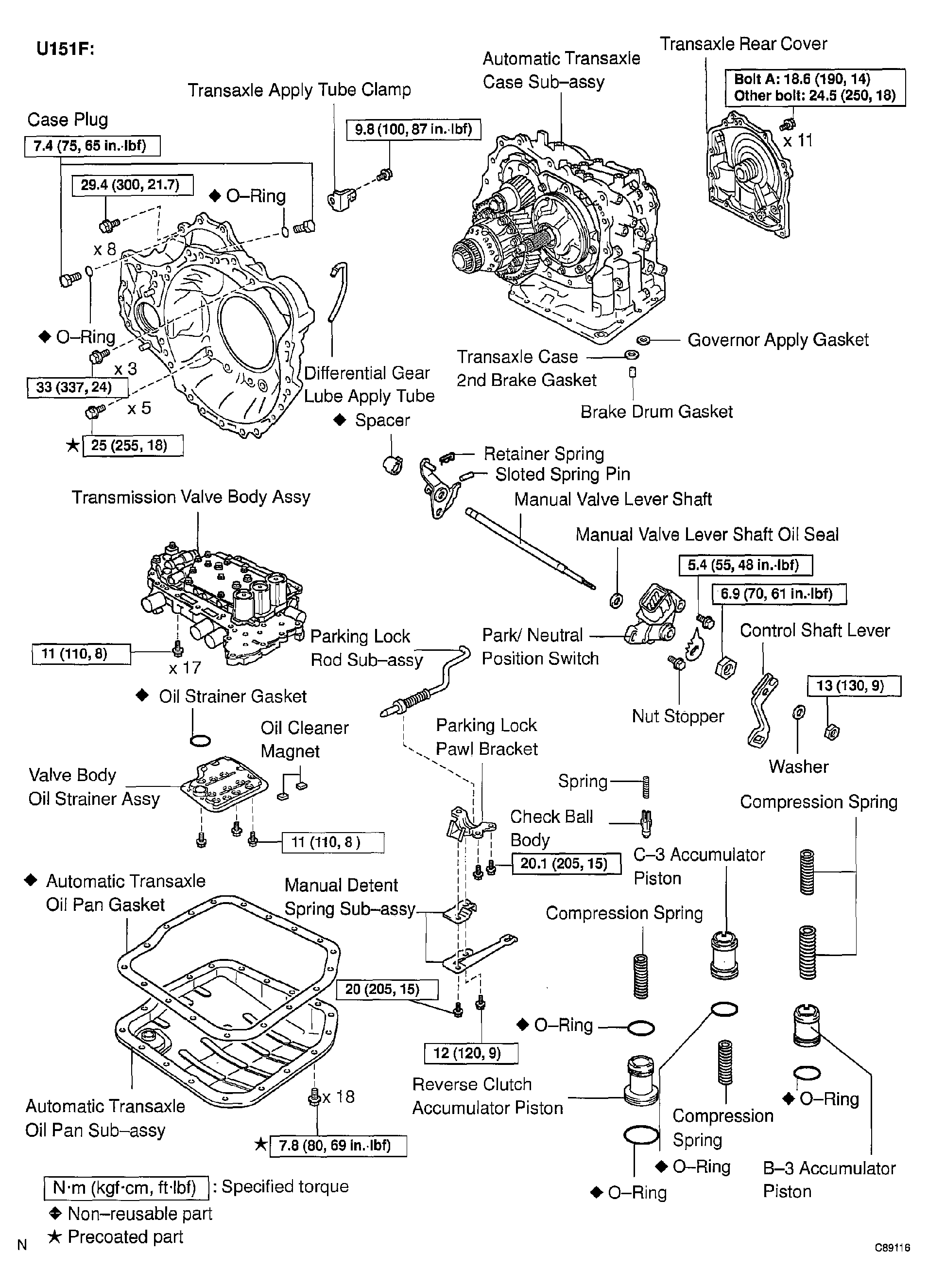

Fig 7: Exploded View Of Automatic Transmission / Transaxle U151F (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

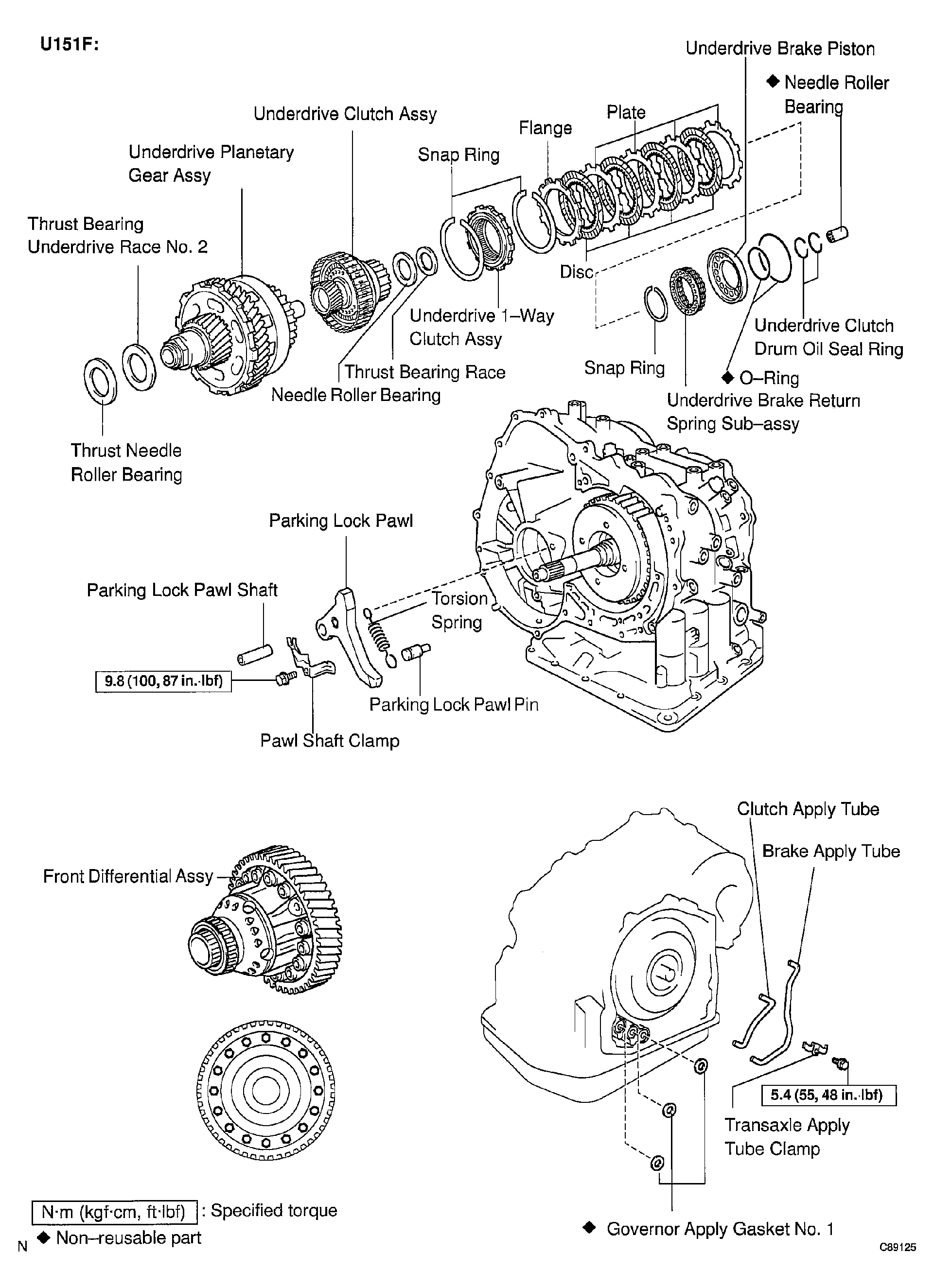

Fig 8: Exploded View Of Automatic Transmission / Transaxle U151F (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

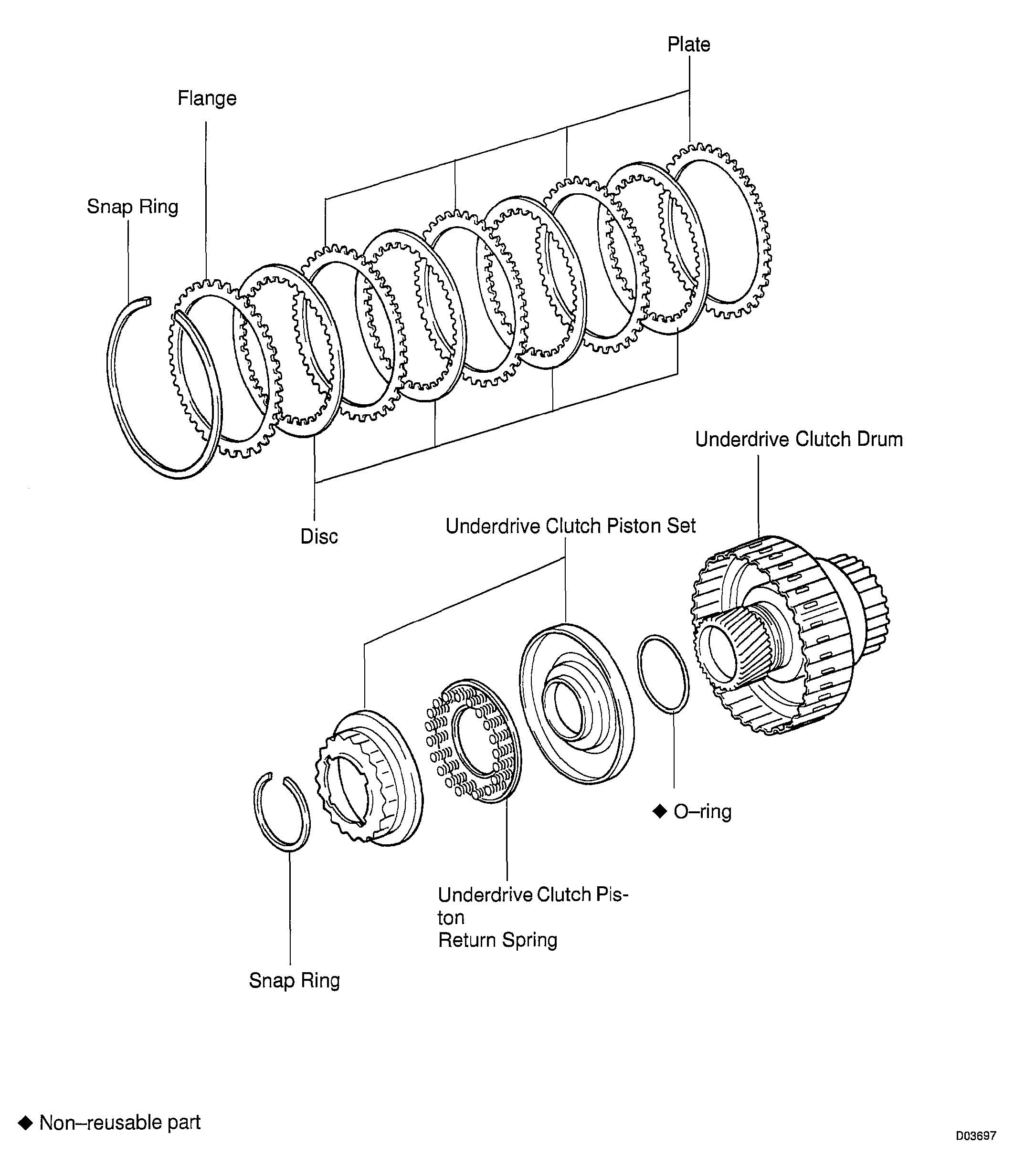

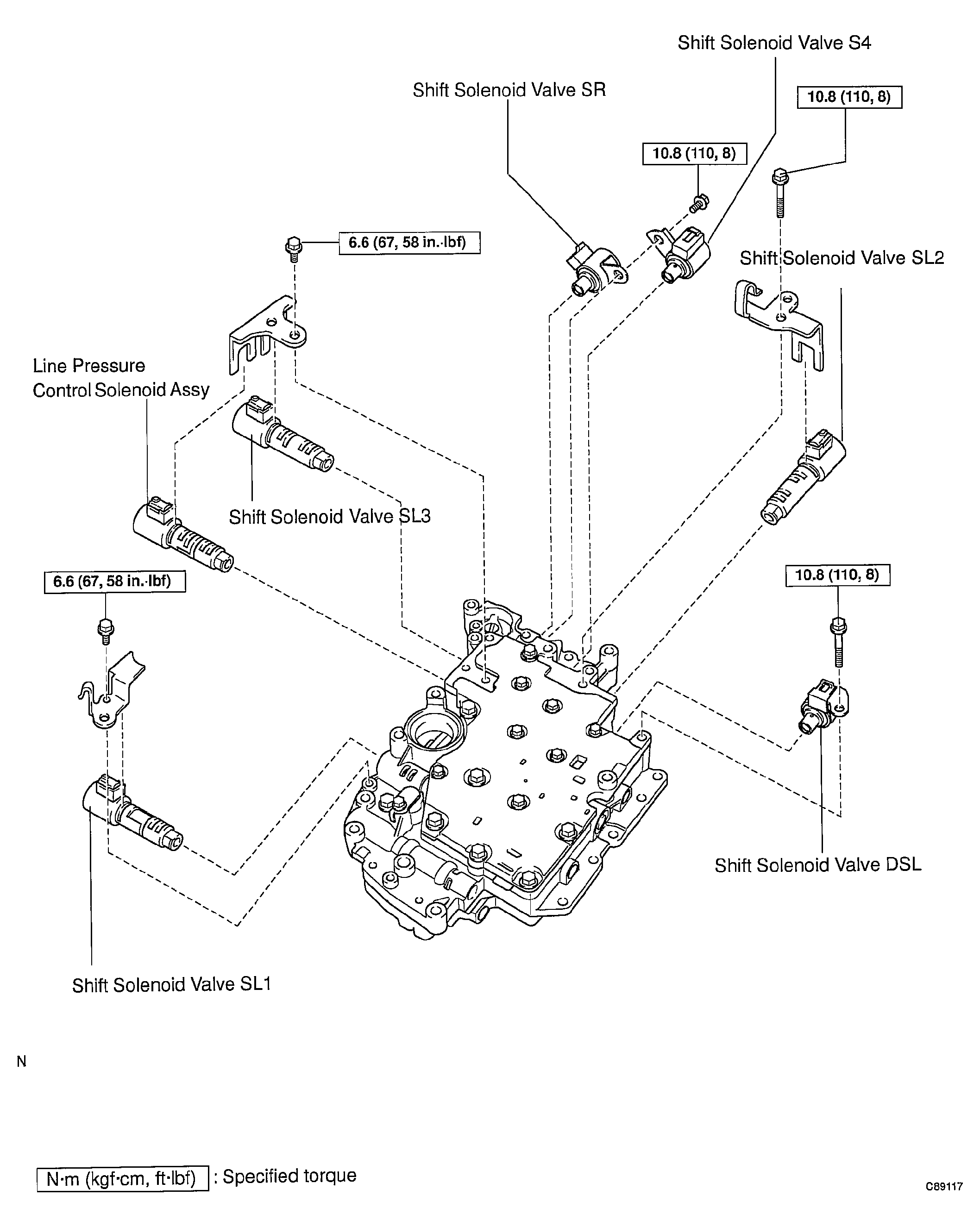

Fig 9: Exploded View Of Automatic Transmission / Transaxle (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

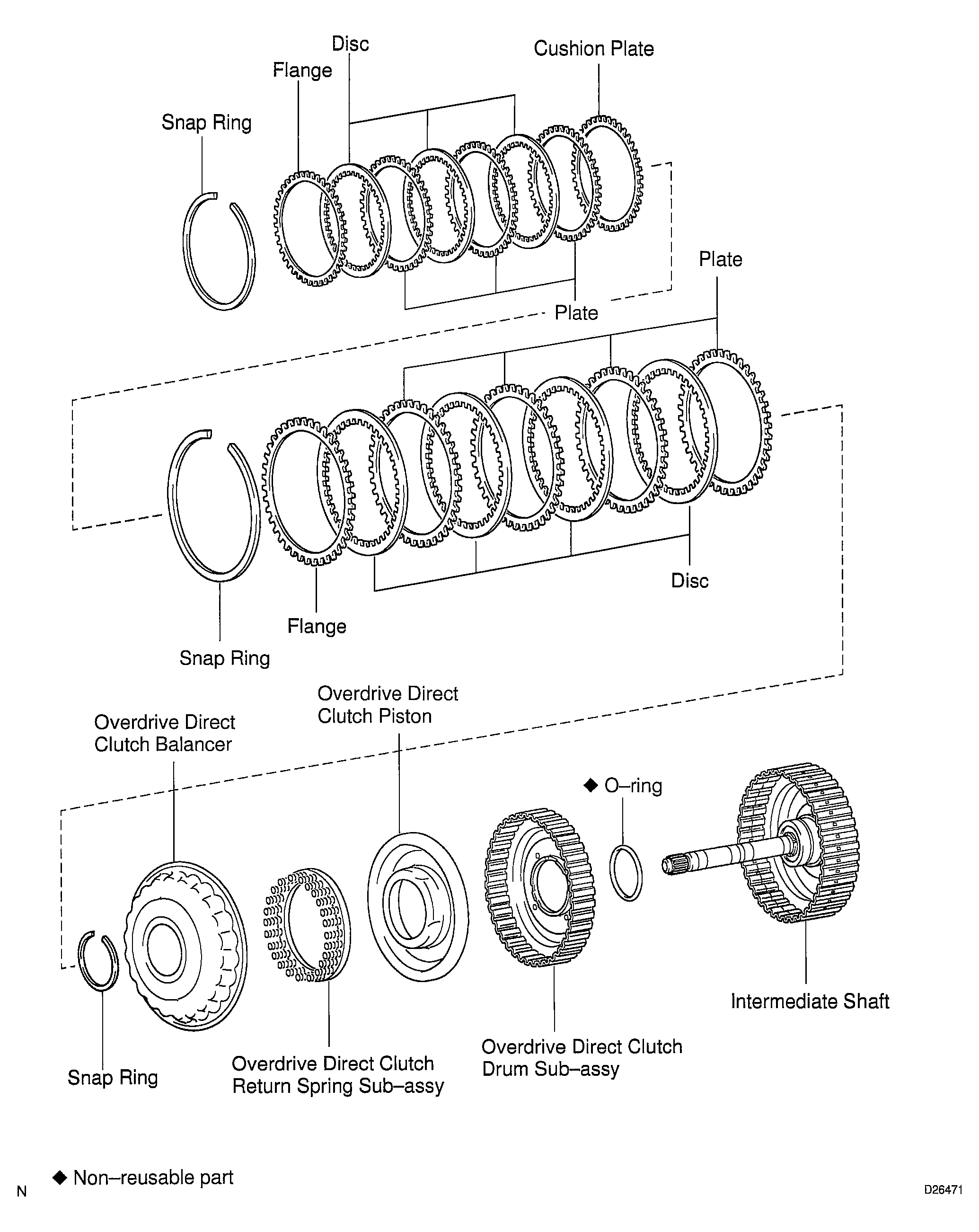

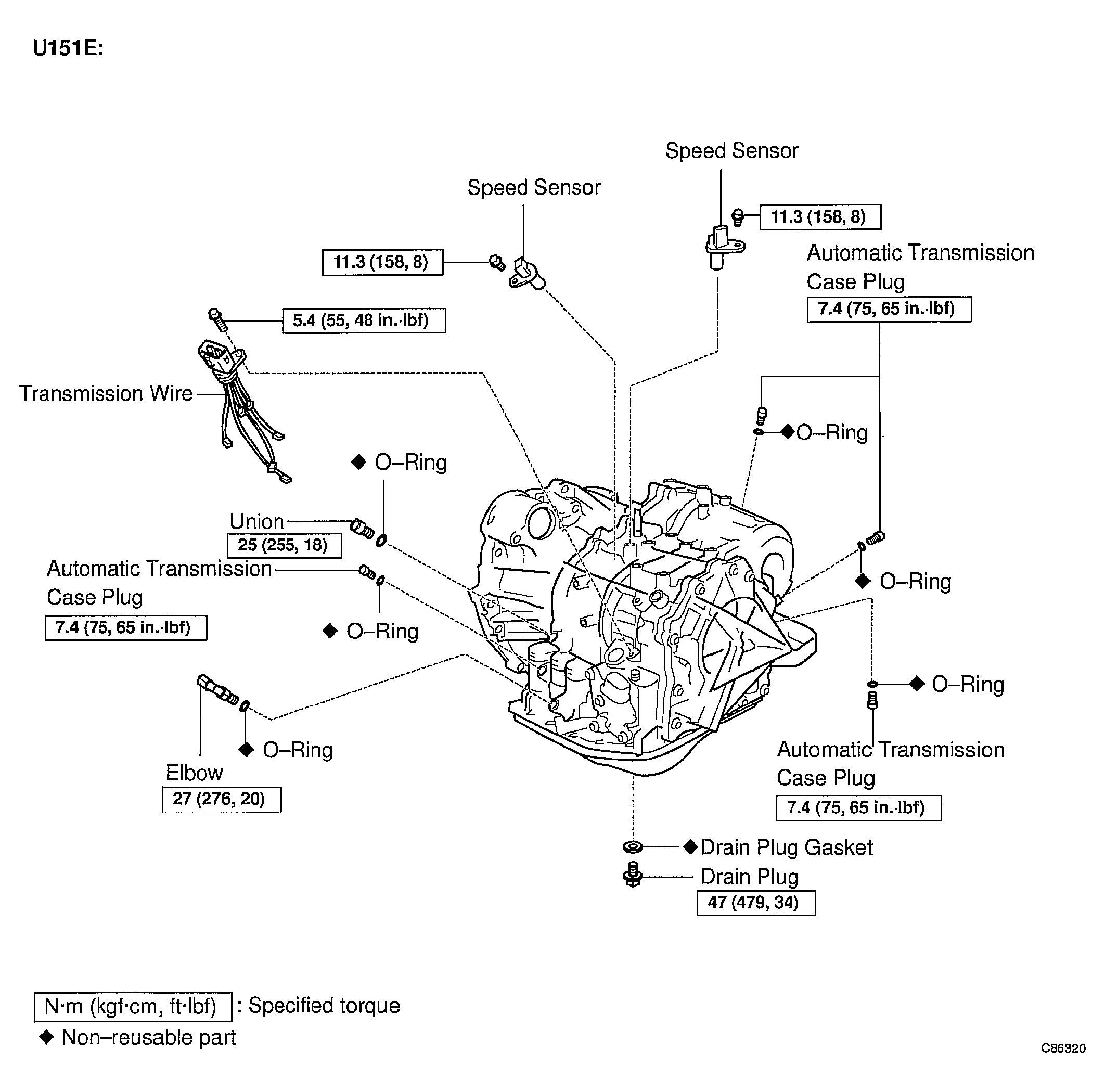

Fig 10: Exploded View Of Automatic Transmission / Transaxle (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

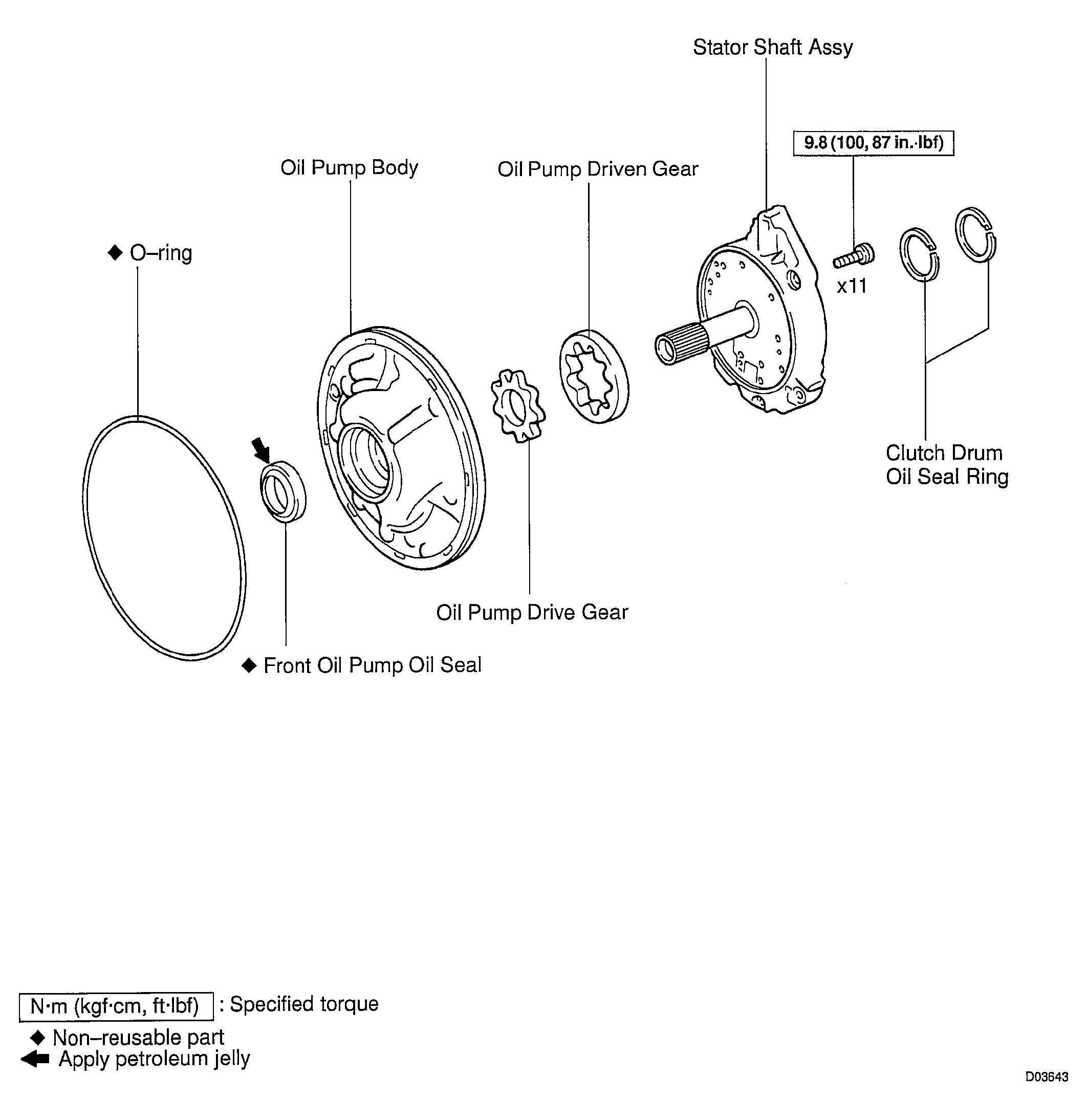

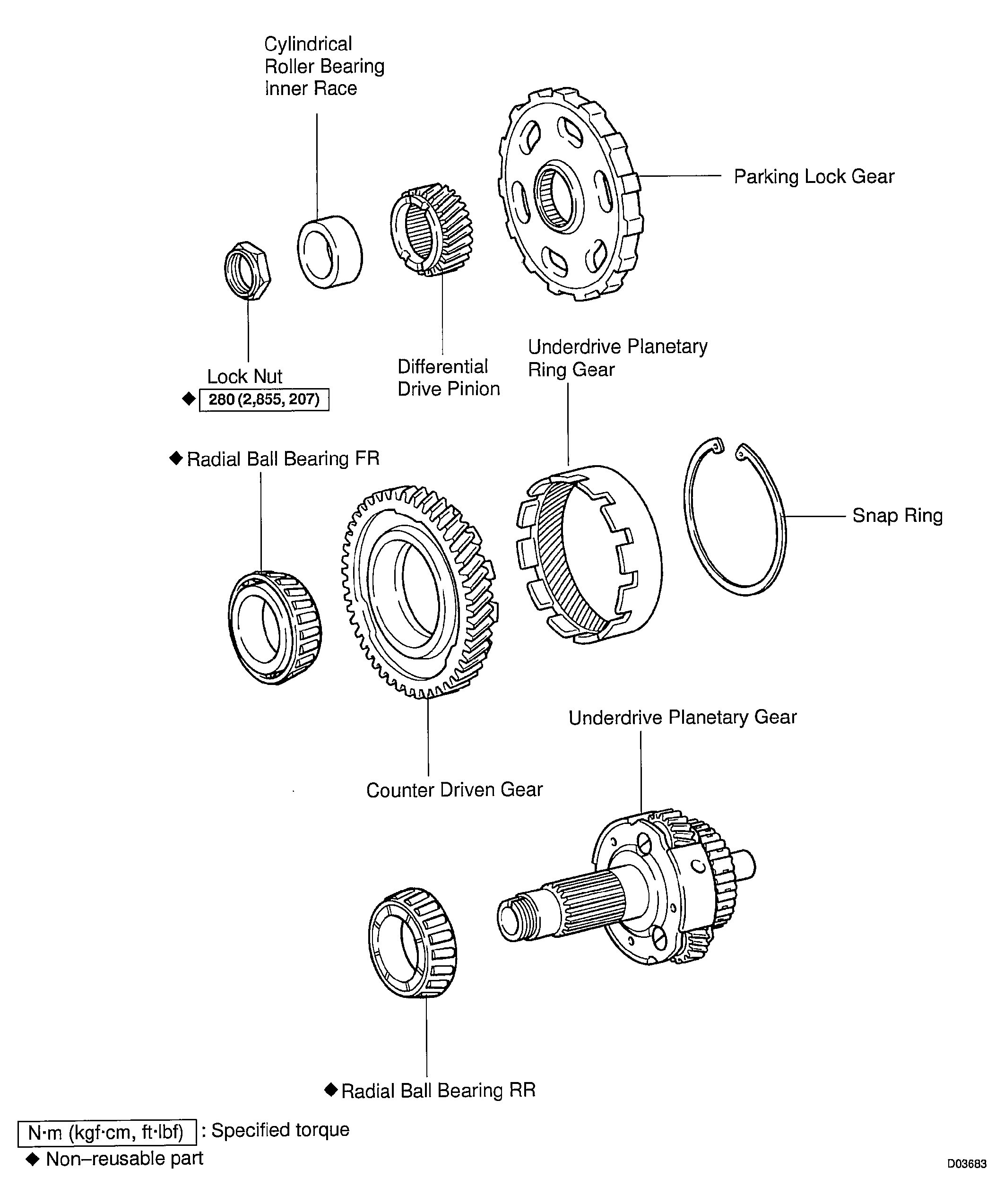

Fig 11: Exploded View Of Automatic Transmission / Transaxle (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

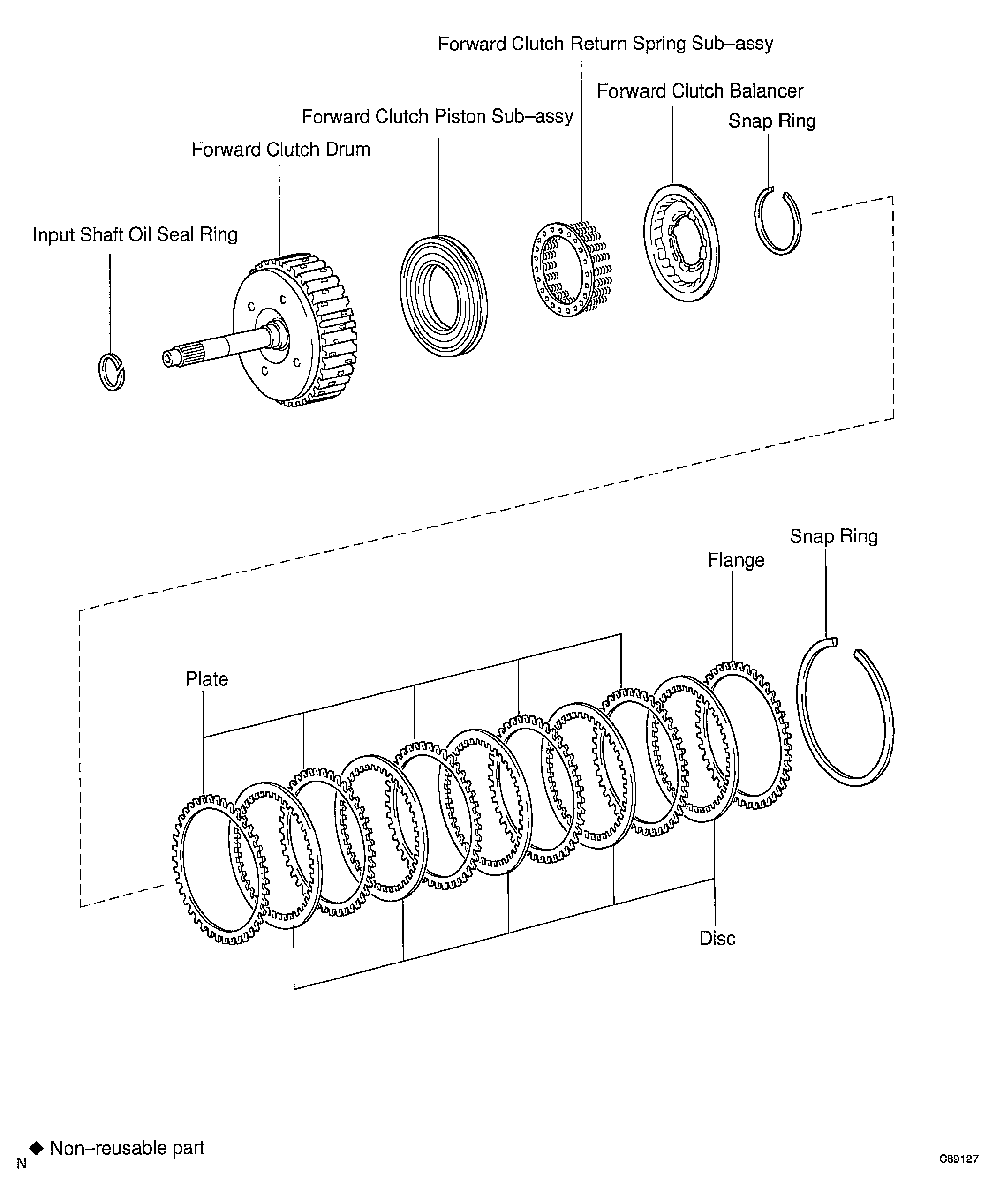

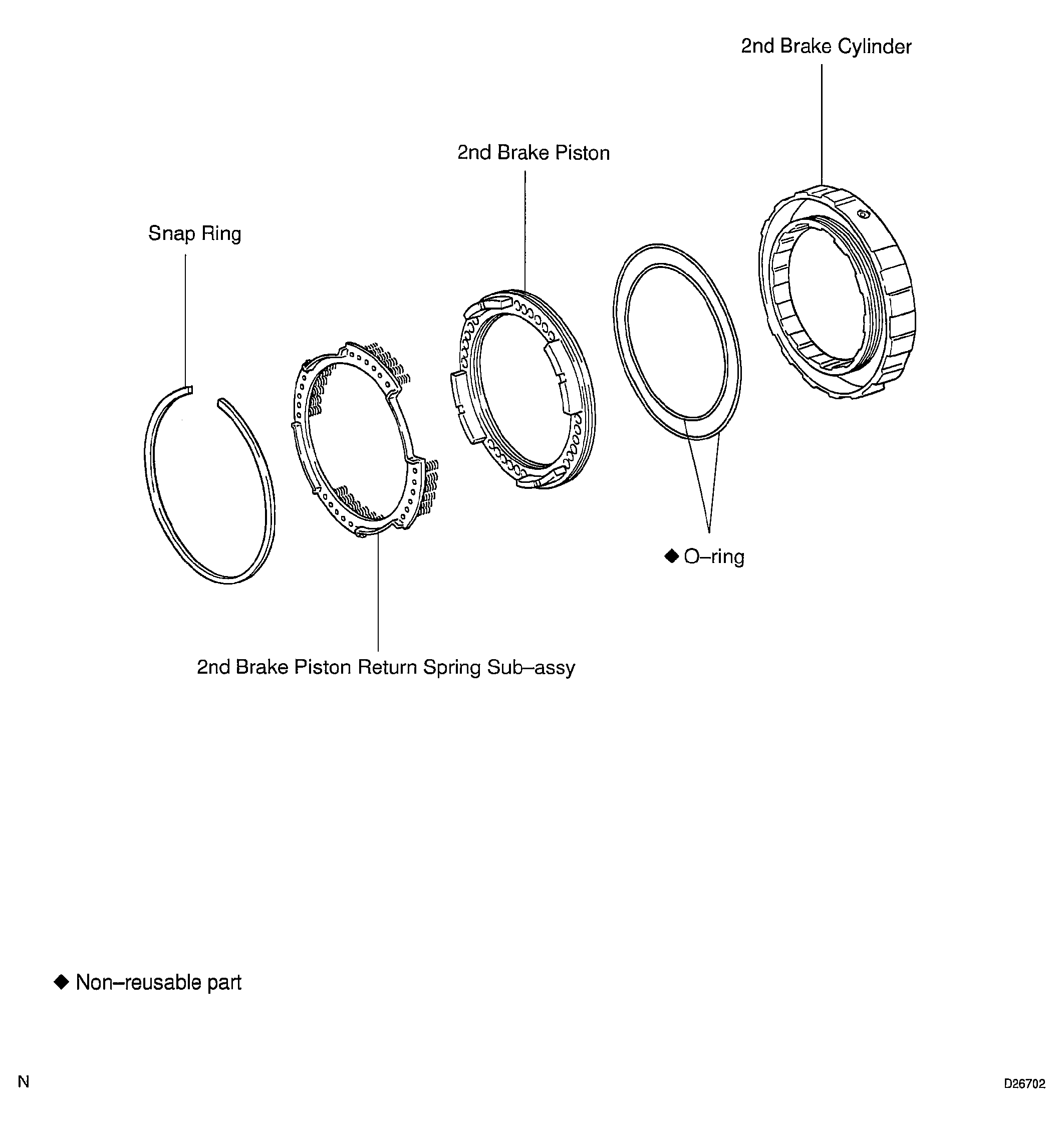

Fig 12: Exploded View Of Automatic Transmission / Transaxle (4 Of 7)

Fig 13: Exploded View Of Automatic Transmission / Transaxle (5 Of 7)

Fig 14: Exploded View Of Automatic Transmission / Transaxle (6 Of 7)

Fig 15: Exploded View Of Automatic Transmission / Transaxle (7 Of 7)

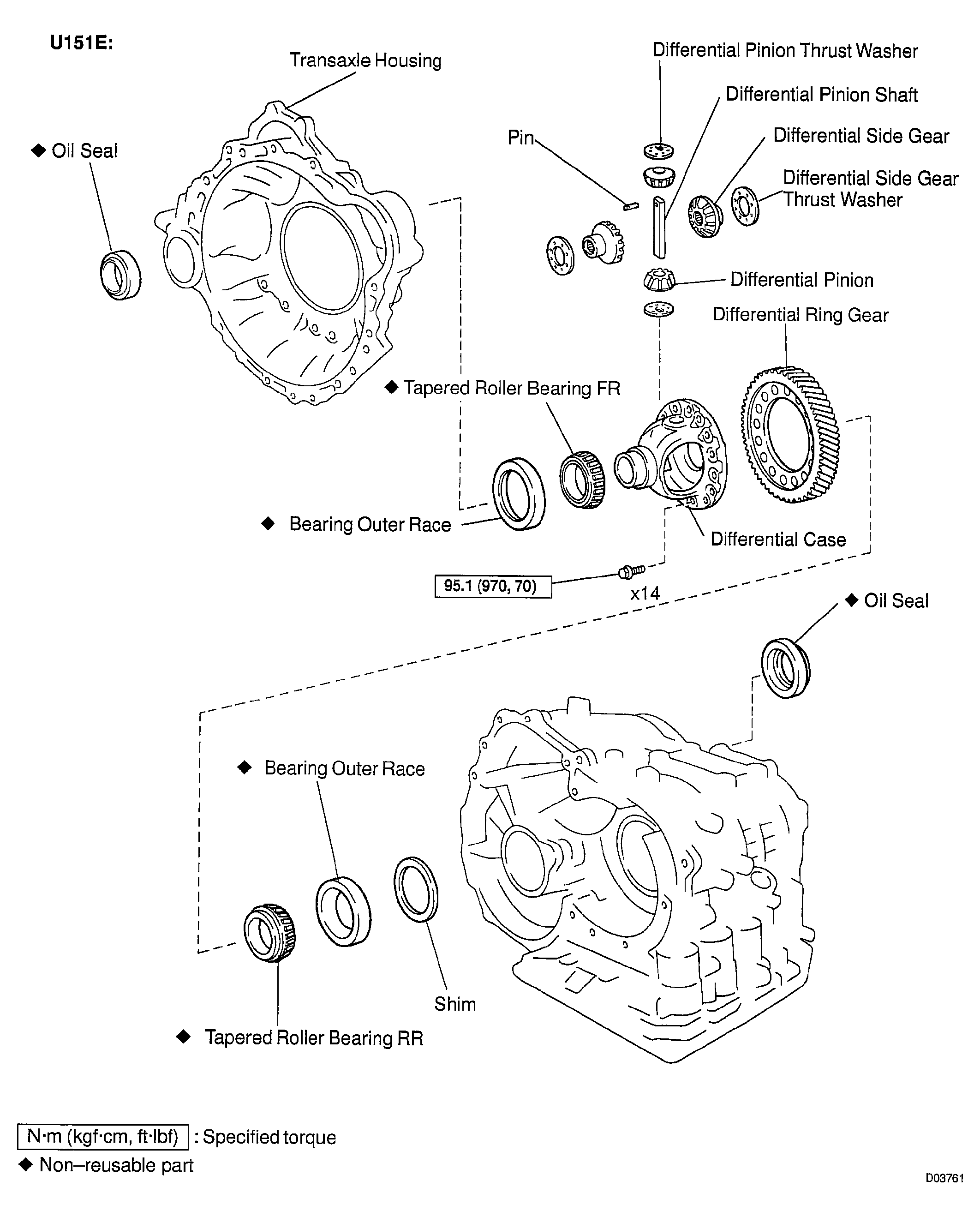

Fig 16: Exploded View Of Automatic Transmission / Transaxle Differential U151E

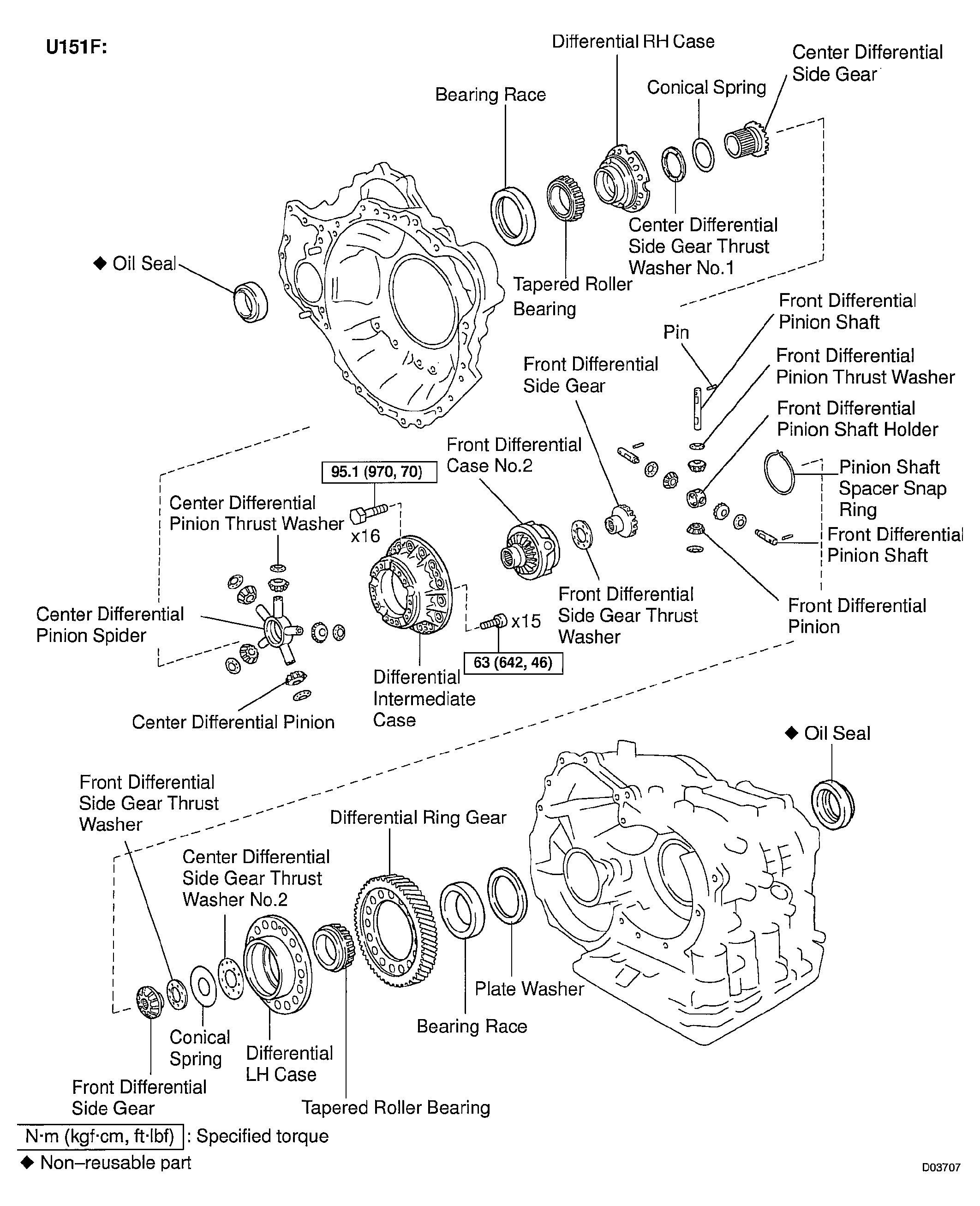

Fig 17: Exploded View Of Automatic Transmission / Transaxle Differential U151F
