Automatic Transaxle ASSY (U151E): Components

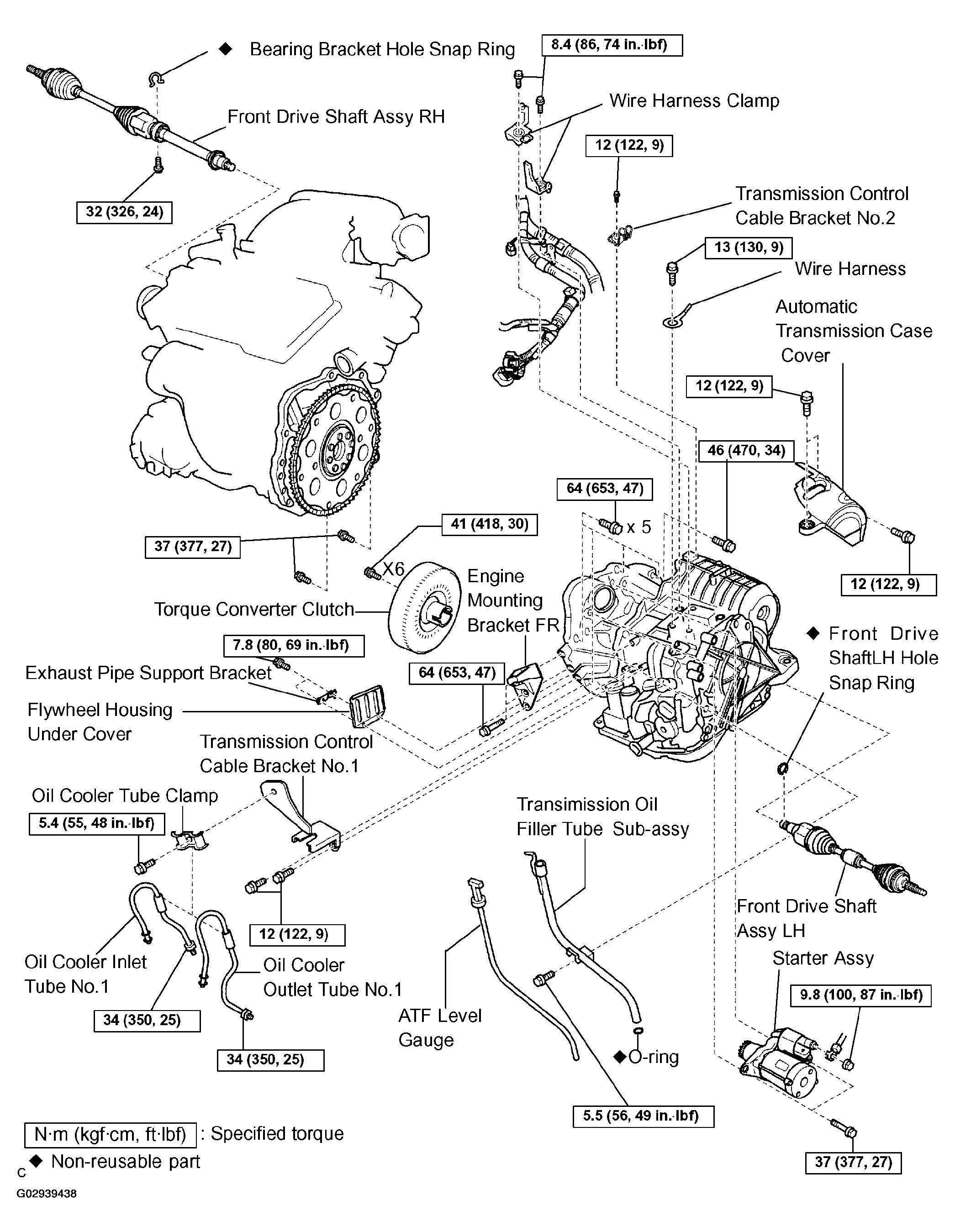

Fig 1: Automatic Transaxle Assembly (U151E) Components Location
G02939438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
