Floor Shift ASSY: Overhaul

1. Disconnect the parking lock cable end from the lever pin of the floor shift assembly.

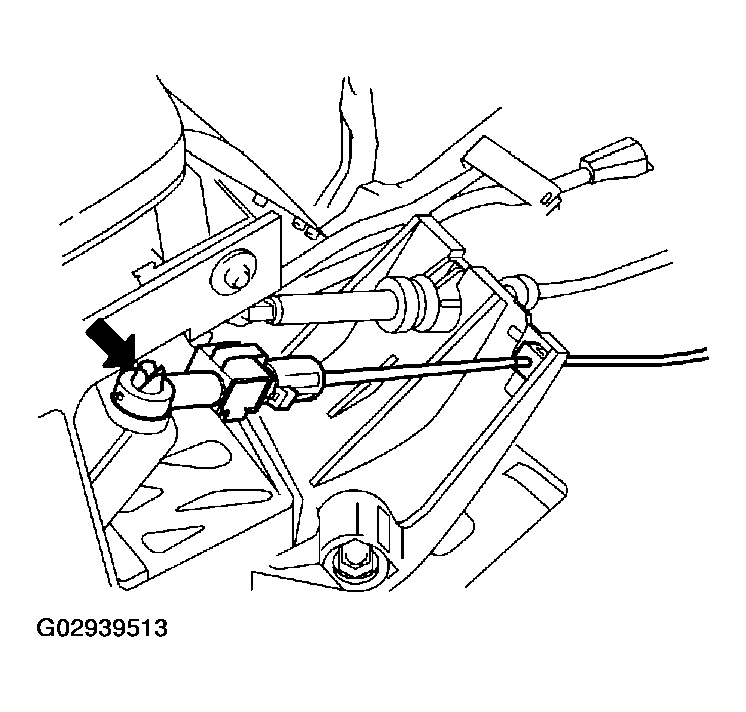

   Fig 1: Disconnecting Parking Lock Cable And From Lever Pin

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disconnect the parking lock cable from the floor shift assembly and clamp.
3. Disconnect the cable clamp.

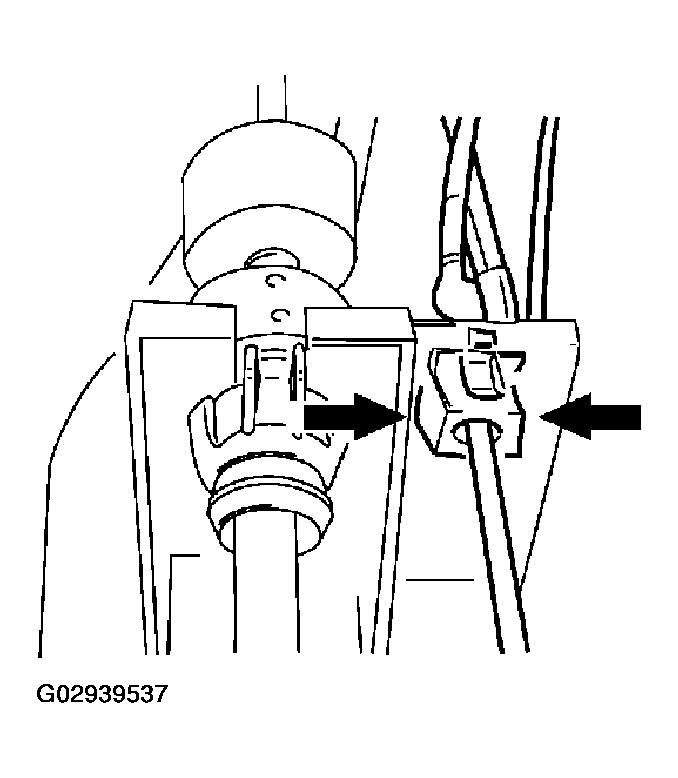

Fig 2: Disconnecting Cable Clamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the floor shift transmission control cable from the rod of the floor shift assy.

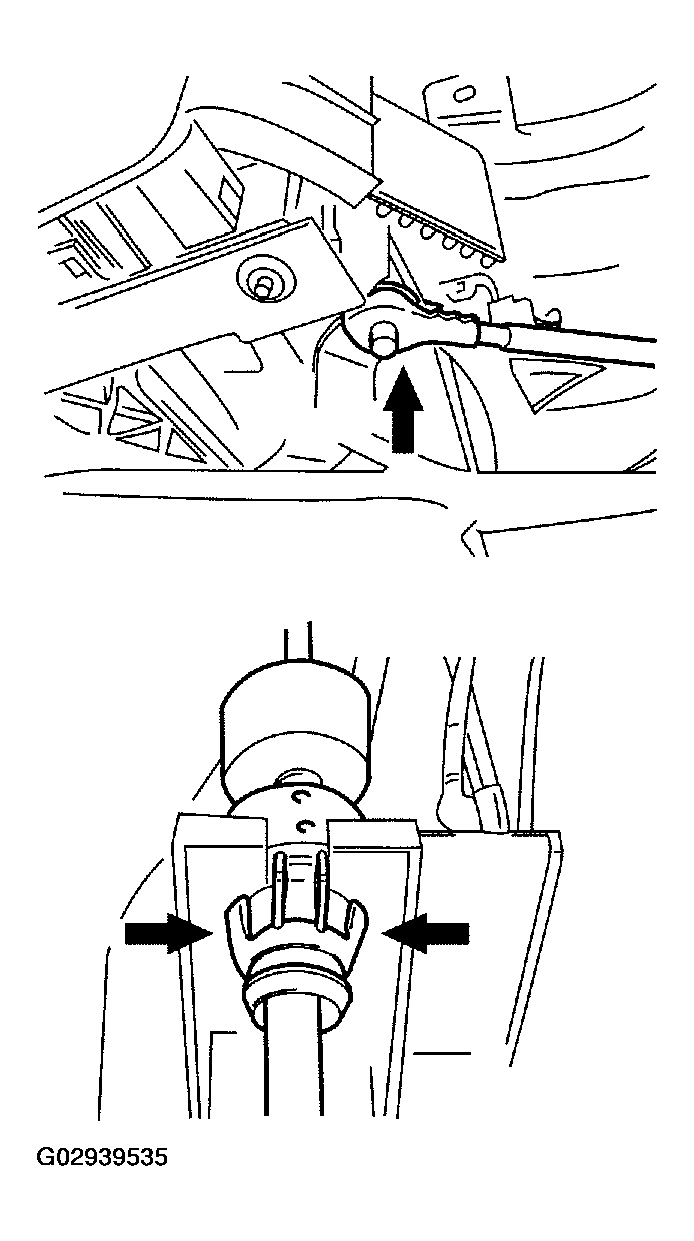

Fig 3: Disconnecting Transmission Control Cable Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the shift lock control computer connector.
2. Disconnect the indicator lamp wire connector.
3. Remove the 4 bolts and transmission floor shift assy.

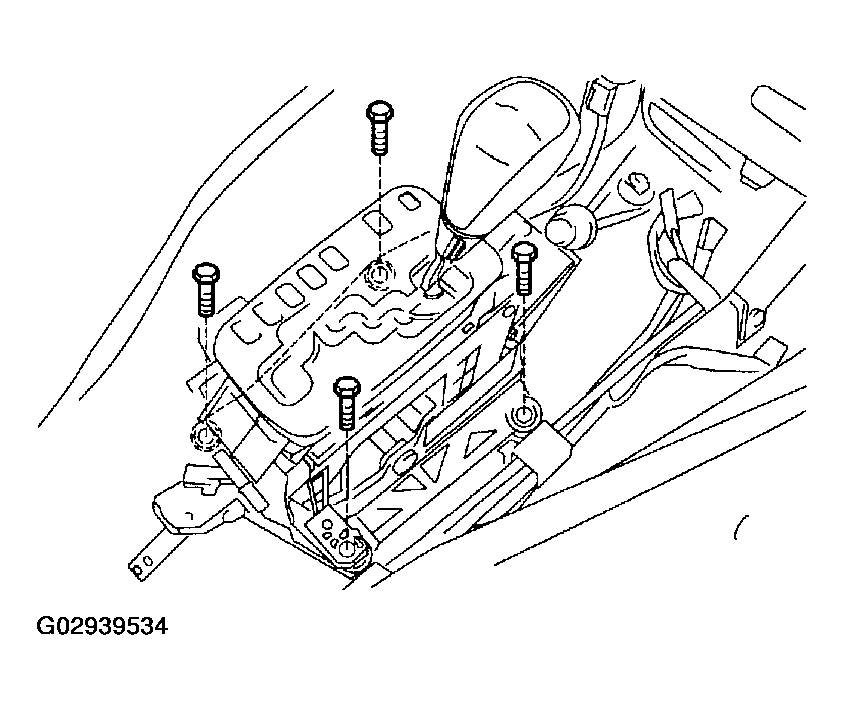

Fig 4: Removing Transmission Floor Shift Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the floor shift lever knob from the shift lever.

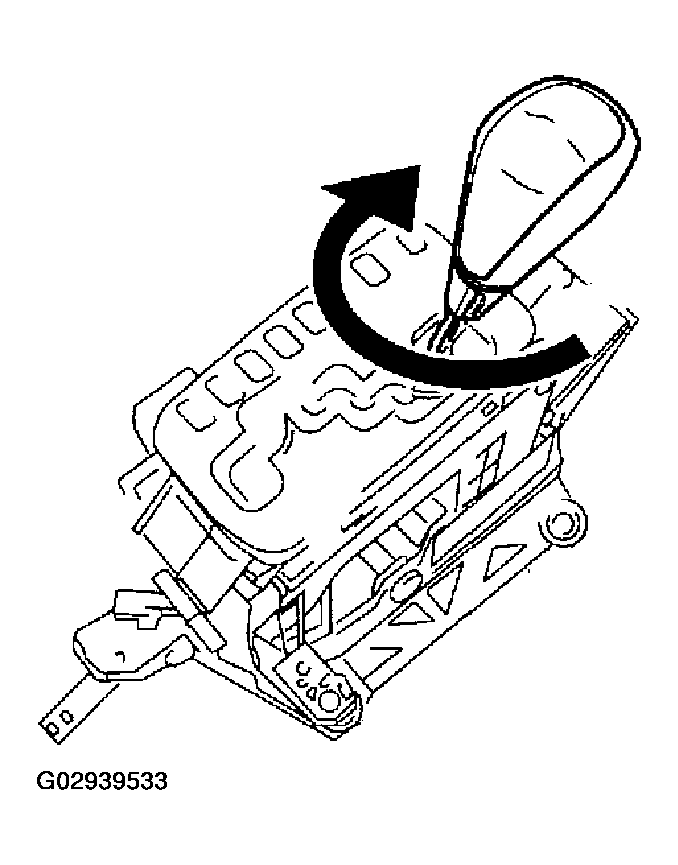

   Fig 5: Removing Floor Shift Lever Knob

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the wire harness from the clamp.

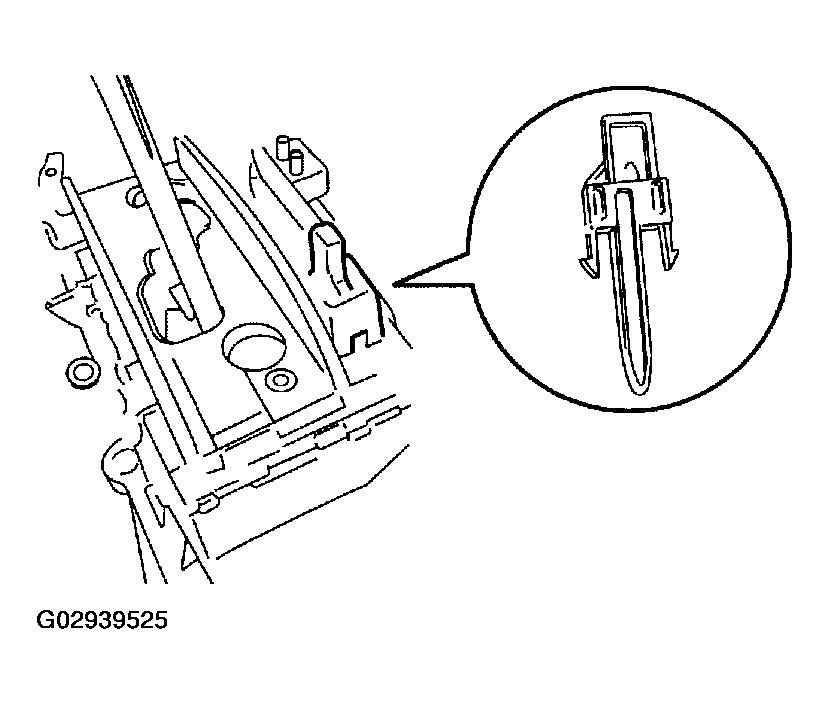

   Fig 6: Disconnecting Wire Harness

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, release the 4 claws and remove the position indicator housing.

Fig 7: Removing Position Indicator Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, release the 4 claws and remove the position indicator light guide.

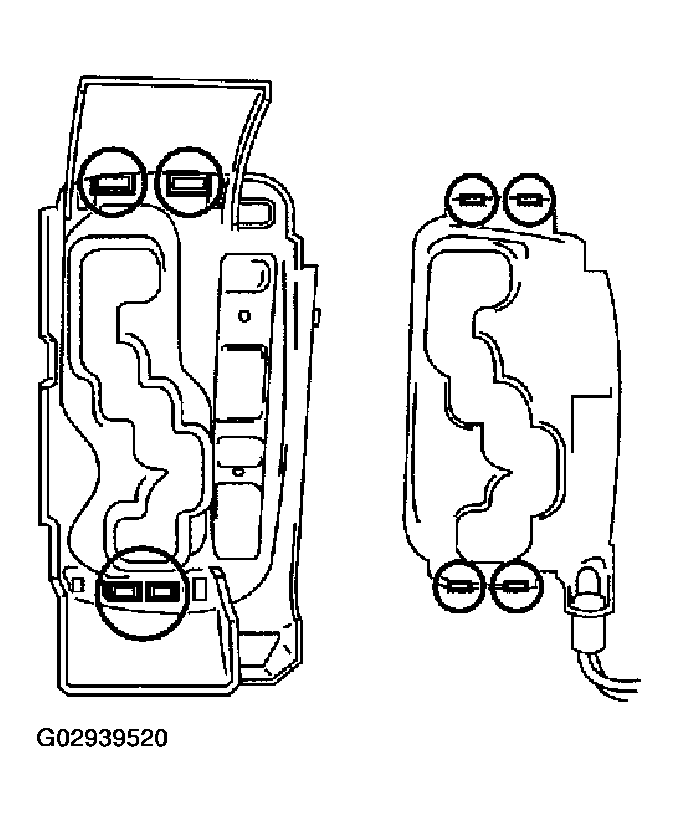

Fig 8: Removing Position Indicator Light Guide

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the indicator lamp wire from the position indicator light guide.

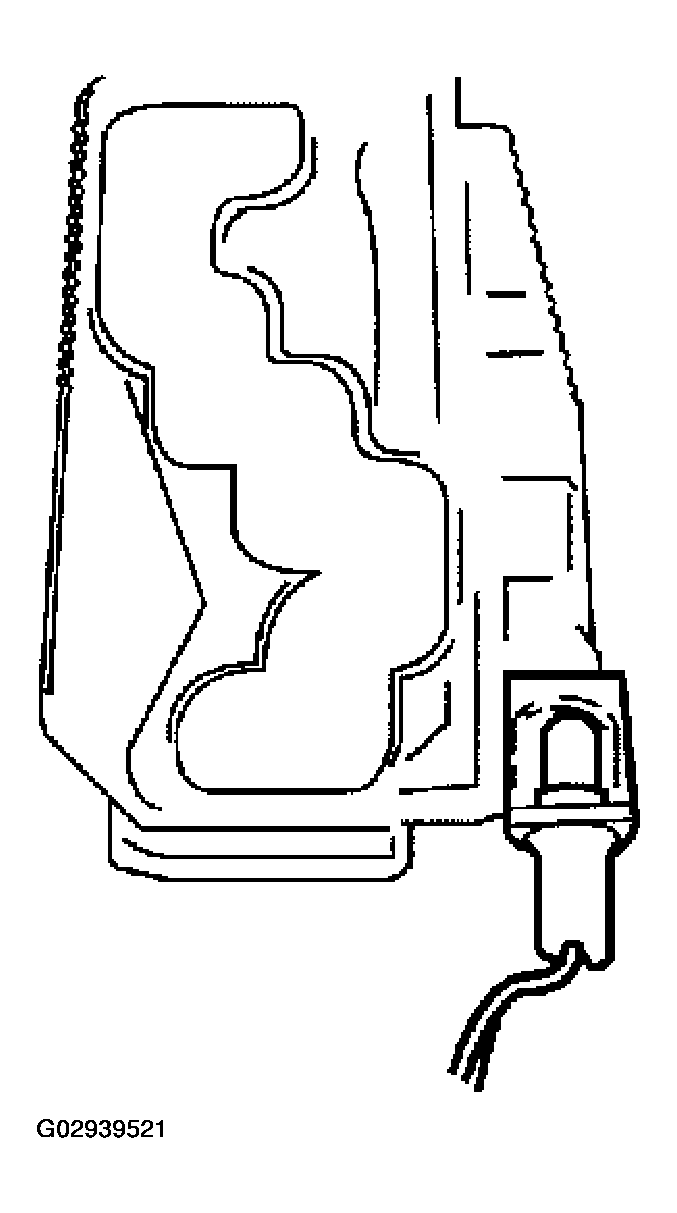

Fig 9: Removing Indicator Lamp Wire

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the floor shift position indicator lamp cap from the floor shift position indicator lamp bulb.

1. Remove the floor shift position indicator lamp bulb from the indicator lamp wire.

1. Using a screwdriver, remove the shift lock release button cover.

Fig 10: Removing Shift Lock Release Button Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the position indicator slide cover from the shift lever.

Fig 11: Removing Position Indicator Slide Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the position indicator slide cover from the position indicator slide cover.

Fig 12: Removing Position Indicator Slide Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. While pressing the 2 claws, remove the shift lock release button and shift lock release spring.

Fig 13: Removing Shift Lock Release Button

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply MP grease to the shift lock release spring and shift lock release button.
2. Install the shift lock release button and shift lock release spring to the shift lever.

Fig 14: Installing Shift Lock Release Button

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the position indicator slide cover to the position indicator slide cover.

Fig 15: Installing Position Indicator Slide Cover (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the position indicator slide cover to the shift lever.

Fig 16: Installing Position Indicator Slide Cover (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the floor shift position indicator lamp bulb to the indicator lamp wire.

1. Install the floor shift position indicator lamp cap to the floor shift position indicator lamp bulb.

1. Install the indicator lamp wire to the position indicator light guide.

Fig 17: Installing Indicator Lamp Wire

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the position indicator light guide to the floor shift position indicator housing.

   HINT:

   Fit the claws securely.

   Fig 18: Installing Position Indicator Light Guide

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the floor shift position indicator housing to the shift lever.

   HINT:

   Fit the claws securely.

   Fig 19: Installing Floor Shift Position Indicator Housing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the shift lock release button cover to the position indicator housing.

Fig 20: Installing Shift Lock Release Button Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the floor shift lever knob to the shift lever.

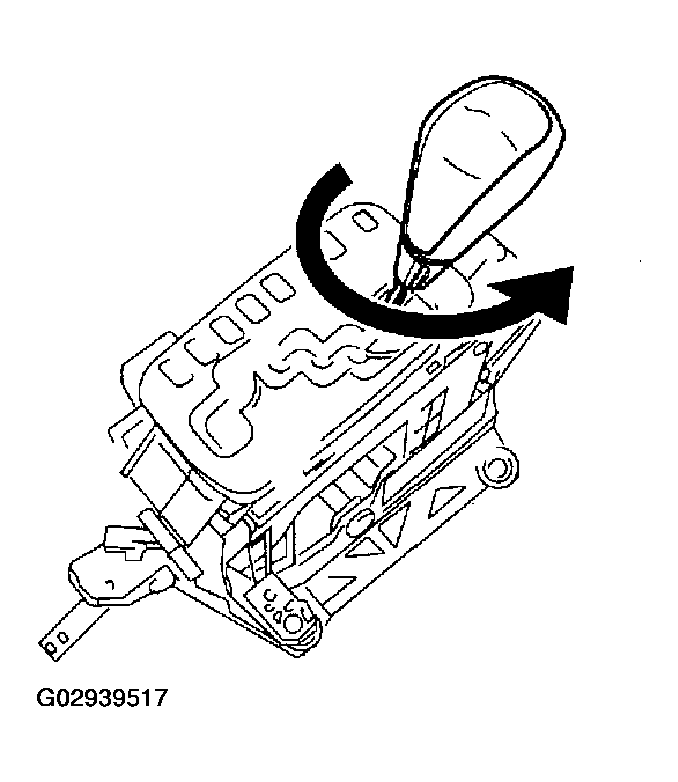

   Fig 21: Installing Shift Lever Knob

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the floor shift assy to the vehicle with the 4 bolts.
   1. Torque: 11.8 N.m (122 kgf.cm, 9 ft.lbf)
2. Connect the shift lock control computer.
3. Connect the indicator lamp wire connector.

Fig 22: Installing Floor Shift Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the floor shift transmission control cable to the shift lever.

HINT:

Install it with the uneven surface facing up.

Fig 23: Installing Transmission Control Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, unlock the claw of the lock key of automatic adjustment part.
   Fig 24: Locating Lock Key Of Automatic Adjustment Part

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Insert the slide cap into the through hole and install.
3. Shift the shift lever to P position and turn the ignition switch to Lock.
   Fig 25: Installing Slide Cap Into Through Hole

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Insert the lever pin into the hole of the parking lock cable.
   Fig 26: Inserting Lever Pin Into Parking Lock Plate Hole

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Lock the lock key.
   Fig 27: Locking Lock Key

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
