Rear Console Box: Disassembly

REMOVE REAR CONSOLE ARMREST ASSEMBLY
1. Remove the 4 screws and armrest.

  Fig 1: Identifying Rear Console Armrest
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE BOX SUB-ASSEMBLY UPPER
1. Remove the console box as shown in the illustration.

  Fig 2: Identifying Console Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
1. Using a screwdriver, detach the clamp and 2 claws.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the light.
REMOVE POWER OUTLET SOCKET ASSEMBLY (See REMOVAL )

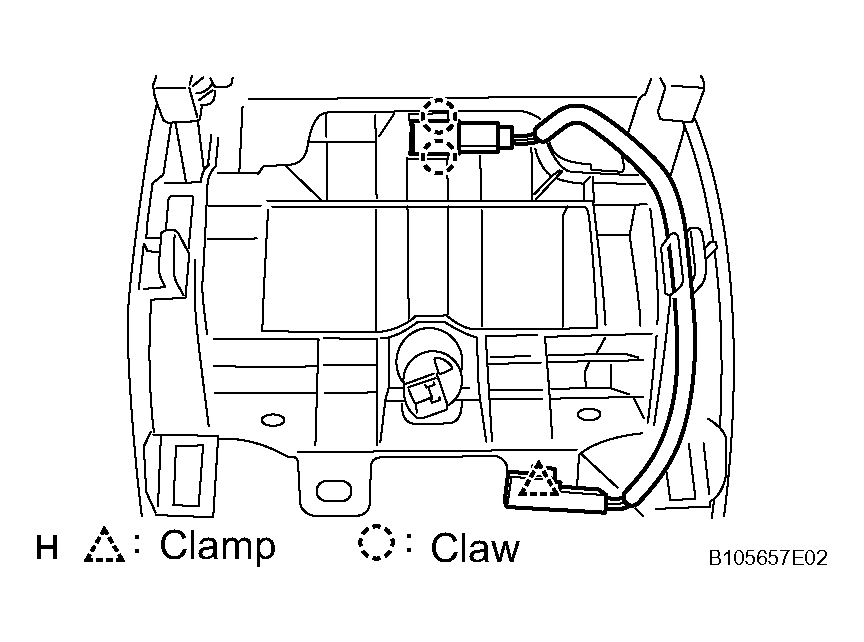

Fig 3: Identifying Console Box Illumination Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POWER POINT SOCKET COVER
1. Using a screwdriver, detach the 2 claws and remove the socket cover.
  HINT:

  Tape the screwdriver tip before use.
REMOVE CONSOLE BOX NO. 5 MOUNTING BRACKET
1. Remove the 2 screws and bracket.

  Fig 4: Identifying Power Point Socket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
