Rear Console Box: Reassembly

INSTALL CONSOLE BOX NO. 5 MOUNTING BRACKET
1. Install the bracket with the 2 screws.
INSTALL POWER POINT SOCKET COVER
1. Attach the 2 claws to install the socket cover.
INSTALL POWER OUTLET SOCKET ASSEMBLY (See INSTALLATION )

Fig 1: Identifying Power Point Socket Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

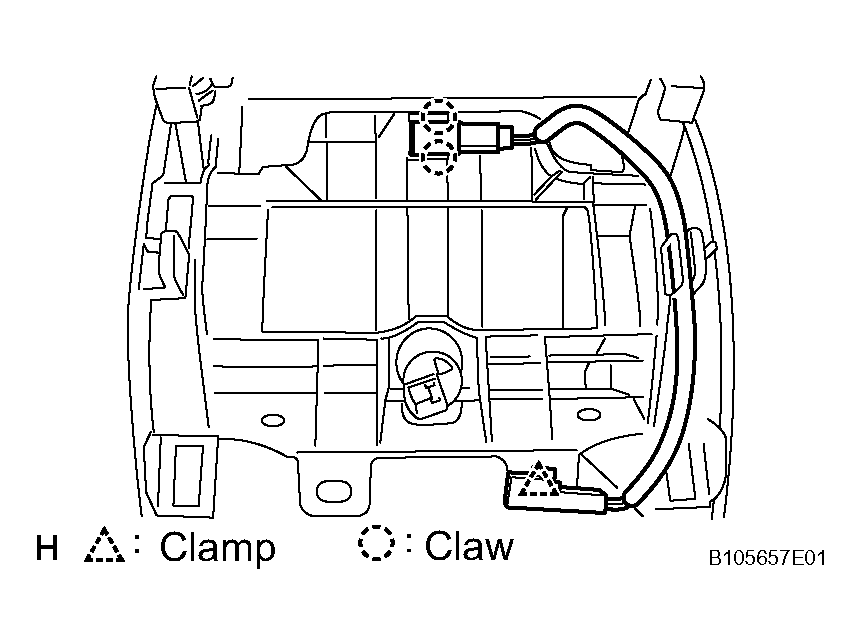

INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
1. Attach the clamp and 2 claws to install the light.

  Fig 2: Identifying Console Box Illumination Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX SUB-ASSEMBLY UPPER
1. Install the console box, as shown in the illustration.

  Fig 3: Identifying Console Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR CONSOLE ARMREST ASSEMBLY
1. Install the armrest with the 4 screws.

  Fig 4: Identifying Armrest With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
