Fuel Pressure Sensor: Installation

  1. INSTALL FUEL PRESSURE SENSOR
    1. Install a new gasket to the fuel pressure sensor.
    2. Using SST, install the fuel pressure sensor to the No. 1 delivery pipe.

      SST 09922-10010

      Torque:

      24 N*m (245 kgf*cm, 18 ft.*lbf) for use with SST

      31 N*m (316 kgf*cm, 23 ft.*lbf) for use without SST

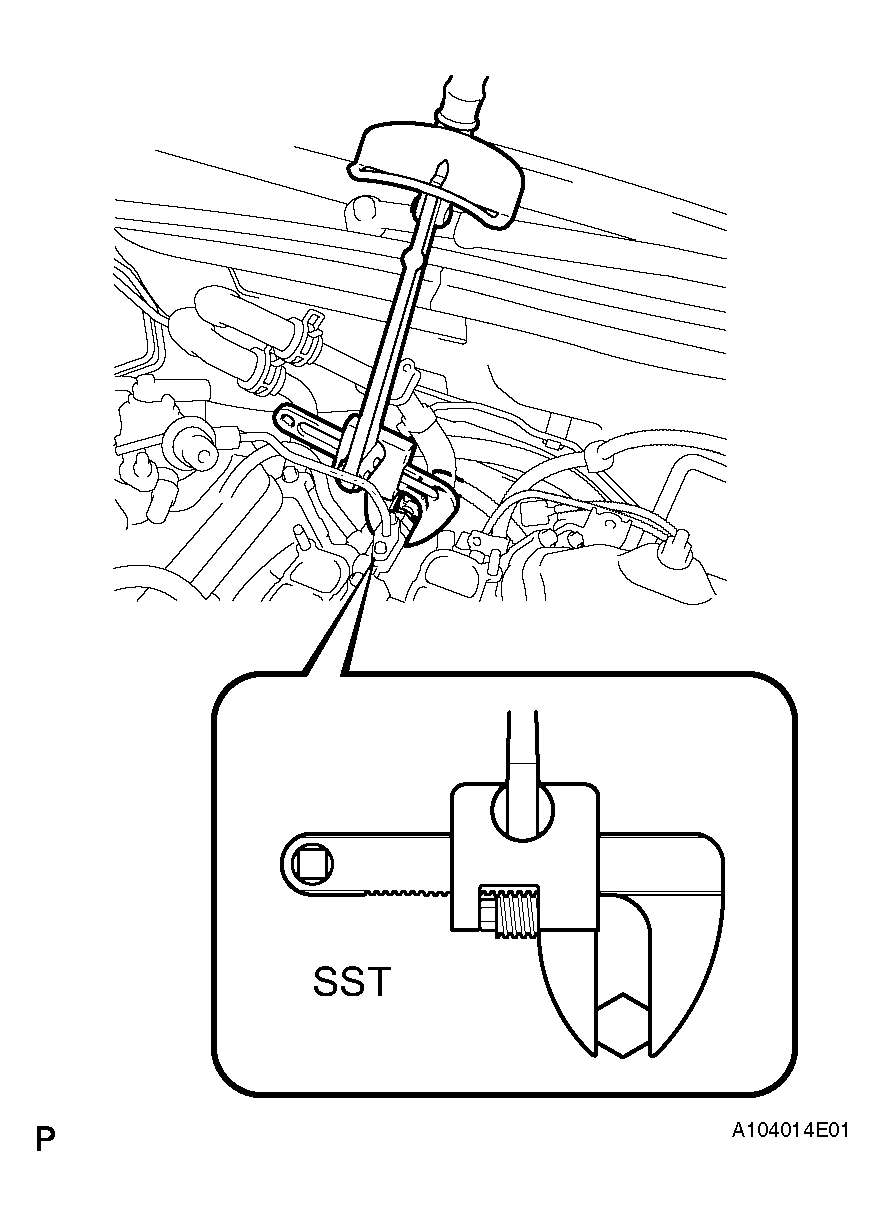

      Fig 1: Identifying New Gasket To Fuel Pressure Sensor
      G04018673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector with the clamp.
  2. INSTALL NO. 1 FUEL PIPE (see   9  )
  3. INSTALL INTAKE MANIFOLD (see   11  )
  4. INSTALL INTAKE AIR SURGE TANK (see   12  )
  5. CONNECT FUEL MAIN TUBE (see   13  )
  6. CONNECT VENTILATION HOSE (see   14  )
  7. CONNECT UNION TO CHECK VALVE HOSE (see   15  )
  8. INSTALL ENGINE REAR COVER (see   16  )
  9. CONNECT HEATER WATER OUTLET HOSE (see   17  )
  10. CONNECT HEATER WATER INLET HOSE (see   18  )
  11. CONNECT WATER BYPASS HOSE (See  ON-VEHICLE INSPECTION  )
  12. CONNECT COLD START INJECTOR (see  REMOVAL   )
  13. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (See  INSTALLATION  )
  14. CONNECT NO. 2 VENTILATION HOSE (See  INSTALLATION  )
  15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  16. ADD ENGINE COOLANT (See  ON-VEHICLE INSPECTION  )
  17. CHECK FOR ENGINE COOLANT LEAKAGE (See  ON-VEHICLE INSPECTION  )
  18. CHECK FOR FUEL LEAKAGE
    1. Start the engine, and check that there are no fuel leaks after performing maintenance anywhere on the system.
  19. CHECK FOR OIL LEAKAGE
    1. Start the engine, and check that there are no oil leaks after performing maintenance.
  20. INSTALL V-BANK COVER (See  INSTALLATION  )
  21. INSTALL ENGINE ROOM SIDE COVER RH (See  INSTALLATION  )
  22. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  23. INSTALL ENGINE UNDER COVER (See  INSTALLATION  )

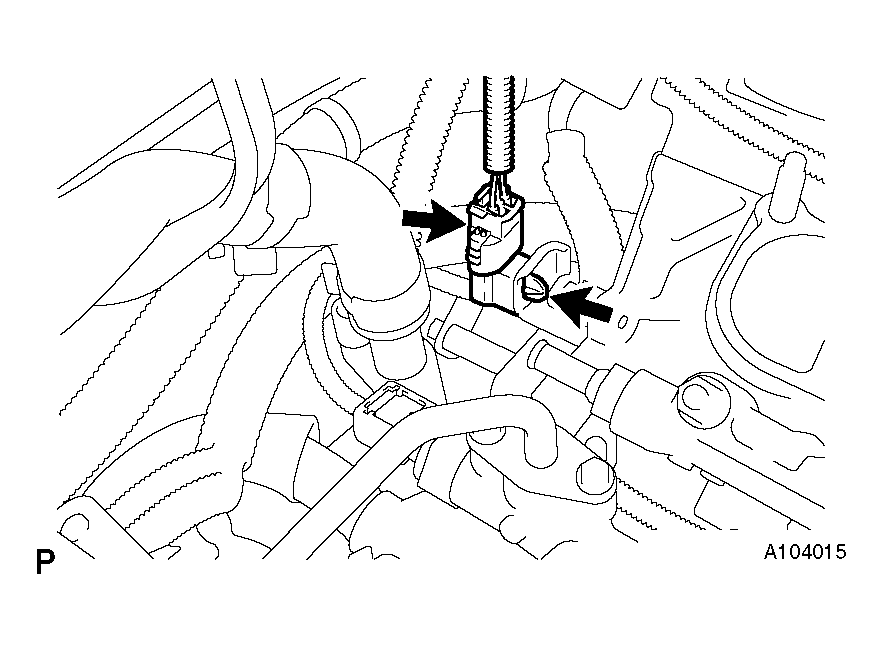

    Fig 2: Identifying Connector With Clamp
    G04018674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  25. WARM UP ENGINE
    1. After the engine is warmed up, check that the maintained parts operate normally.
