System Diagram

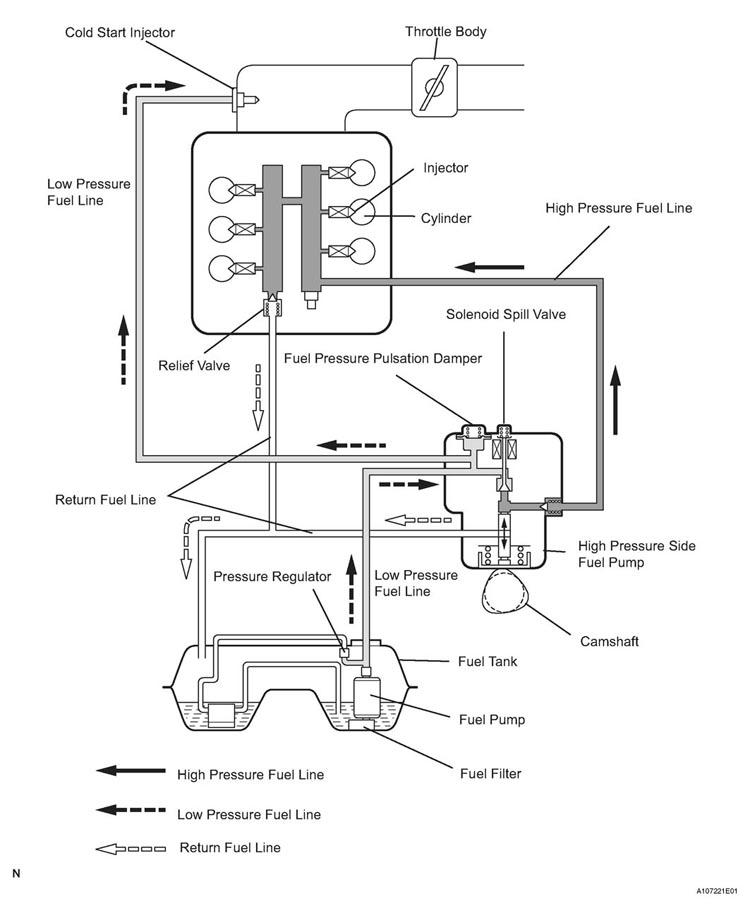

FUEL FLOW DIAGRAM

Fig 1: Fuel Flow System - Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

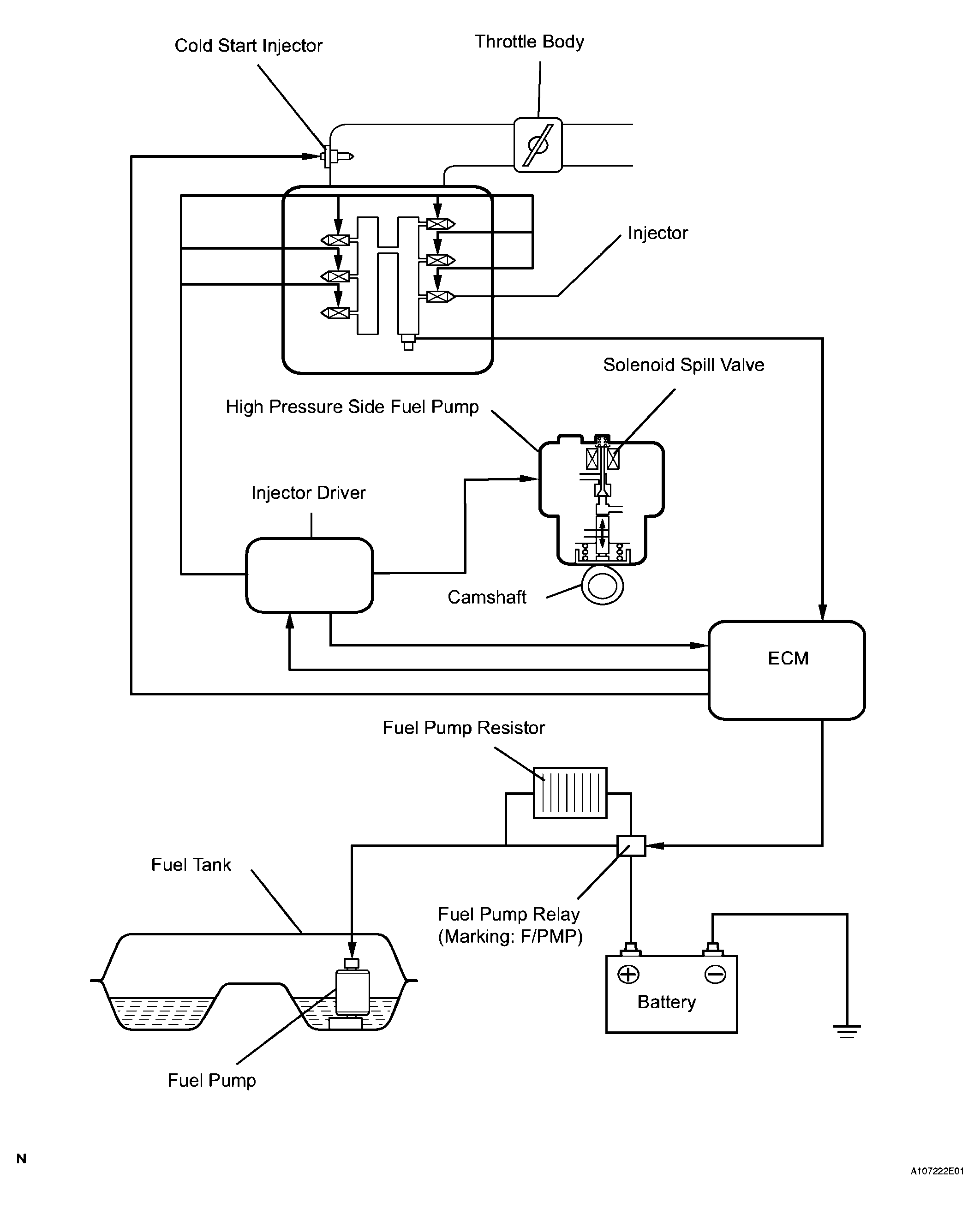

ELECTRICAL CONTROL DIAGRAM

Fig 2: Electrical Control - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

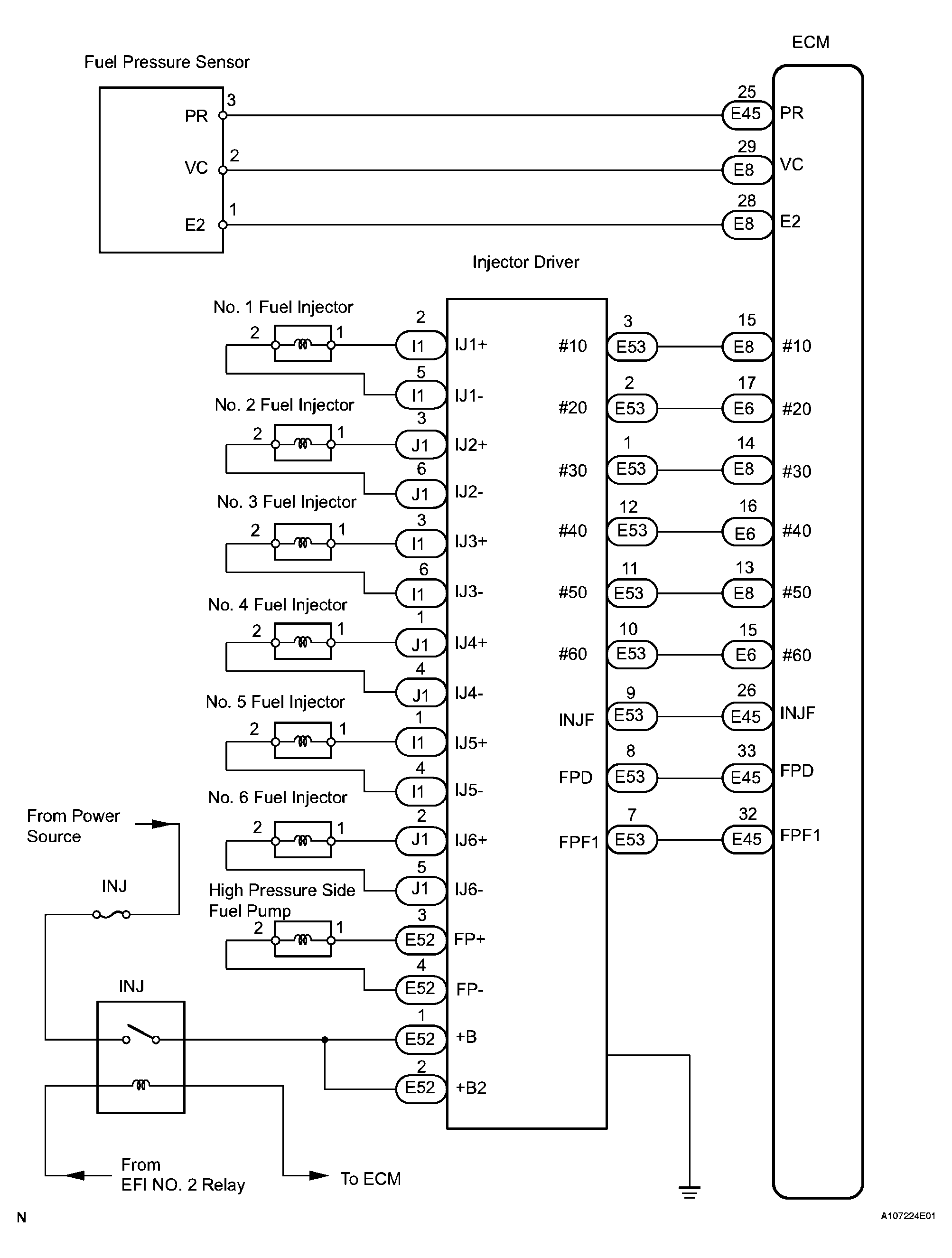

HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

Fig 3: High Pressure Side Fuel System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

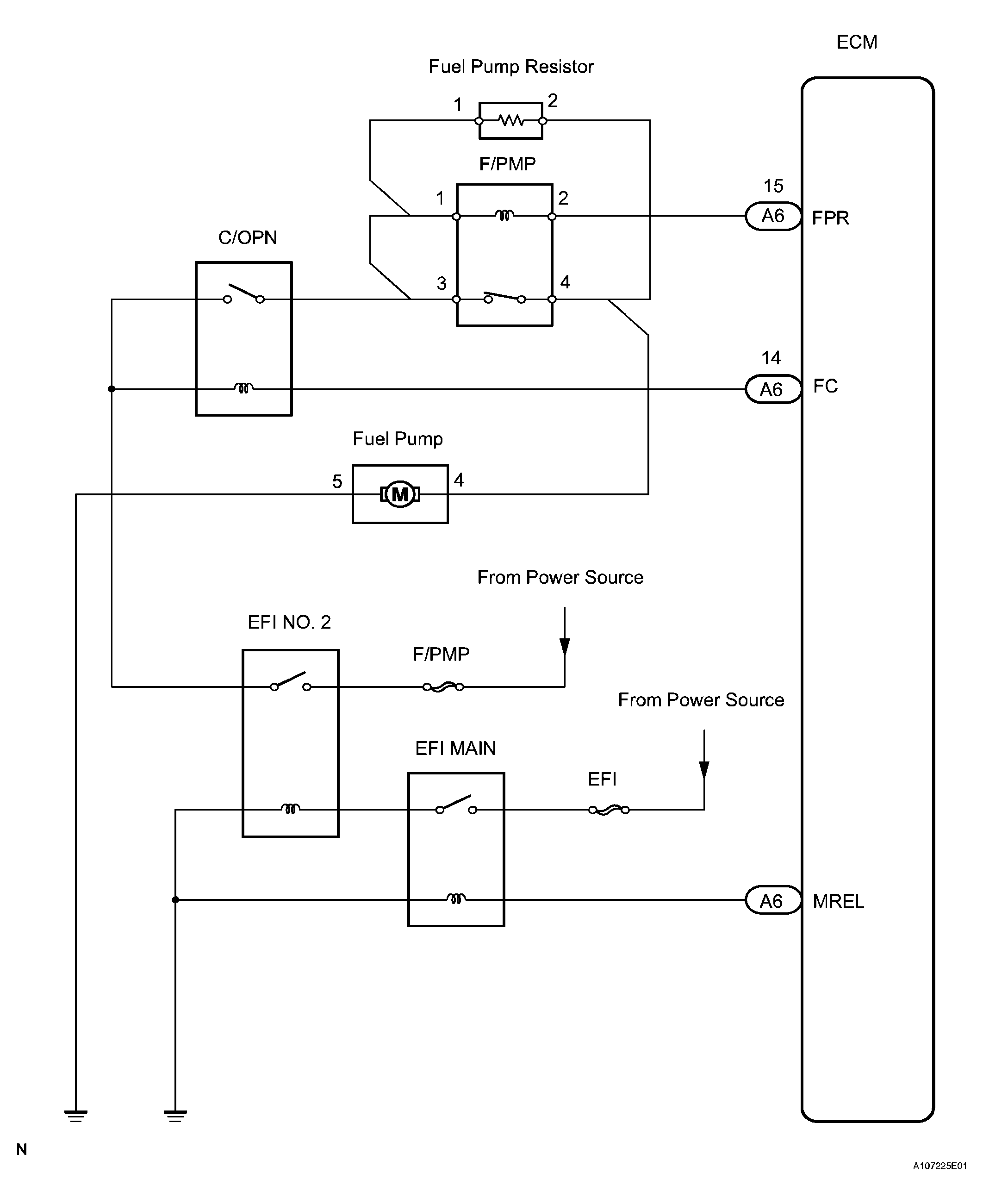

LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

Fig 4: Low Pressure Side Fuel System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COLD START INJECTOR CIRCUIT DESCRIPTION
1. The cold start injector is attached to the intake air surge tank. The cold start injector is designed to improve the ability of the engine to perform a cold start. It operates when the engine coolant temperature is -12°C (10°F) or less, the engine speed is 400 RPM or less, and the starter signal is on.
