Accelerator Pedal: Components

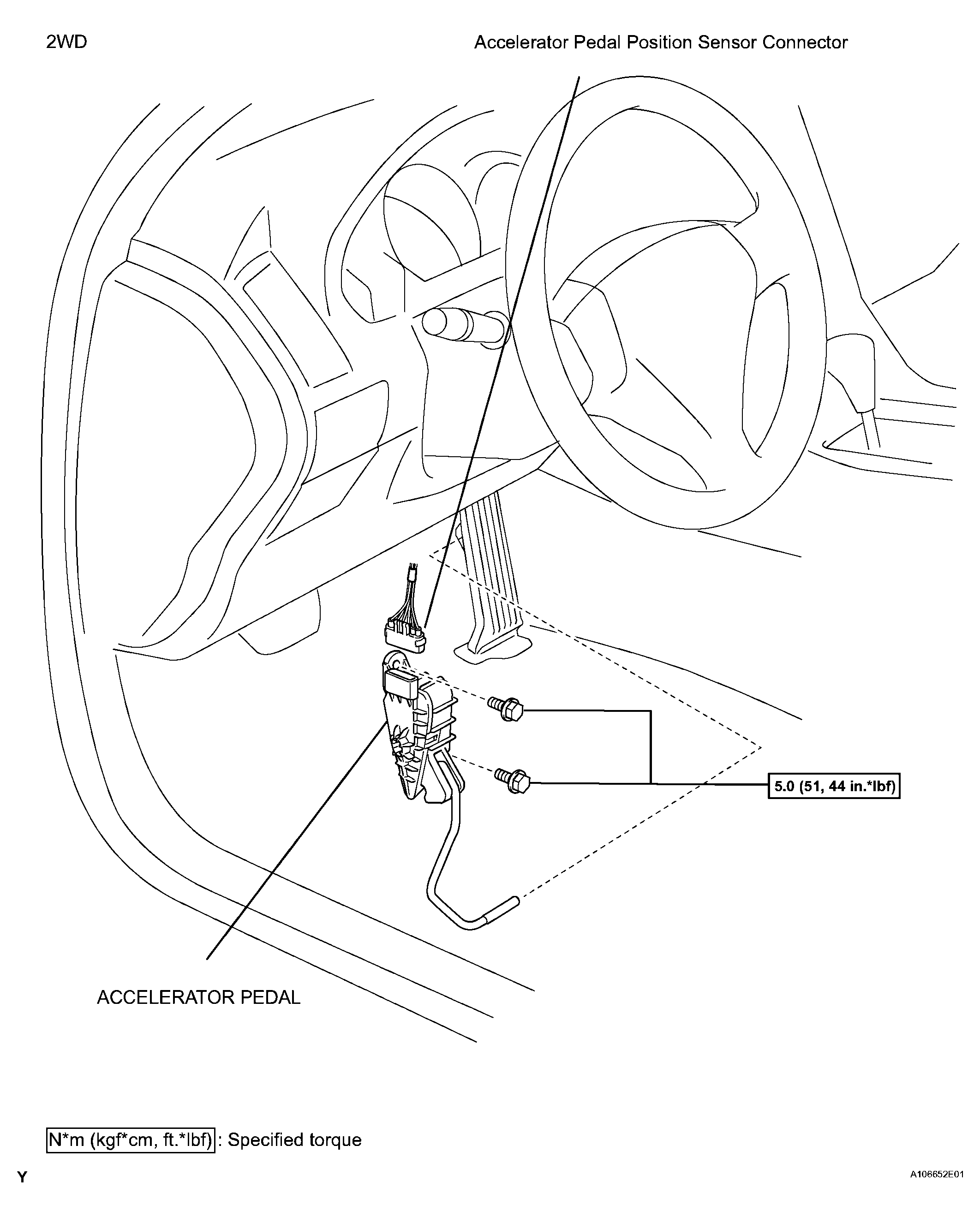

Fig 1: Accelerator Pedal And APP Sensor Connector With Torque Specifications (2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

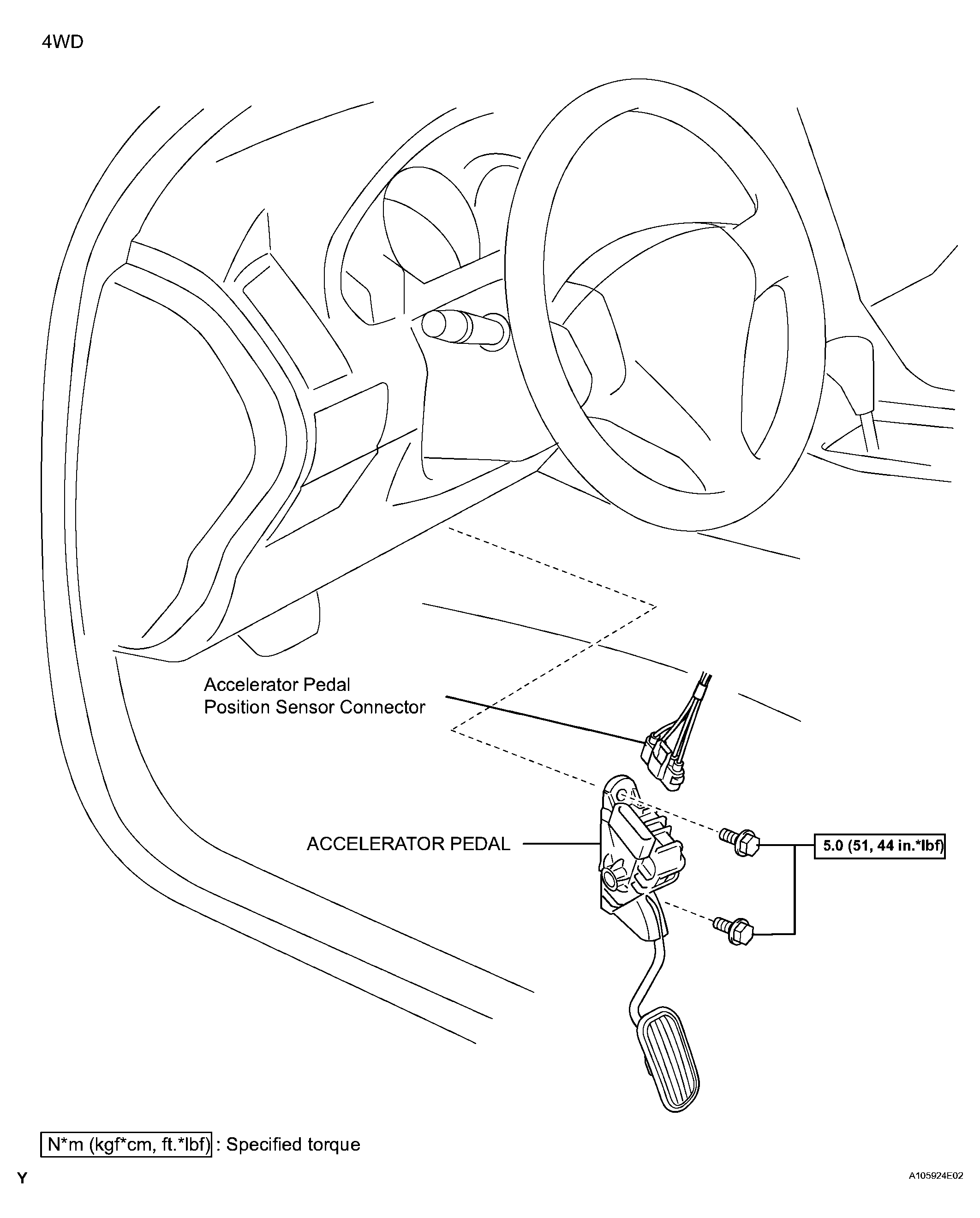

Fig 2: Accelerator Pedal And APP Sensor Connector With Torque Specifications (4WD)
