Engine Control System (3GR-FSE) - System And Circuit Testing, On-Vehicle Inspection, Removal, Inspection And Installation
›
Fuel Pump Relay
›
Components
Fuel Pump Relay: Components

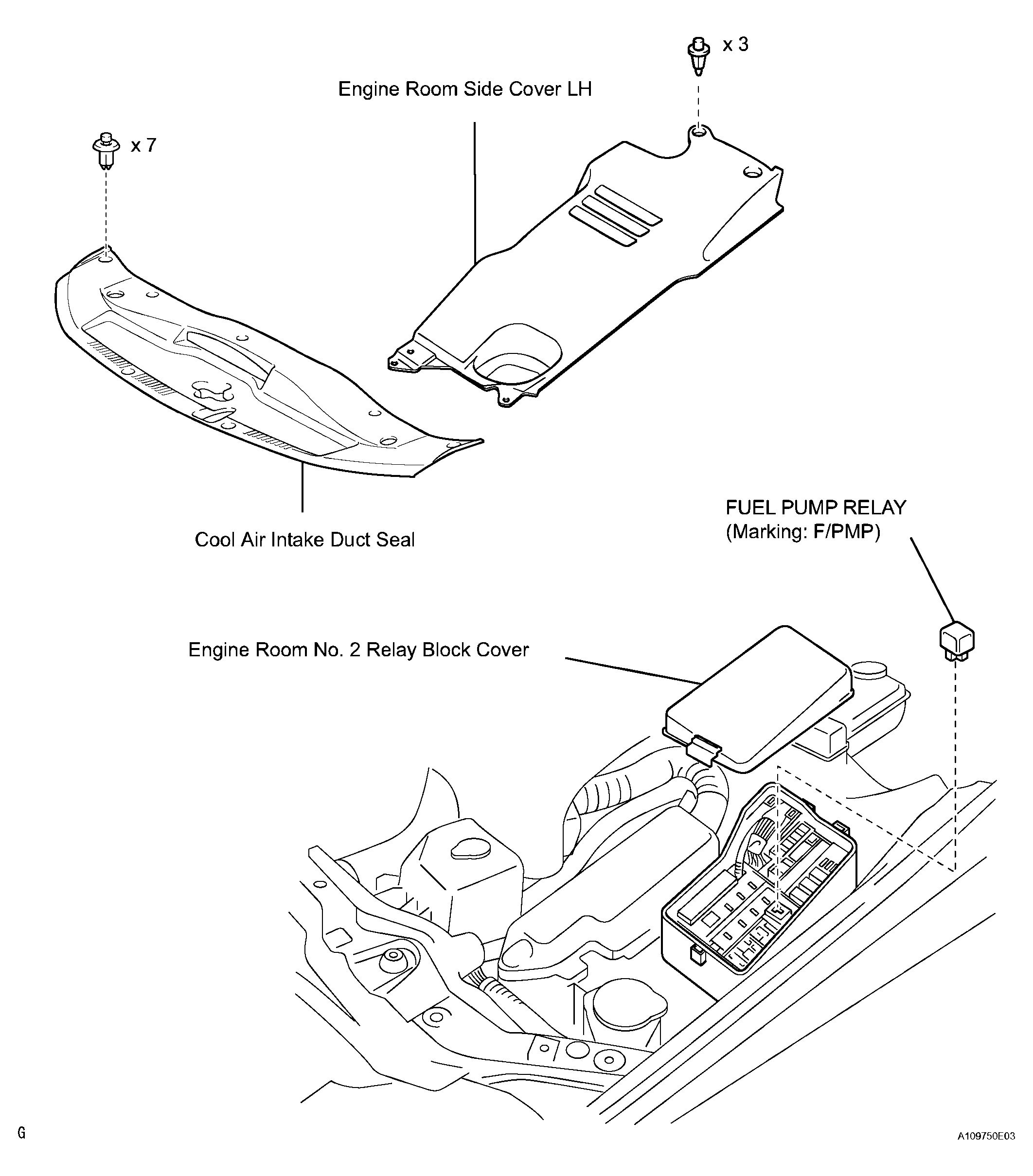

Fig 1: Identifying Fuel Pump Relay Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
