Knock Sensor: Components

Fig 1: Knock Sensor Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Knock Sensor Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Knock Sensor Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

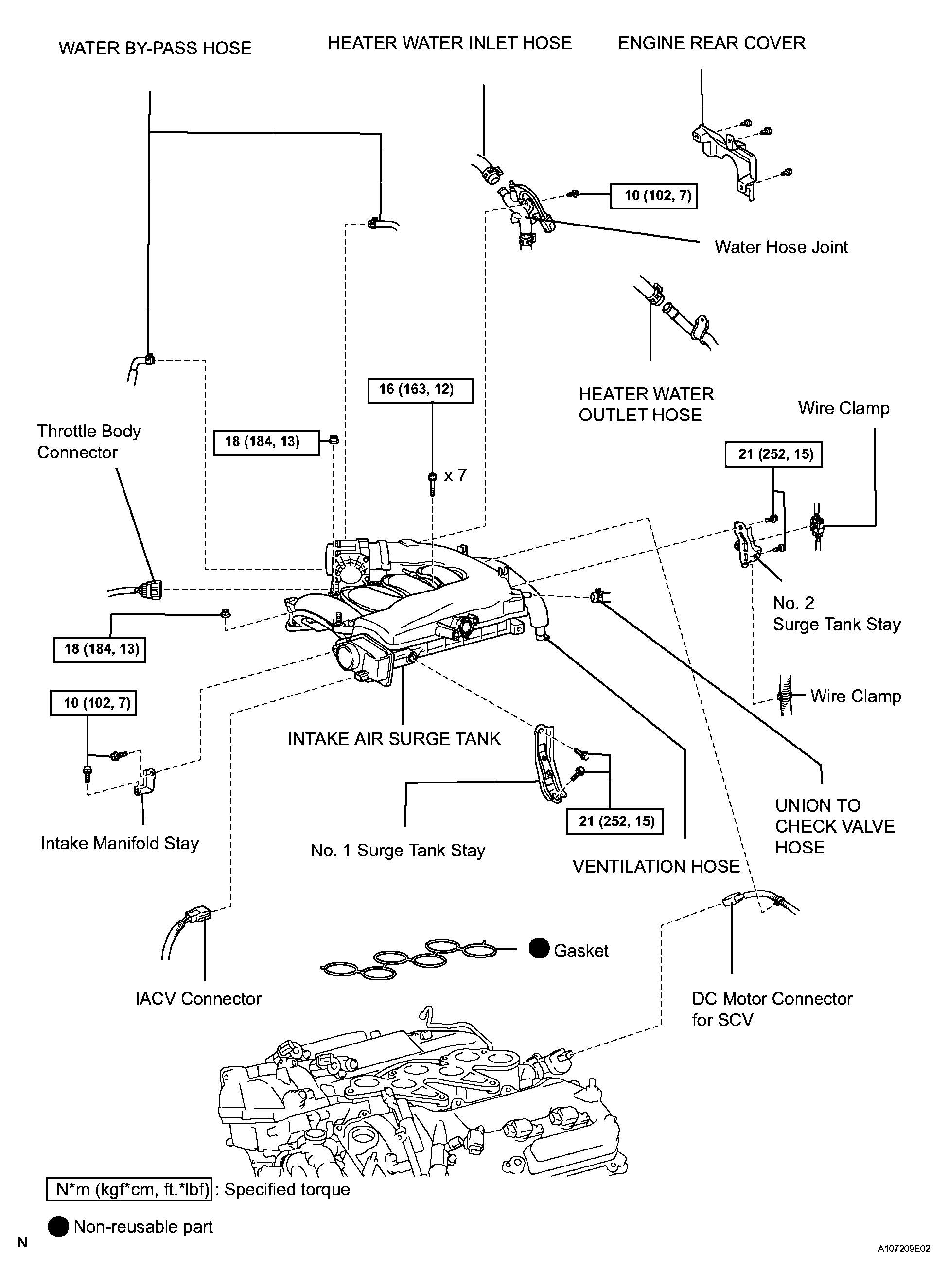

Fig 4: Knock Sensor Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

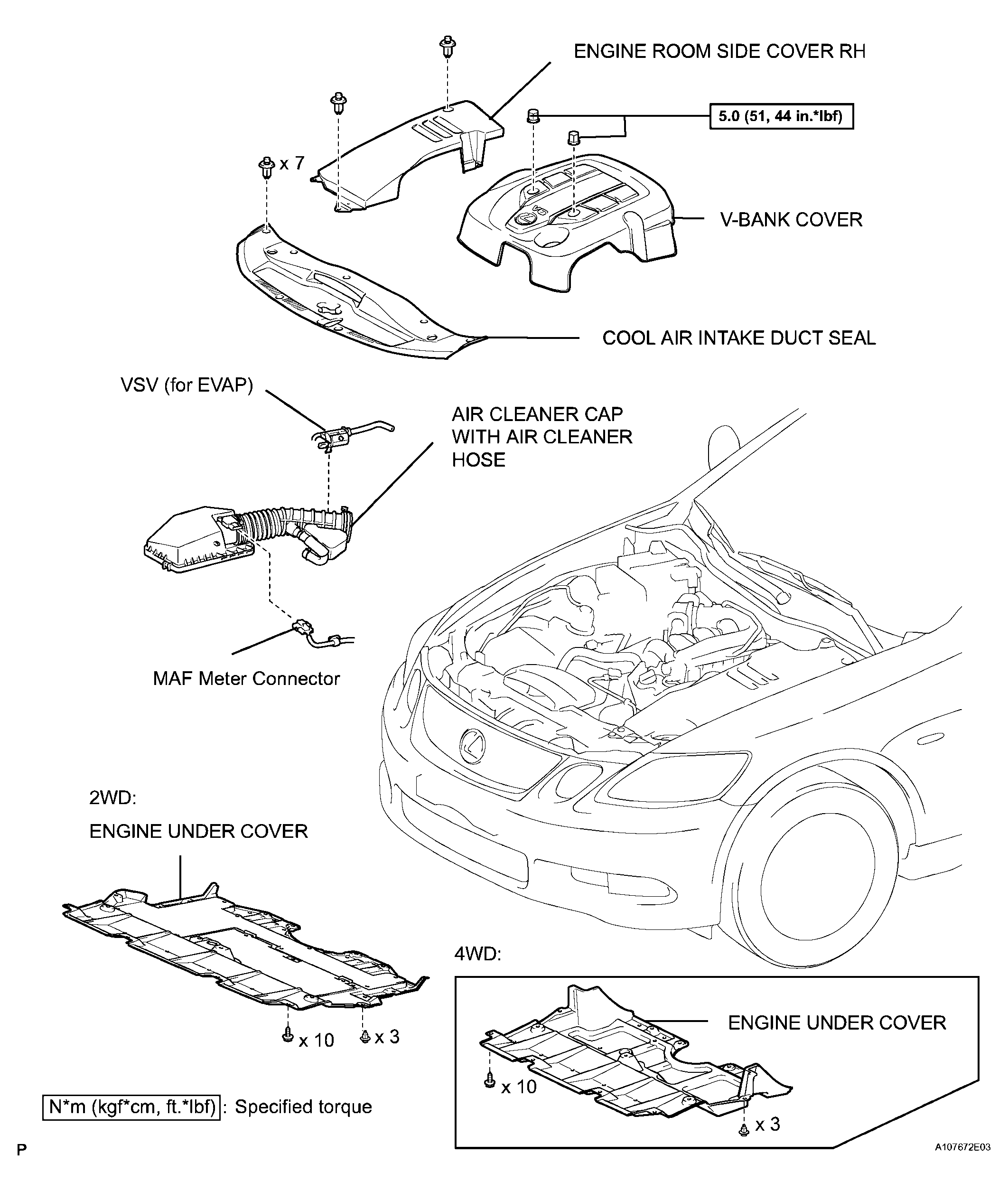

Fig 5: Knock Sensor Replacement Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

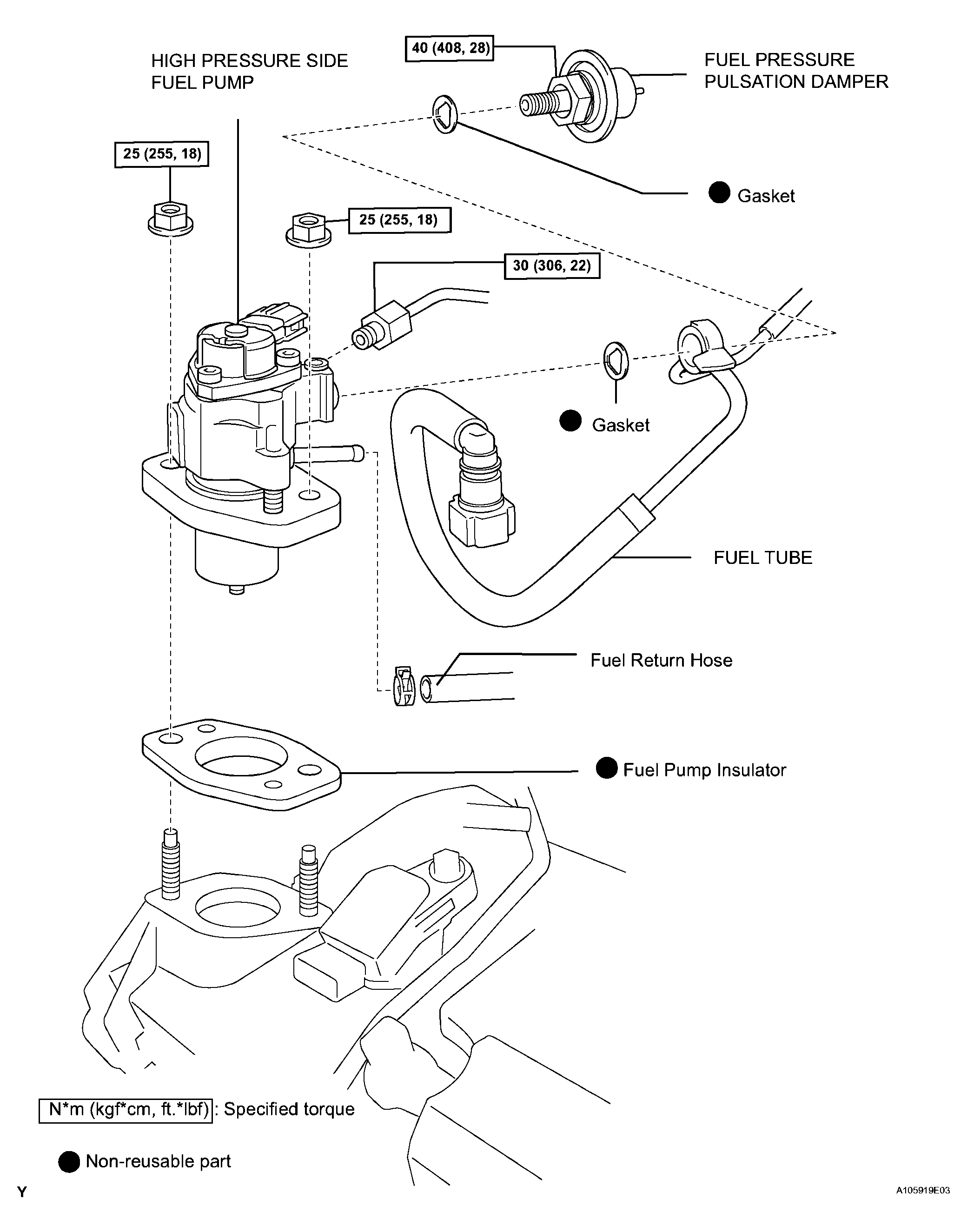

Fig 6: Knock Sensor Replacement Components With Torque Specifications (6 Of 8)

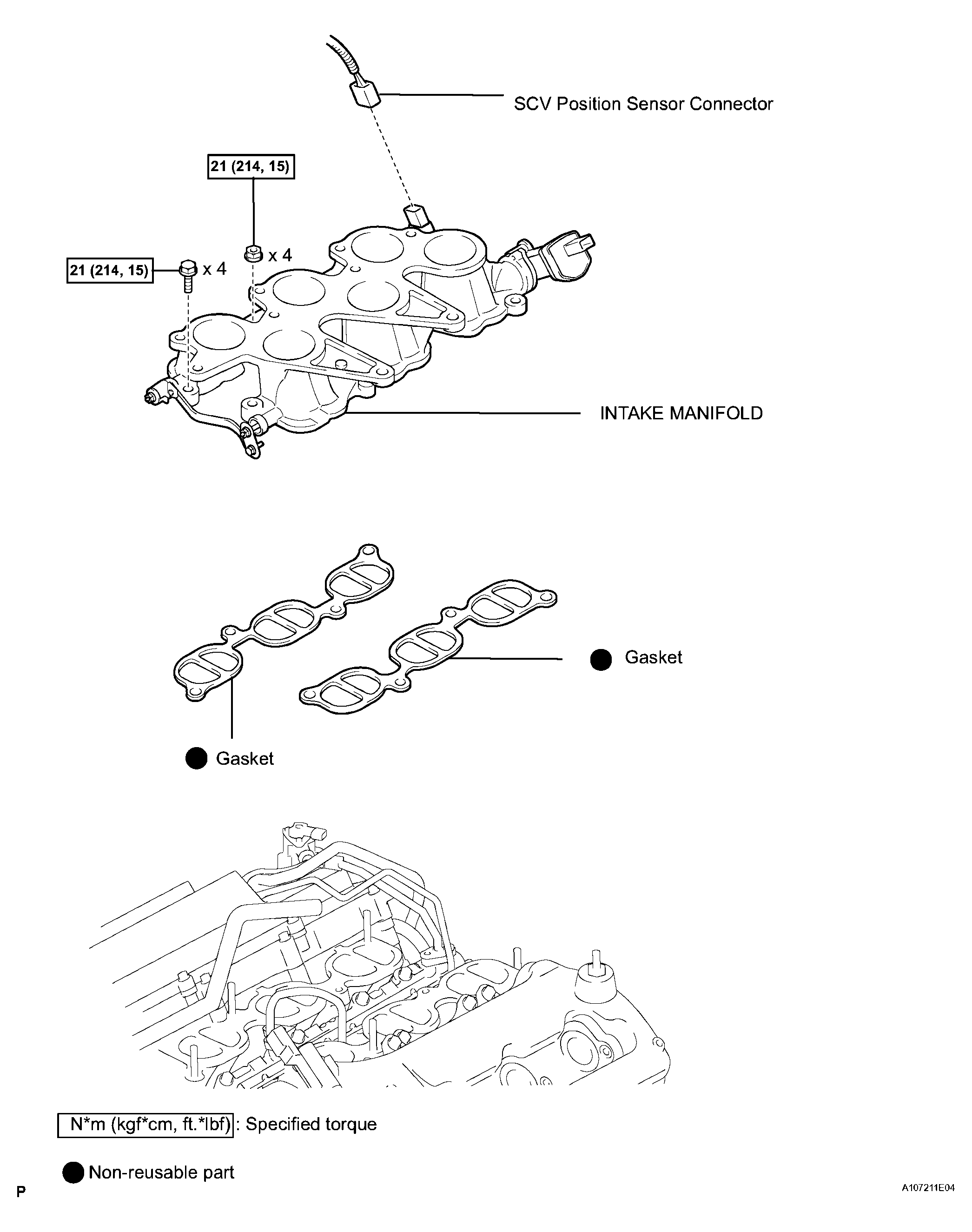

Fig 7: Knock Sensor Replacement Components With Torque Specifications (7 Of 8)

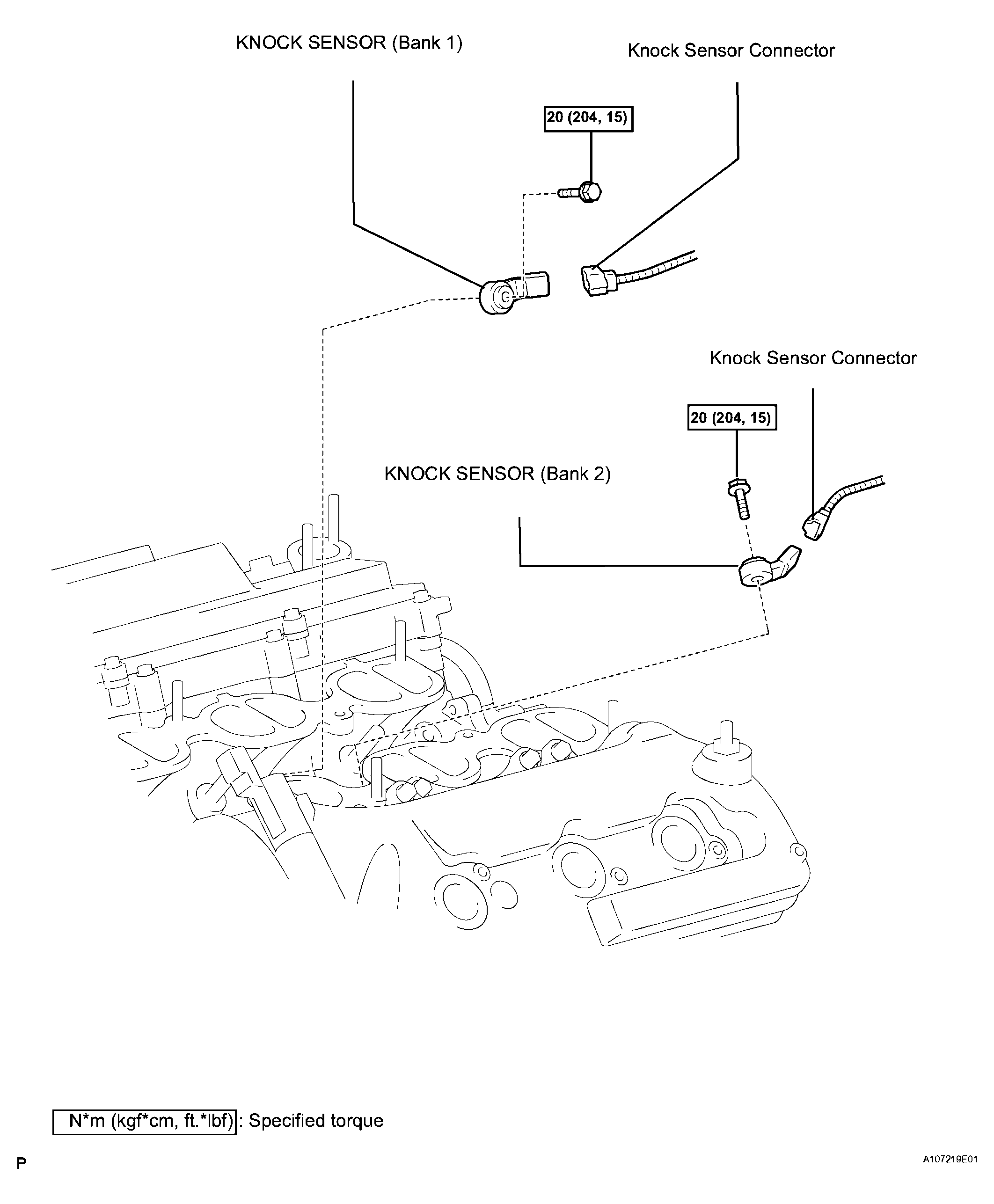

Fig 8: Knock Sensor Replacement Components With Torque Specifications (8 Of 8)
