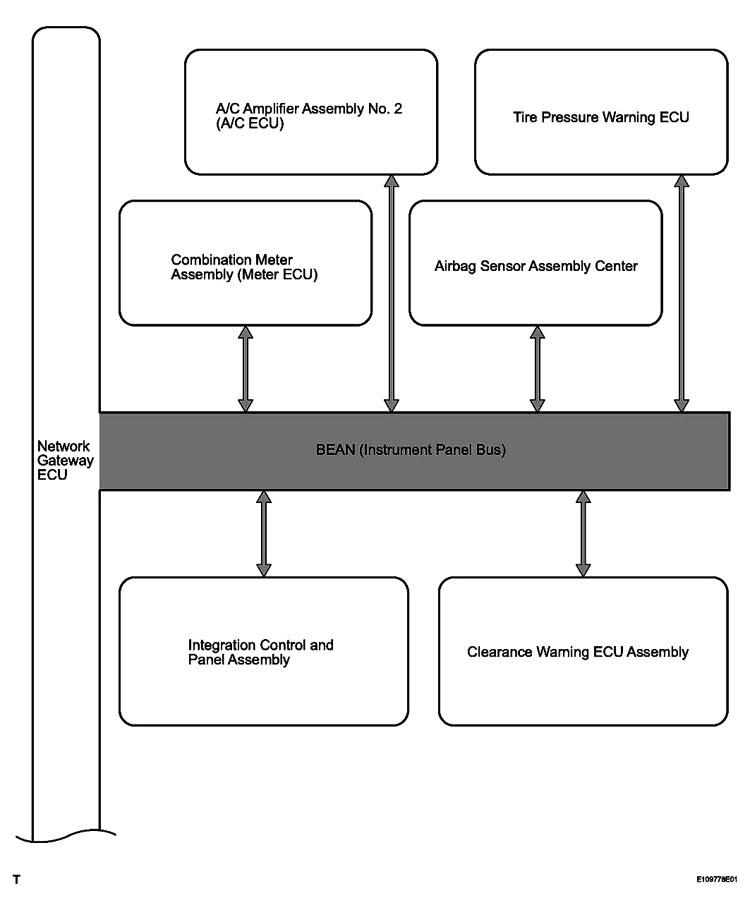

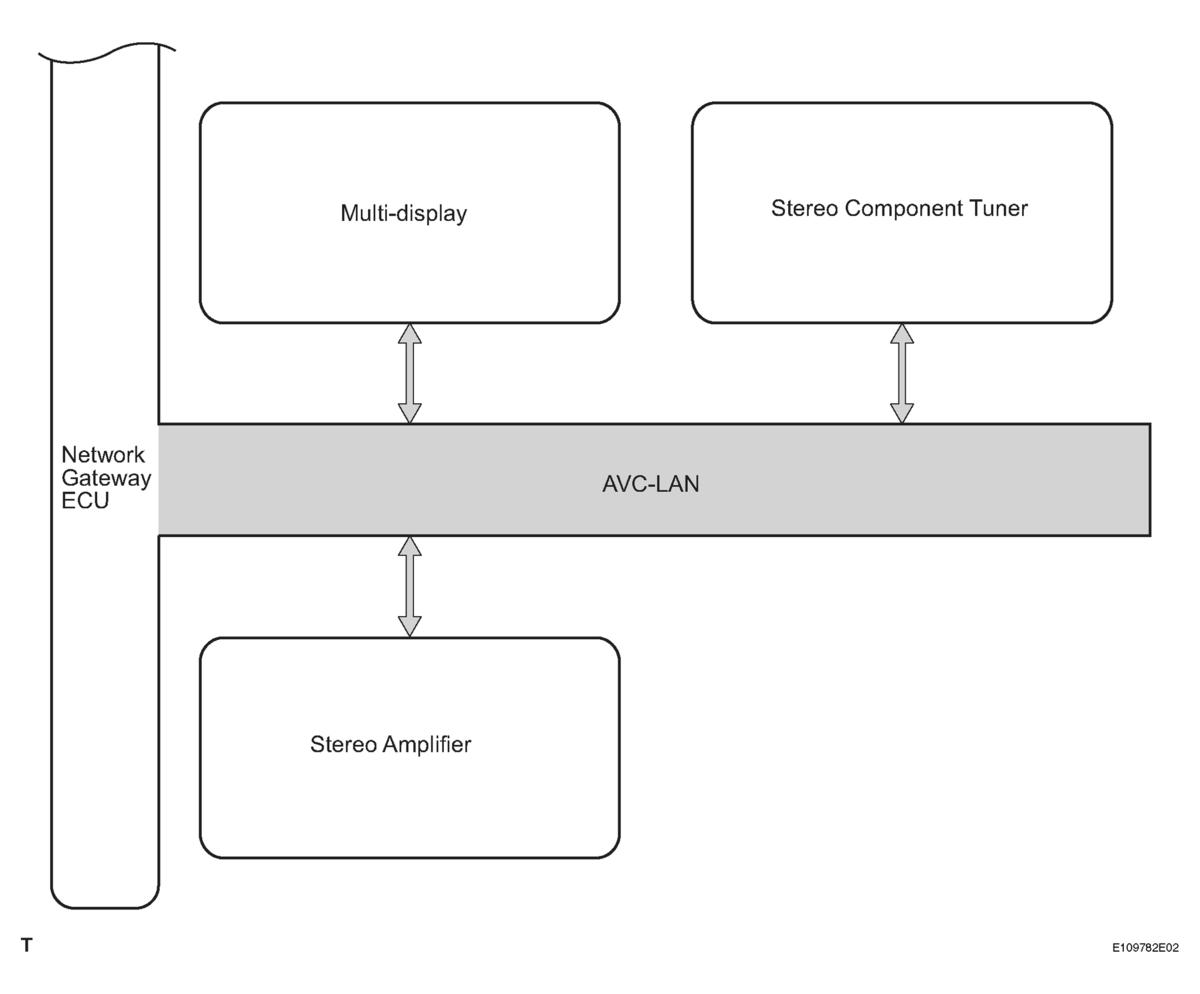

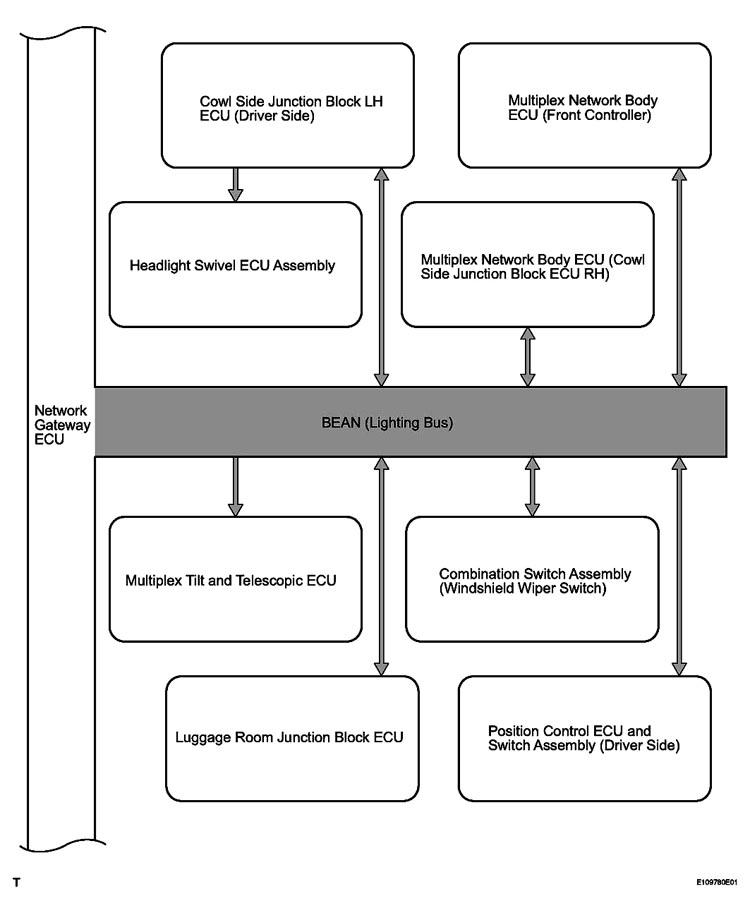

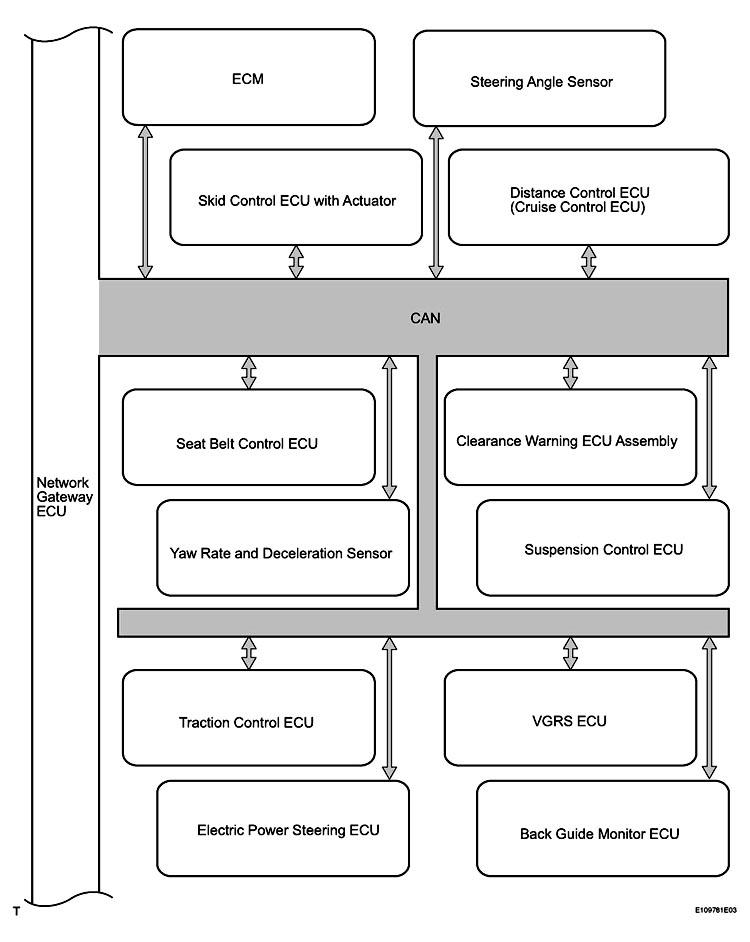

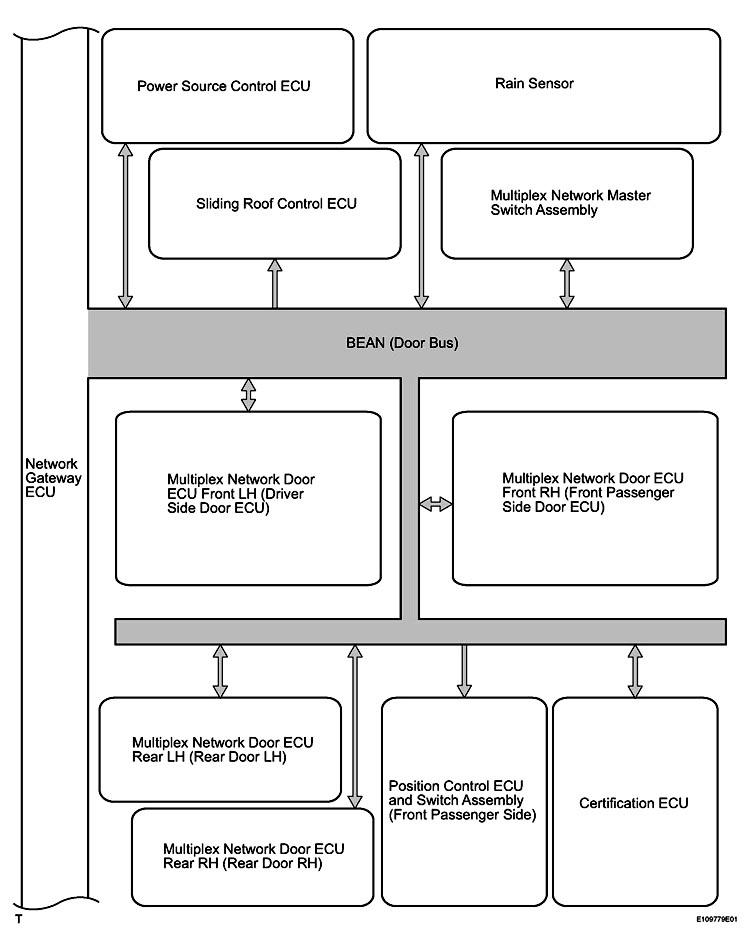

System Diagram
ITEM NAME REFERENCE CHART
| Item | Details |
|---|---|
| Number of BEAN connected ECUs*1 | 24 |
| Number of CAN connected ECUs*1 | 12 |
| Number of AVC-LAN connected ECUs*1 | 3 |
| Number of communication frames*2 | 208 |
| Gateway function between BEAN and diagnosis | Network gateway ECU |
| Gateway function between BEAN and AVC-LAN | Network gateway ECU |
| Gateway function between BEAN and CAN | Network gateway ECU |
| ECU in charge of vehicle customization information | Network gateway ECU |
| Protocol | CAN, BEAN and AVC-LAN |
HINT:
- *1: Optional ECUs are also included.
- *2: An amount of data that is required for a signal instance of communication.
