Outer Mirror Switch: Installation

  1. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
    1. Connect the connector.
    2. Attach the 2 claws to install the control panel.
    3. Install the 2 screws.
  2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  3. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (See  INSTALLATION  )
  4. INSTALL INSTRUMENT SIDE PANEL LH (See  INSTALLATION  )
  5. INSTALL FRONT DOOR OPENING TRIM COVER LH (See  INSTALLATION  )

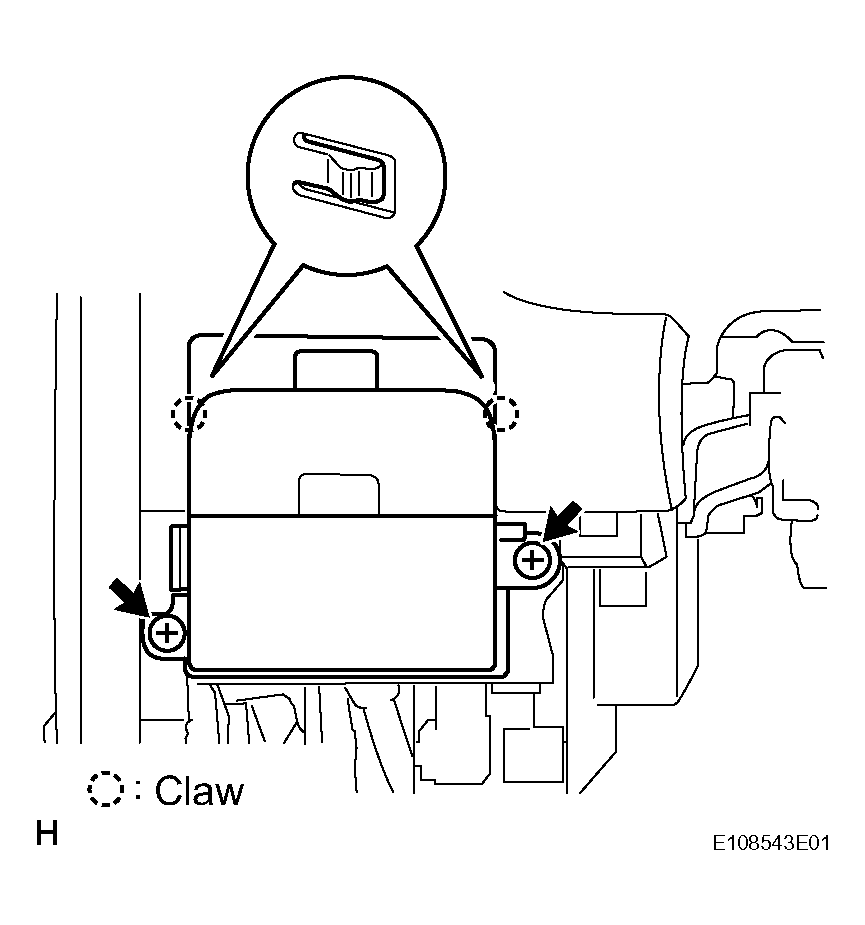

    Fig 1: Identifying Front Door Opening Trim Cover LH
    G04023192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  7. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See  INSTALLATION  )
  8. INSTALL CONSOLE UPPER PANEL ASSEMBLY (See  INSTALLATION  )
  9. INSTALL FRONT CONSOLE UPPER PANEL GARNISH (See  INSTALLATION  )
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  11. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  12. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (See PRECAUTION ).
