Outer Rear View Mirror: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

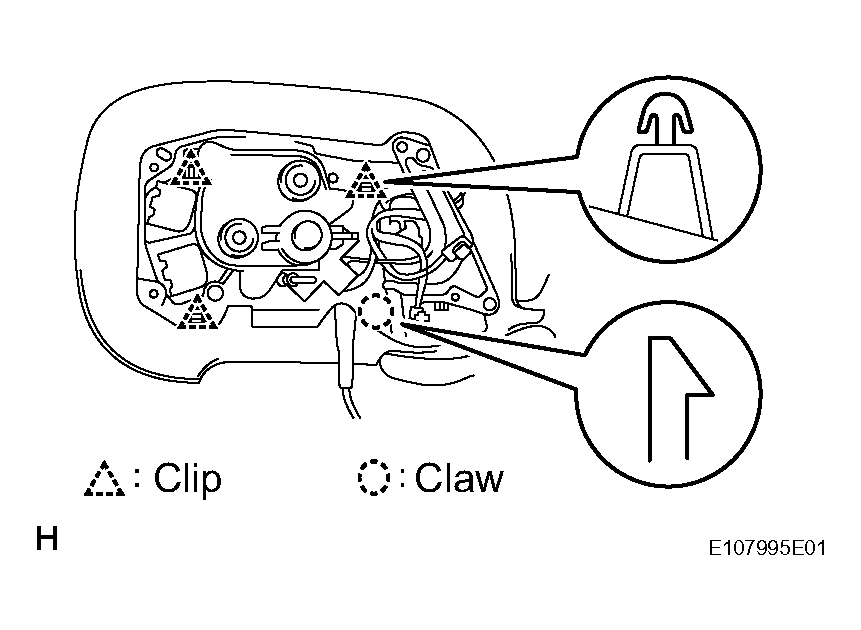

1. INSTALL OUTER REAR VIEW MIRROR COVER
   1. Attach the claw and 3 clips to install the mirror cover.
      Fig 1: Identifying Outer Rear View Mirror Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL OUTER MIRROR LIGHT ASSEMBLY
   1. Install the mirror light.
      Fig 2: Identifying Mirror Light

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL OUTER REAR VIEW MIRROR VISOR
   1. Install the mirror visor with the 4 screws.

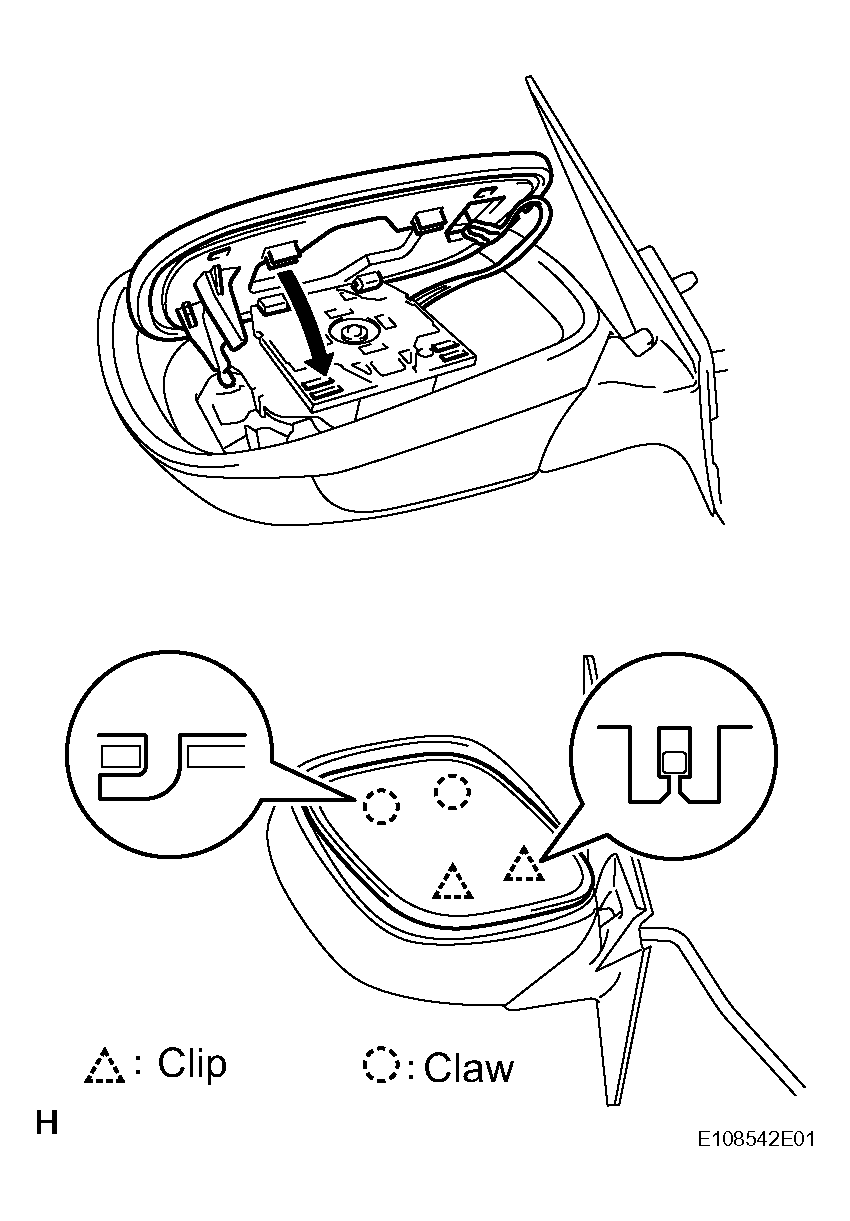

4. INSTALL OUTER REAR VIEW MIRROR SUBASSEMBLY LH
   1. Connect the connectors.
      Fig 3: Identifying Outer Rear View Mirror Subassembly LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Attach the 2 claws and clips to install the mirror.
      Fig 4: Identifying Mirror

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

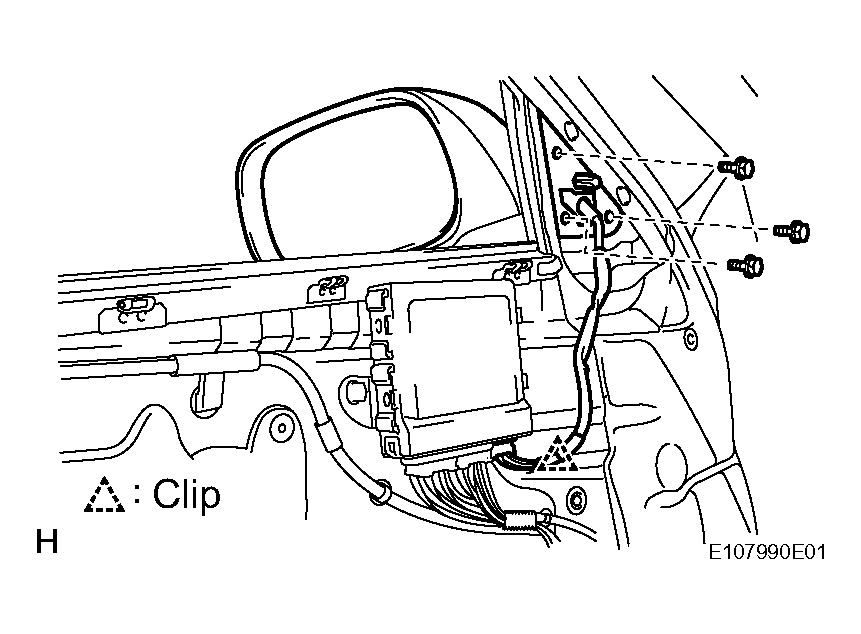

5. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
   1. Install the mirror with the 3 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   2. Attach the clip.
   3. Connect the connector.
6. INSTALL DOOR FRAME GARNISH LH (See  INSTALLATION  )
7. INSTALL FRONT DOOR TRIM COVER LH (See  INSTALLATION  )
   Fig 5: Identifying Front Door Trim Cover LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL FRONT DOOR TRIM BOARD SUBASSEMBLY LH (See  INSTALLATION  )
9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH (See  INSTALLATION  )
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).
       NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
