Front Axle Hub Bolt: Replacement

REMOVE FRONT WHEEL
REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (See REMOVAL )
REMOVE FRONT DISC (See REMOVAL )
REMOVE FRONT AXLE HUB BOLT
1. Using SST, remove the front axle hub bolt.
  SST 09628-10011

  NOTE: Do not damage the threads of the hub bolts.

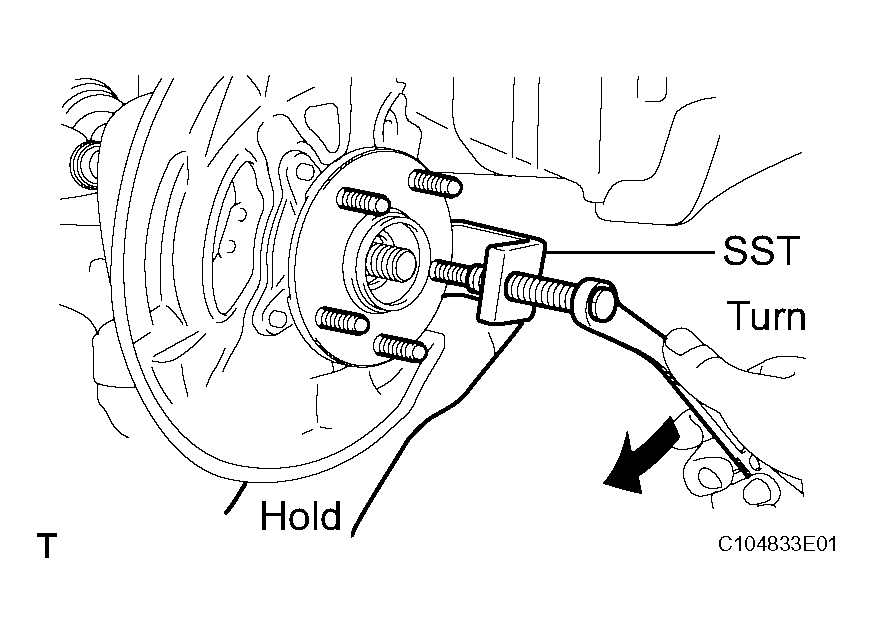

Fig 1: Removing Front Axle Hub Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT AXLE HUB BOLT
1. Install a washer and nut to a new bolt as shown in the illustration.
2. Using a screwdriver or an equivalent to hold the hub, turn the wheel nut to pull the hub bolt until the bottom surface of the hub bolt head touches the axle hub.
  NOTE: Do not damage the threads of the hub bolts.

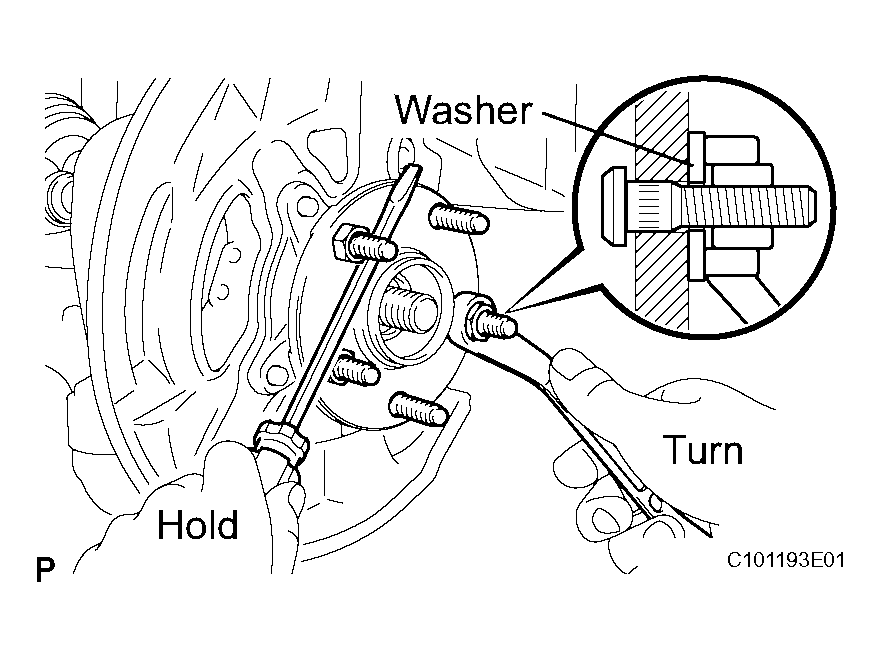

  Fig 2: Installing Washer And Nut To Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DISC (See INSTALLATION )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (See INSTALLATION )
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
