Back-Up Light: Notes

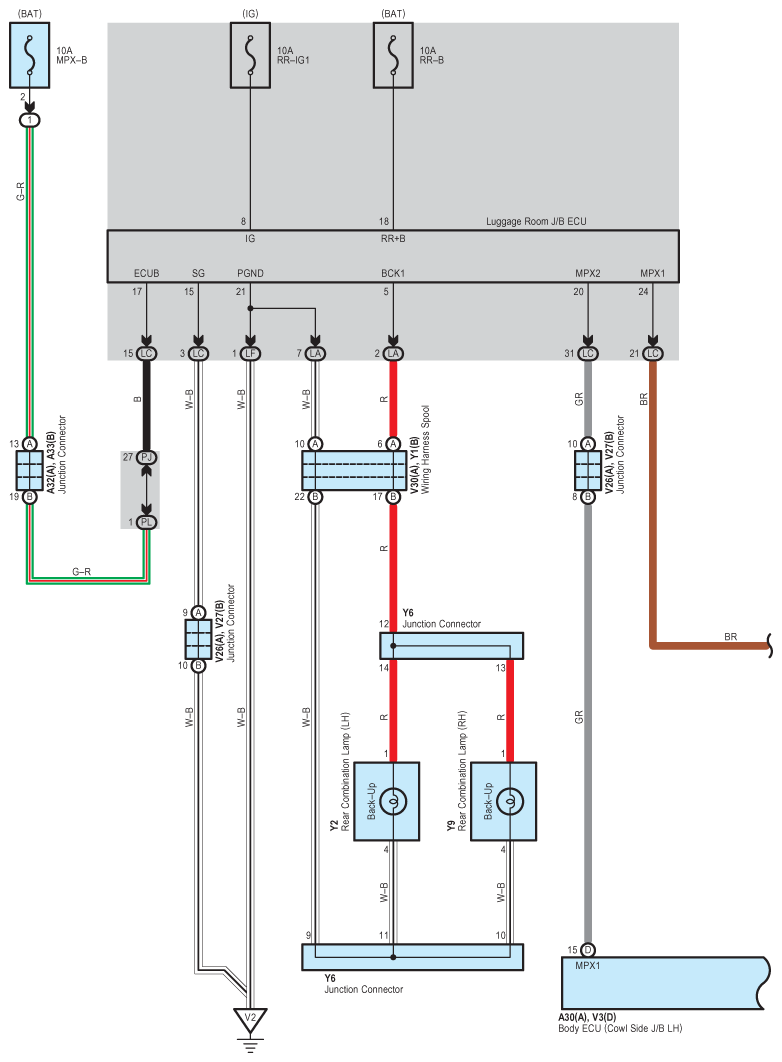

Fig 1: Back-Up Light System Wiring Diagram (1 Of 3)
G08910331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

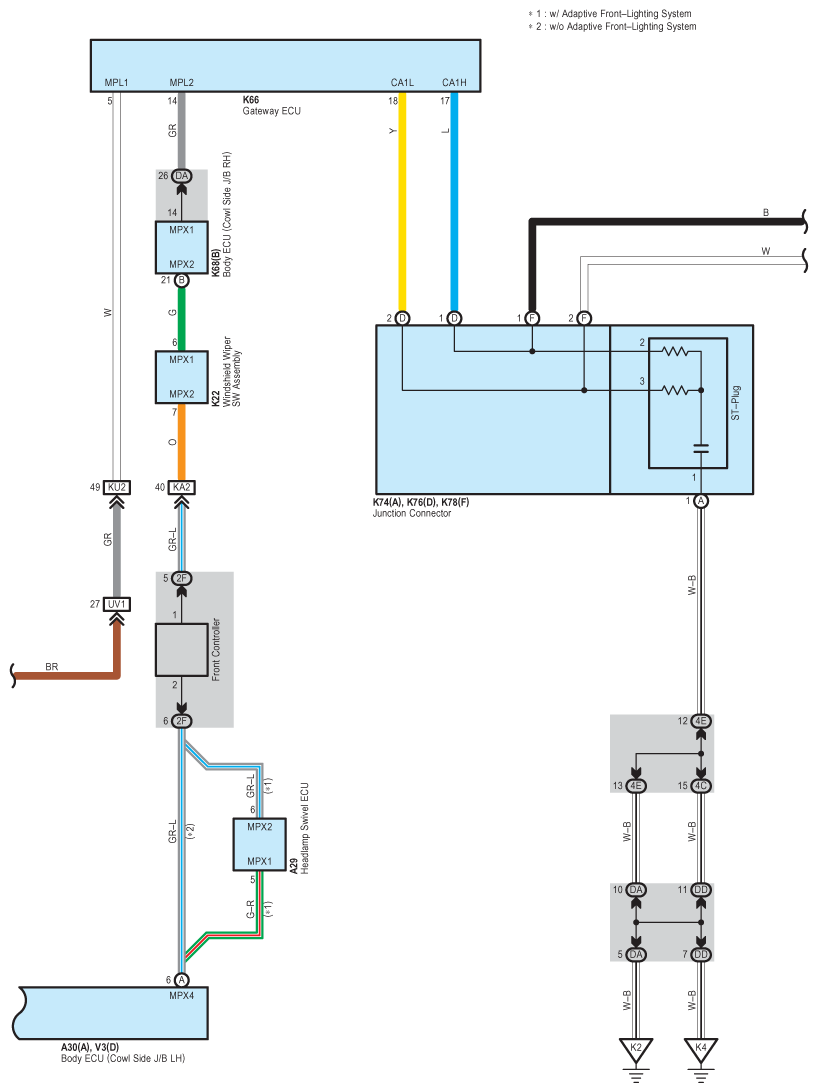

Fig 2: Back-Up Light System Wiring Diagram (2 Of 3)
G08910332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

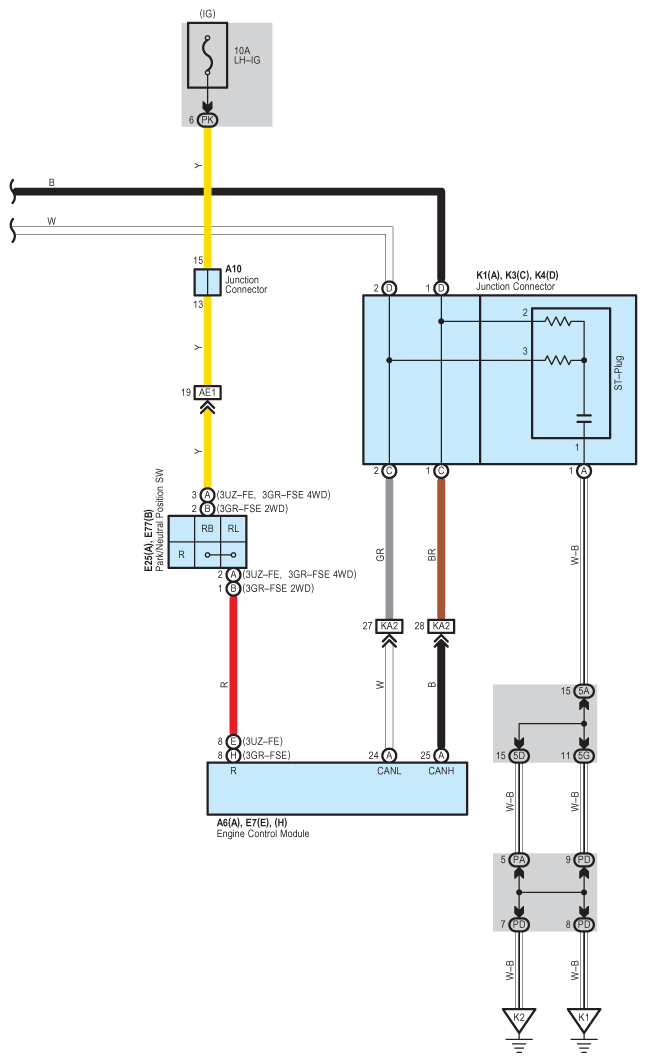

Fig 3: Back-Up Light System Wiring Diagram (3 Of 3)
G08910333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
