Electronic Tension Reducer
›
Notes
Electronic Tension Reducer: Notes

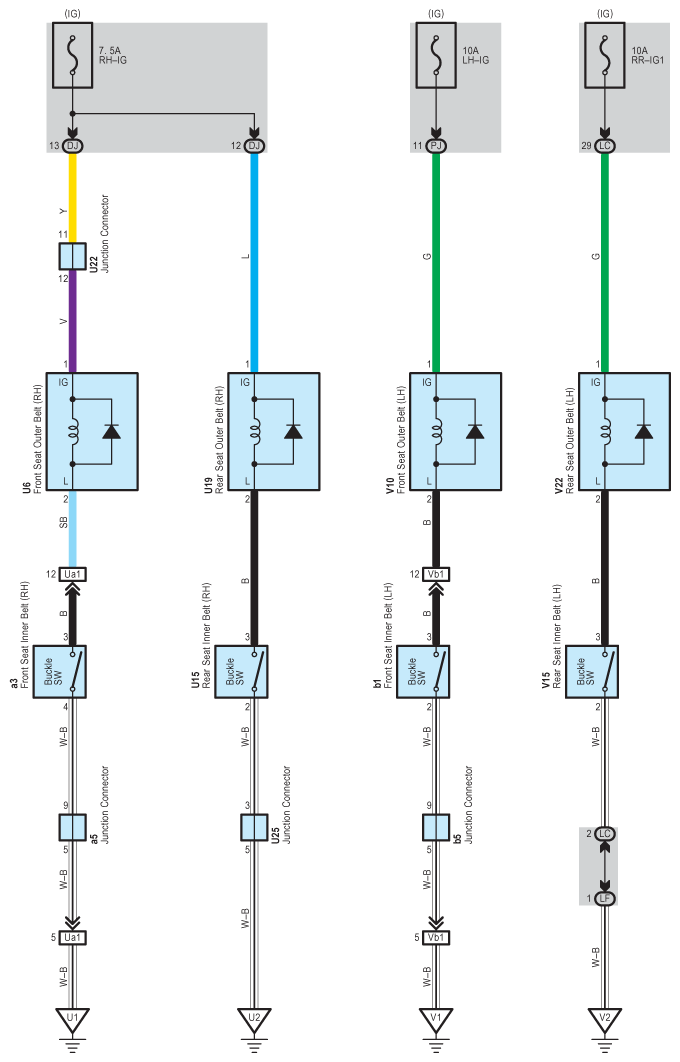

Fig 1: Electronic Tension Reducer System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
