Charging (3UZ-FE): Generator: Components

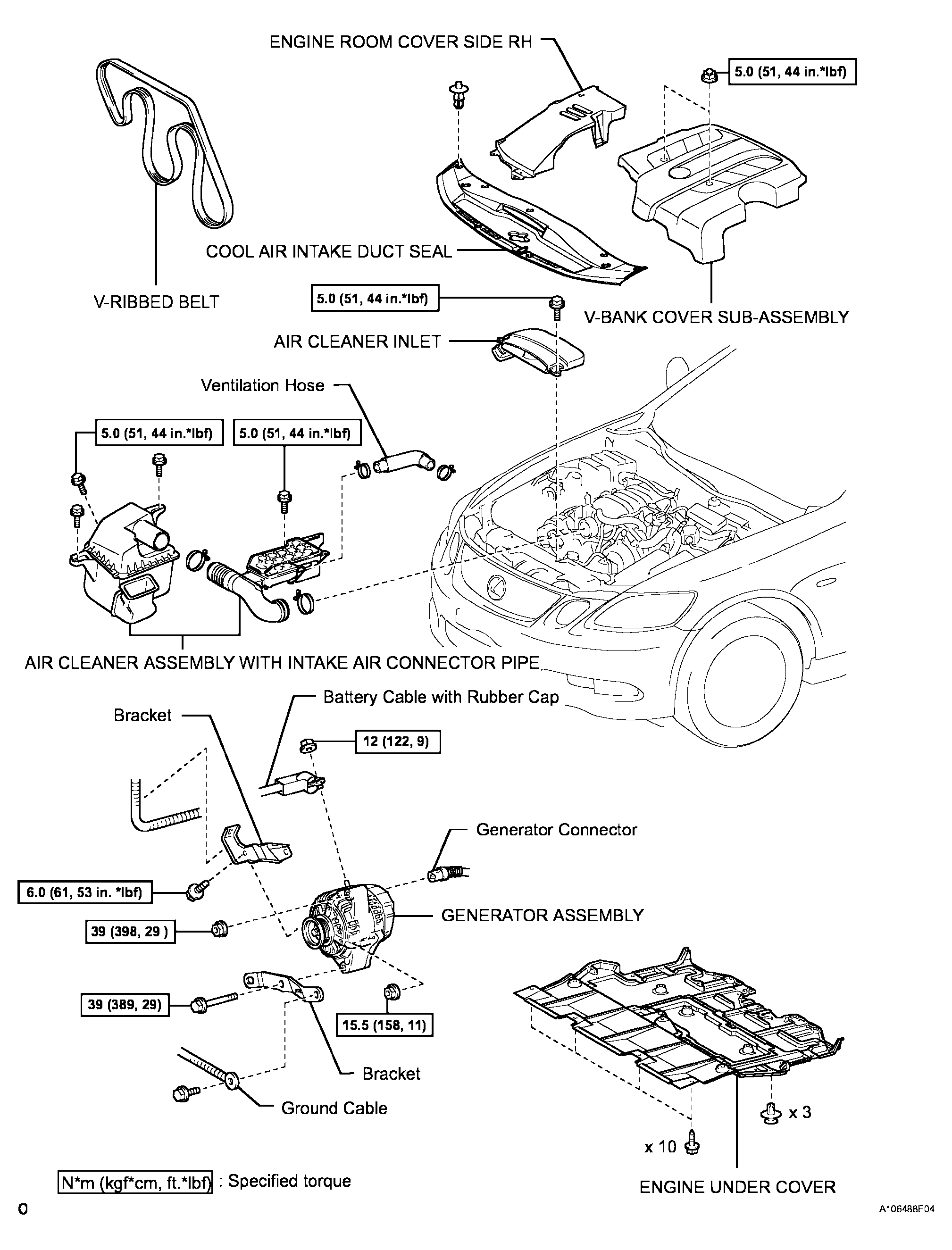

Fig 1: Generator Replacement Components With Torque Specifications
G04028209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
