Rear Console Box: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE FRONT CONSOLE UPPER PANEL GARNISH
    1. Using a screwdriver, detach the claws and remove the garnish.

      HINT:

      Tape the screwdriver tip before use.

  3. REMOVE CONSOLE UPPER PANEL ASSEMBLY
    1. Twist the shift lever knob in the direction indicated by the arrow and remove it.
      Fig 1: Identifying Front Console Upper Panel Garnish
      G04032599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the 9 clips.

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the ash receptacle and then disconnect the connector.

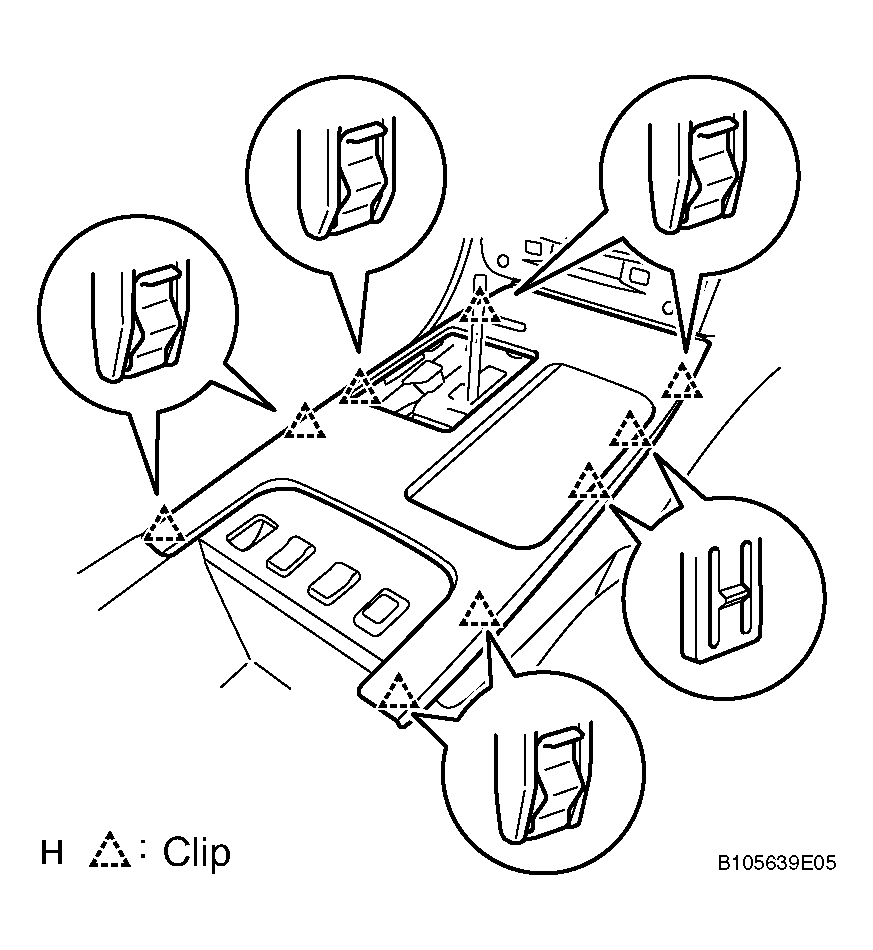

      Fig 2: Identifying Ash Receptacle And Disconnect Connector
      G04032600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
    1. Remove the screw.
    2. Using a screwdriver, detach the 3 clips and 3 claws.

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the finish panel end.

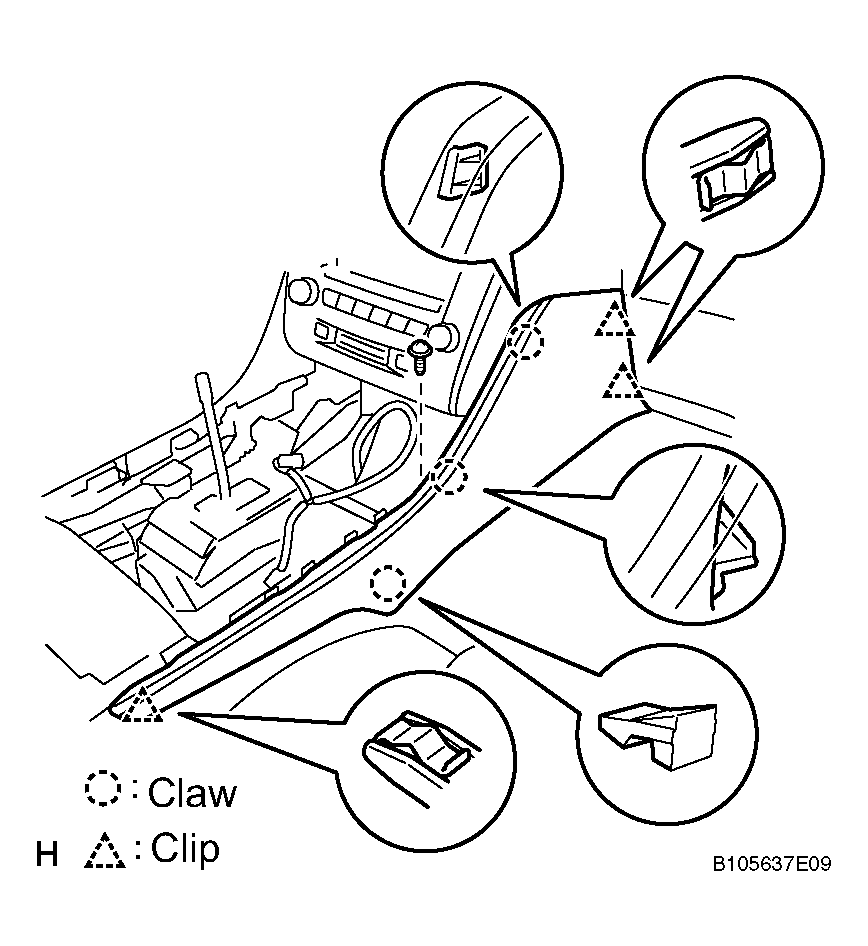

      Fig 3: Identifying Instrument Panel Finish Panel End RH
      G04032601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
    1. Remove the screw.
    2. Using a screwdriver, detach the 4 clips and 3 claws.

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the finish panel end.

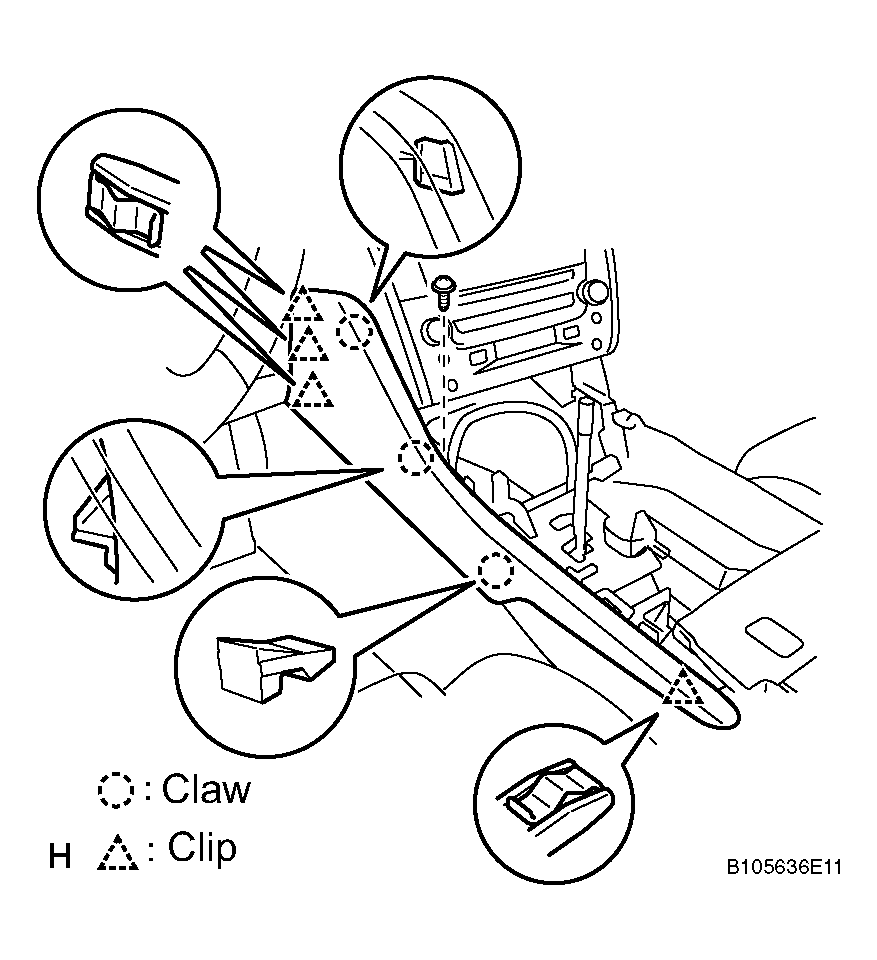

      Fig 4: Identifying Instrument Panel Finish Panel End LH
      G04032602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CONSOLE BOX PLATE
    1. Using a screwdriver, detach the 4 clips.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the console box plate and then disconnect the connector.

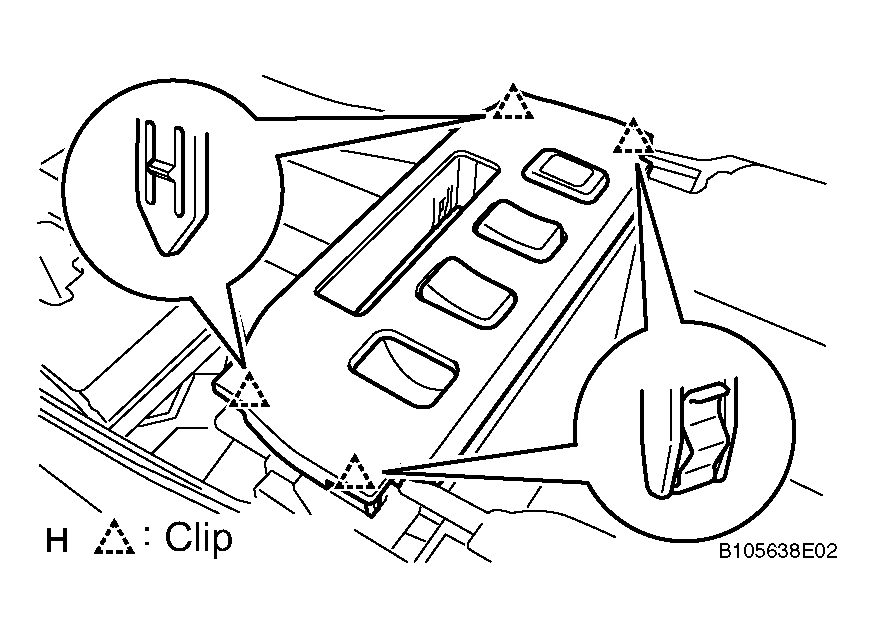

      Fig 5: Identifying Console Box Plate And Disconnect Connector
      G04032603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CONSOLE BOX REGISTER ASSEMBLY
    1. Using a screwdriver, detach the 4 clips and remove the register.

      HINT:

      Tape the screwdriver tip before use.

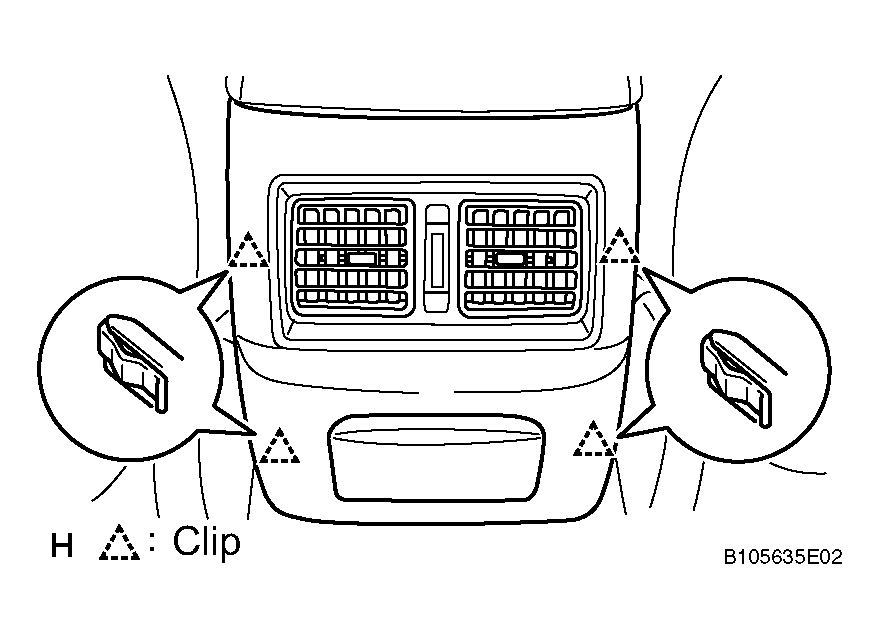

      Fig 6: Identifying Console Box Register
      G04032604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CONSOLE BOX
    1. Remove the 4 bolts and 2 screws.
    2. Remove the console box and then disconnect the connector.
      Fig 7: Locating Console Box Bolts And Screws
      G04032590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
