Fuel Pump Resistor: Installation

INSTALL FUEL PUMP RESISTOR
1. Install the fuel pump resistor and ground wire with the 3 bolts
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

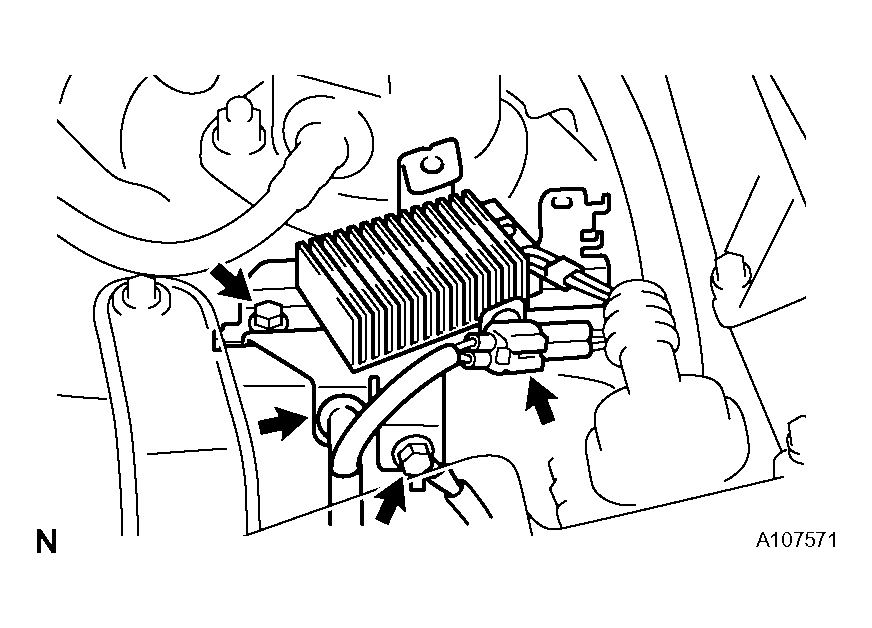

  Fig 1: Identifying Fuel Pump Resistor, Bolts And Ground Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE ROOM SIDE COVER RH (INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
