Fuel Pump: Disassembly

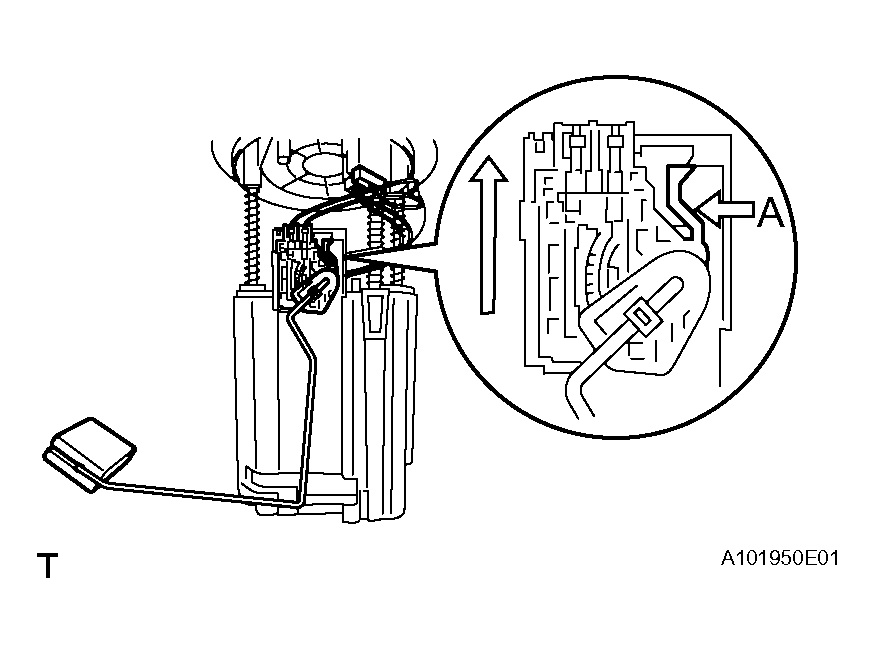

1. REMOVE FUEL SENDER GAUGE ASSEMBLY
   1. Disconnect the fuel sender gauge connector.
   2. Press down on the sender gauge claw labeled A.

      Then slide the sender gauge upward.

      Fig 1: Identifying Fuel Sender Gauge Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE SUB-TANK SUB-ASSEMBLY

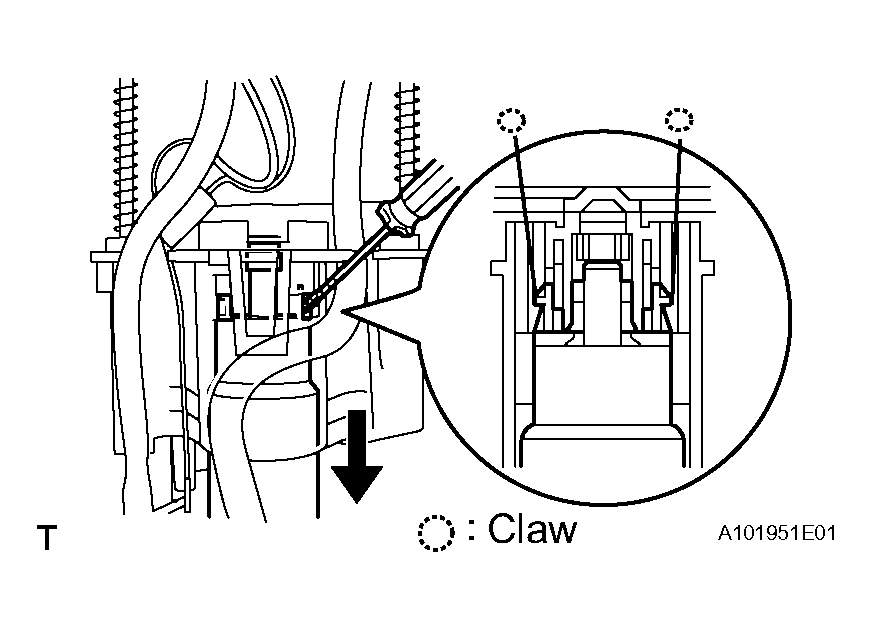

   1. Using a screwdriver, detach the 4 claws from the claw holes and remove the sub-tank.

      HINT:

      Tape the screwdriver tip before use.

      Fig 2: Detaching Claws From Claw Holes And Remove Sub-Tank

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE FUEL PUMP ASSEMBLY
   1. Disconnect the fuel pump connector.
   2. Detach the 2 claws from the claw holes and remove the fuel pump.
      Fig 3: Identifying Fuel Pump Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

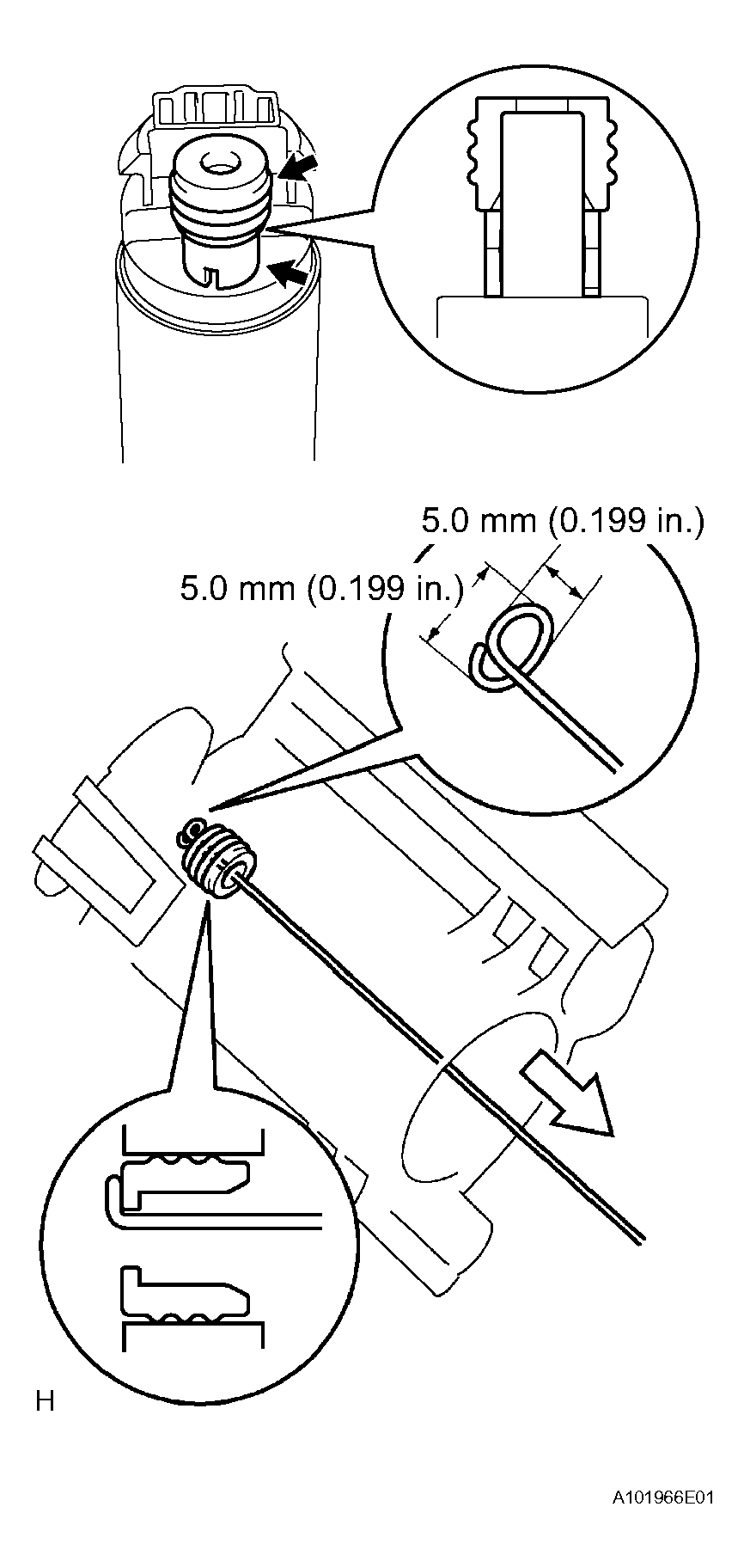

   3. Remove the fuel pump filter seal from the fuel pump.
      Fig 4: Identifying Fuel Pump Filter Seal From Fuel Pump

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the fuel pump spacer from the fuel pump.
4. REMOVE FUEL RELIEF VALVE ASSEMBLY
   1. Disconnect the fuel pump connector from the fuel filter.
   2. Using a screwdriver, detach the claw and remove the relief valve.
      Fig 5: Identifying Claw And Relief Valve

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
   1. Remove the clip and fuel pressure regulator from the relief valve.
      Fig 6: Identifying Clip And Fuel Pressure Regulator From Relief Valve

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 O-rings from the fuel pressure regulator.
      Fig 7: Identifying O-Rings From Fuel Pressure Regulator

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECTION

1. INSPECT FUEL PUMP ASSEMBLY
   1. Inspect the resistance of the fuel pump.
      1. Using an ohmmeter, measure the resistance between terminals 1 and 2.

         Standard resistance:

         0.2 to 3.0 Ω at 20°C (68°F)

         If the result is not as specified, replace the fuel pump.

         Fig 8: Identifying Fuel Pump Connector

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Inspect the operation of the fuel pump.
      1. Connect the battery's positive (+) lead to terminal 1 of the connector, and the negative (-) lead to terminal 2. Check that the fuel pump operates.
         NOTE:

         • These tests must be performed within 10 seconds to prevent the coil from burning out.
         • Keep the fuel pump as far away from the battery as possible.
         • Always turn the voltage on and off on the battery side, not the fuel pump side.
