Fuel Pump: Reassembly

INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
1. Apply a light coat of gasoline to 2 new O-rings, and install it to the fuel pressure regulator.
2. Apply a light coat of gasoline to 2 O-rings, and install the fuel pressure regulator to the fuel relief valve.

  Fig 1: Applying Light Coat Of Gasoline O-Rings To Fuel Pressure Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

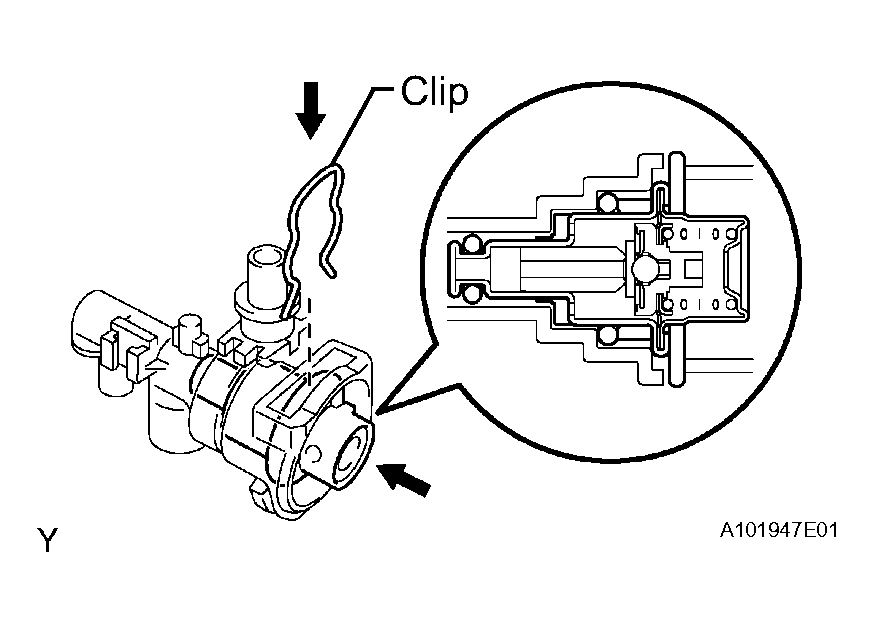

3. Install the clip to the relief valve.

  Fig 2: Identifying Clip To Relief Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL RELIEF VALVE ASSEMBLY

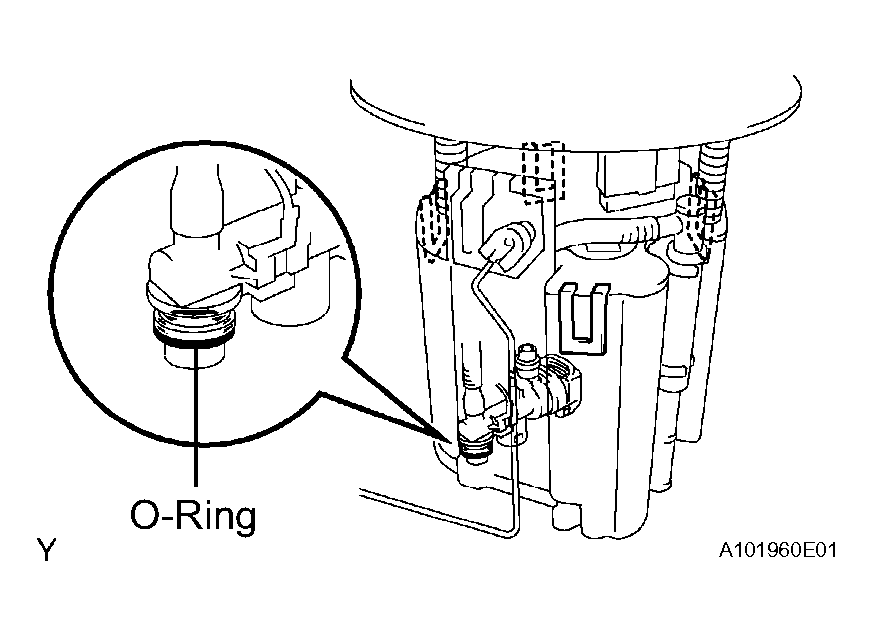

1. Apply a light coat of gasoline to a new O-ring, and install the fuel relief valve to the fuel filter.

  Fig 3: Applying Light Coat Of Gasoline New O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP ASSEMBLY
1. Install the fuel pump spacer to the fuel pump.
2. Apply a light coat of gasoline to a new seal, and install the fuel pump.
3. Install the fuel pump to the fuel filter.
4. Connect the fuel pump connector.

  Fig 4: Applying Light Coat Of Gasoline New Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUB-TANK ASSEMBLY

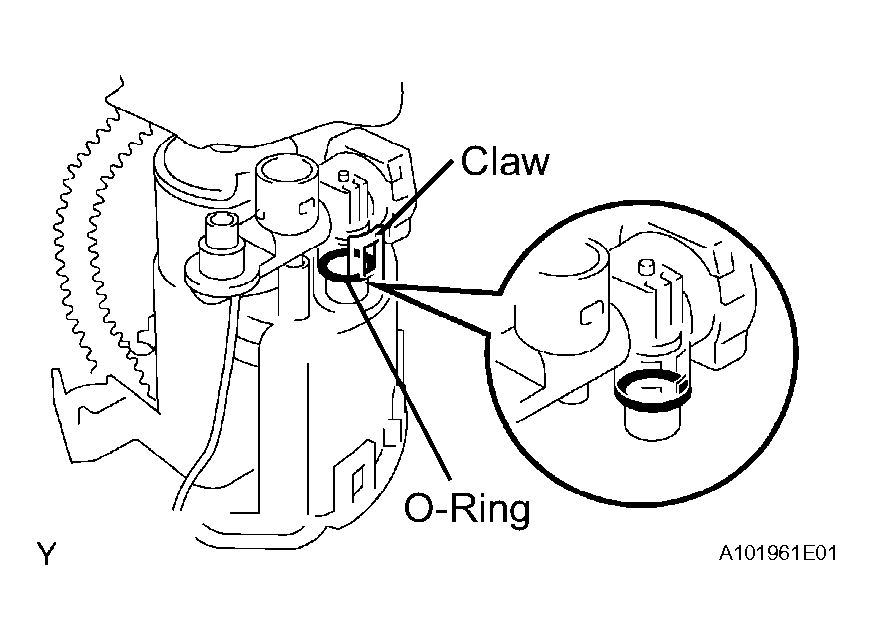

1. Apply a light coat of gasoline to a new O-ring, and install the O-ring and fuel sub-tank to the fuel filter.

  Fig 5: Identifying O-Ring And Fuel Sub-Tank To Fuel Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SENDER GAUGE ASSEMBLY

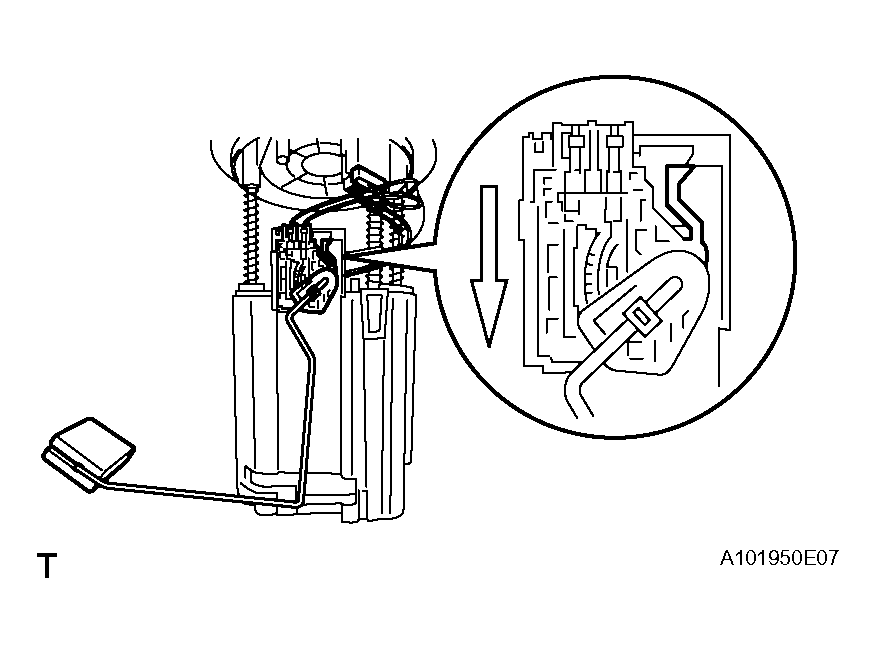

1. Set the fuel sender gauge to the fuel sub-tank. Then slide the sender gauge downward to install it.
2. Connect the fuel sender gauge connector.

  Fig 6: Identifying Fuel Sender Gauge Connector
