Lexus
›
2006
›
GS 430
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel (3UZ-FE)
›
Fuel Tank
›
Components
Fuel Tank: Components

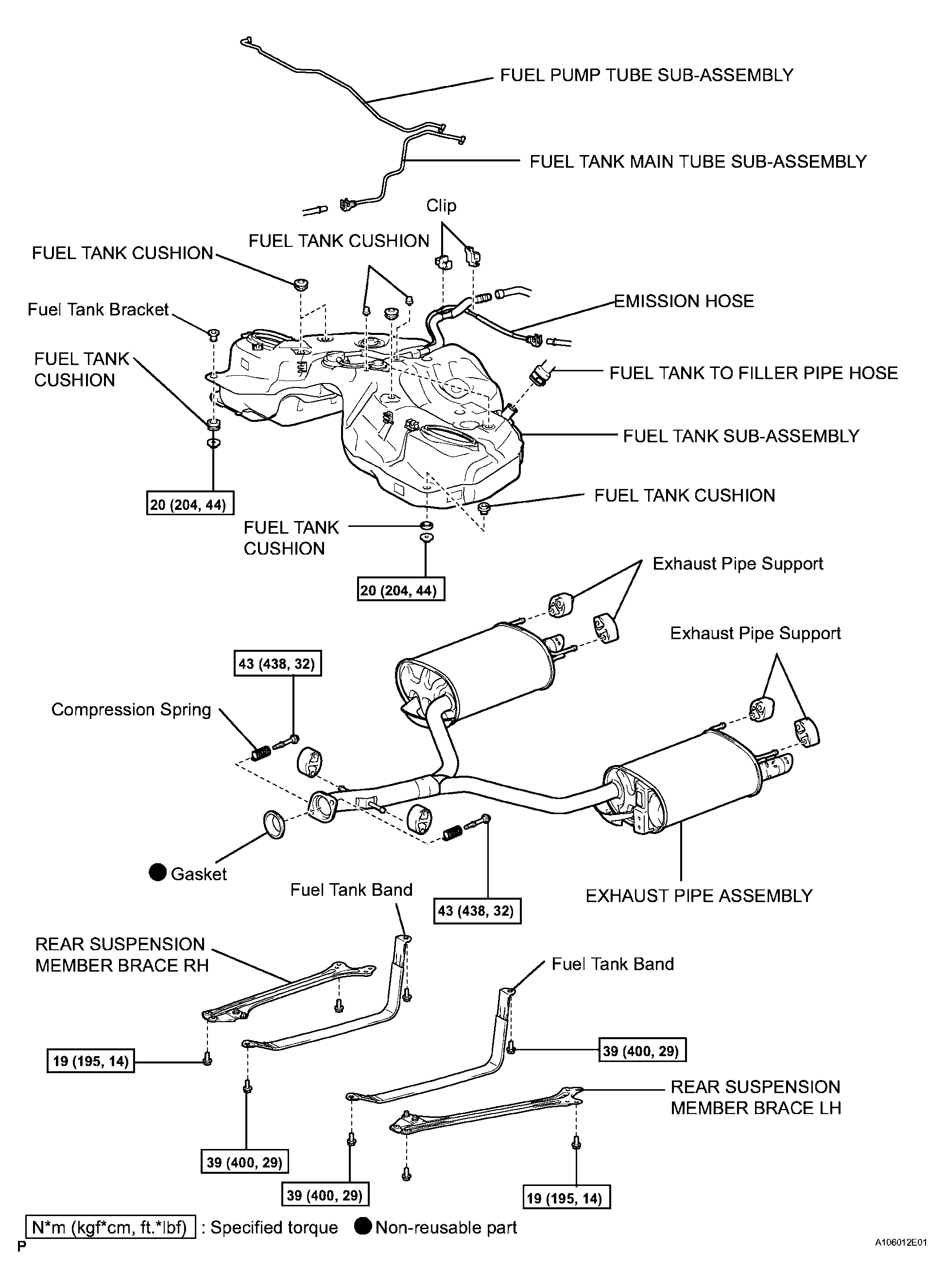

Fig 1: Identifying Fuel Tank Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

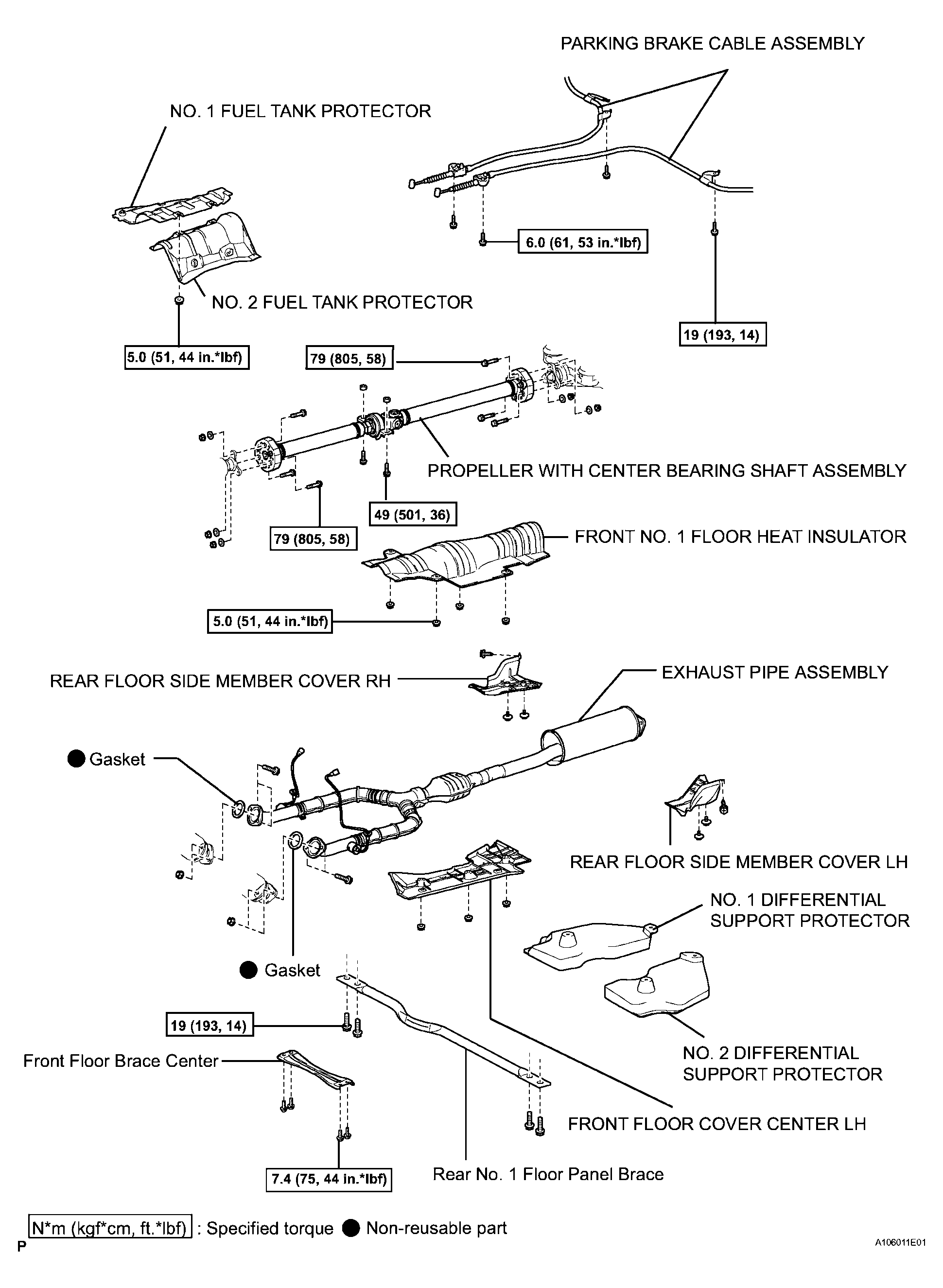

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

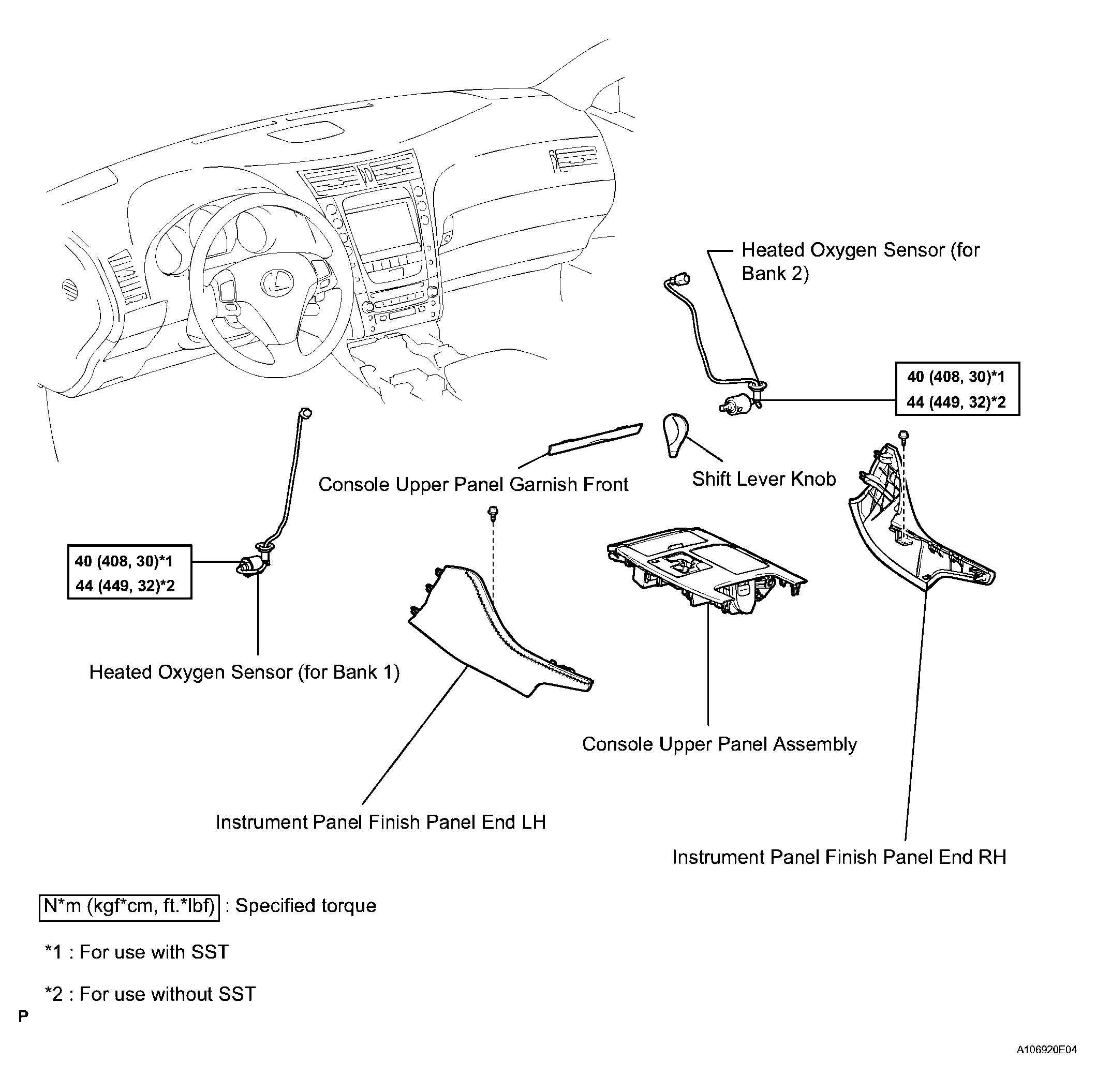

Fig 3: Fuel Tank Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

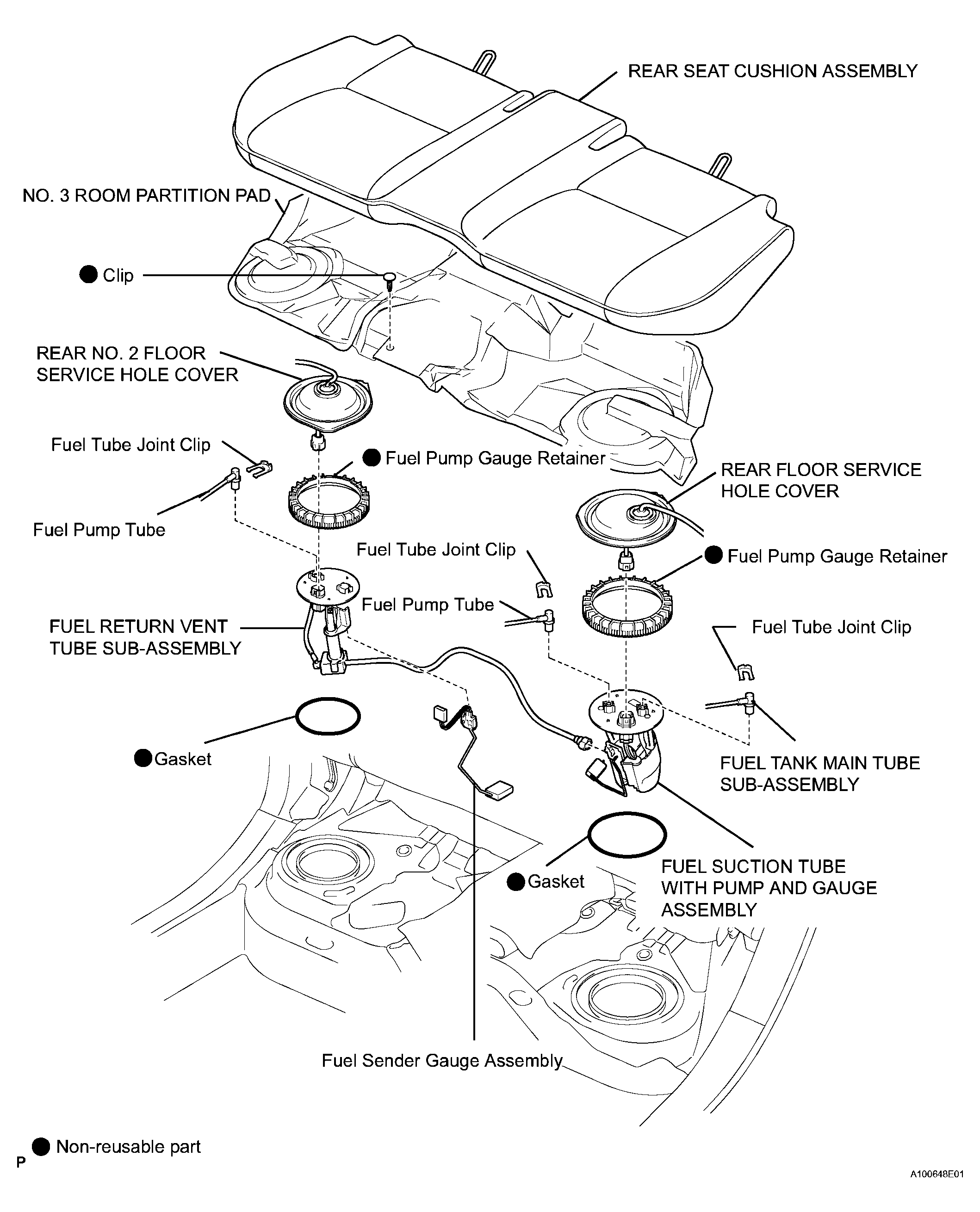

Fig 4: Fuel Tank Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
