Home › Lexus › 2006 › GS 430 › Repair and Diagnosis › Engine Performance › System › Engine Control System (3UZ-FE) › Mass Air Flow Meter › Components

Mass Air Flow Meter: Components

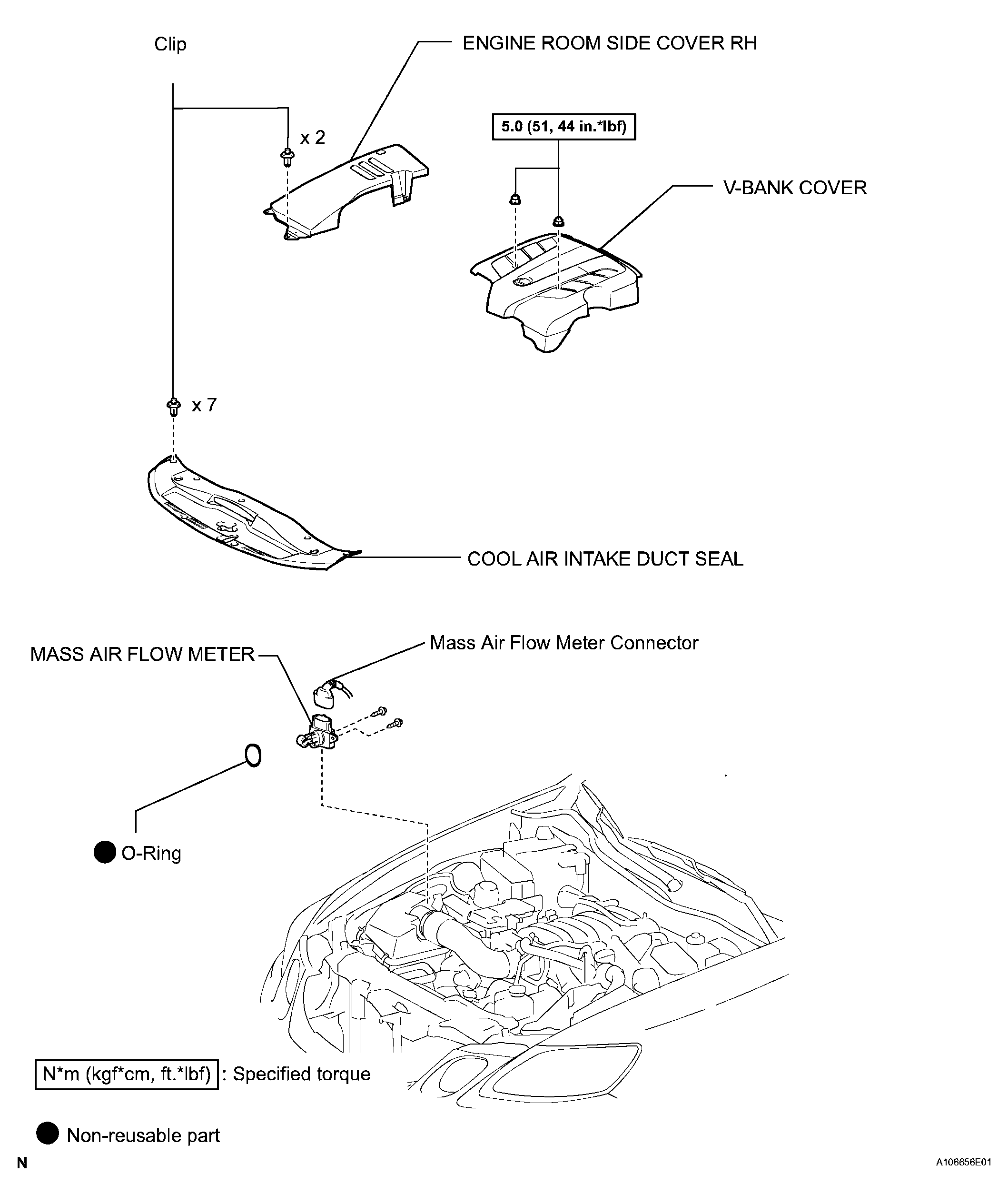

Fig 1: Mass Air Flow Meter Replacement Components With Torque Specifications
G04027180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
