DTC P0617 Starter Relay Circuit High: Wiring Diagram

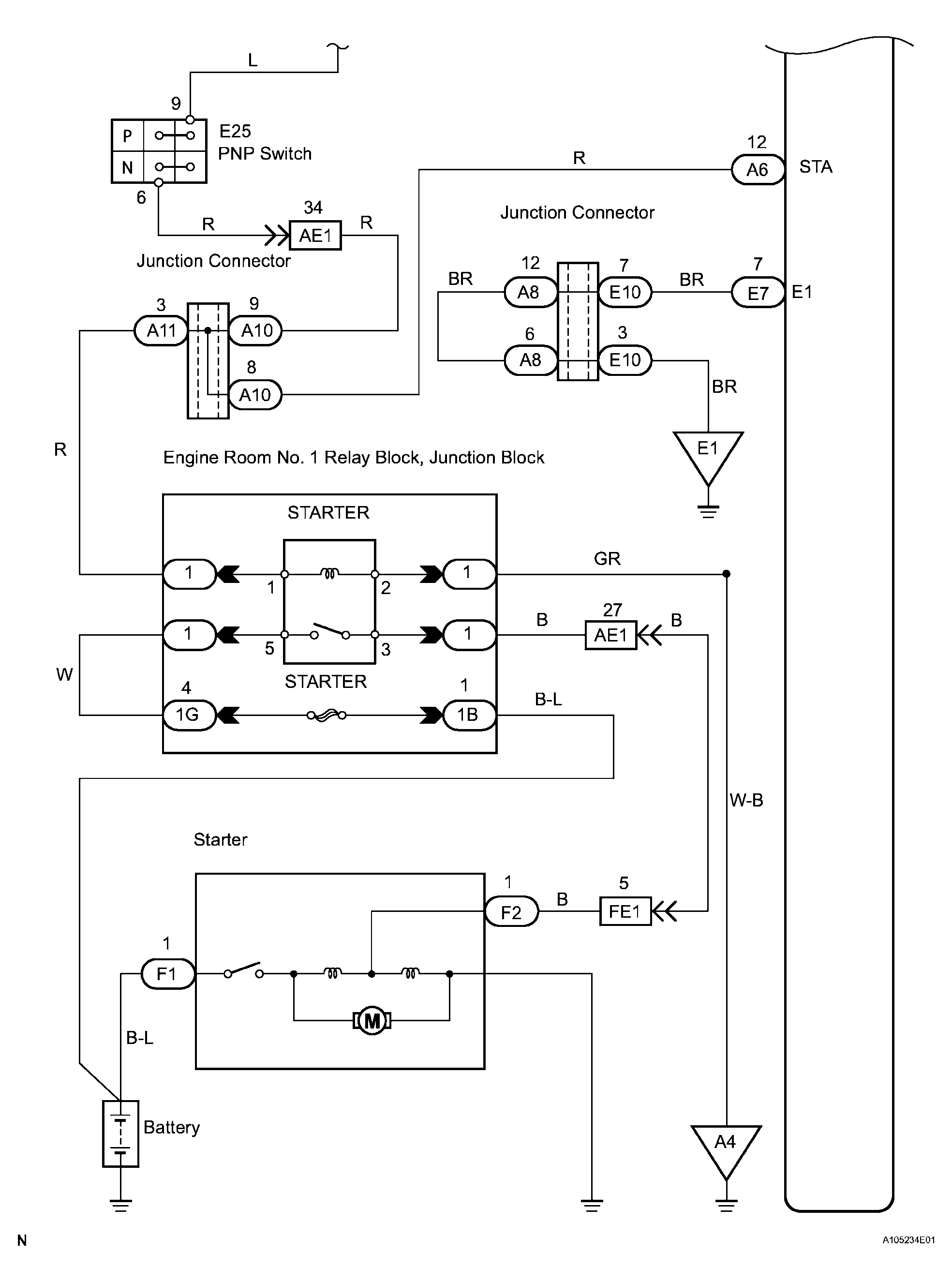

Fig 1: Identifying Starter Relay Circuit Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

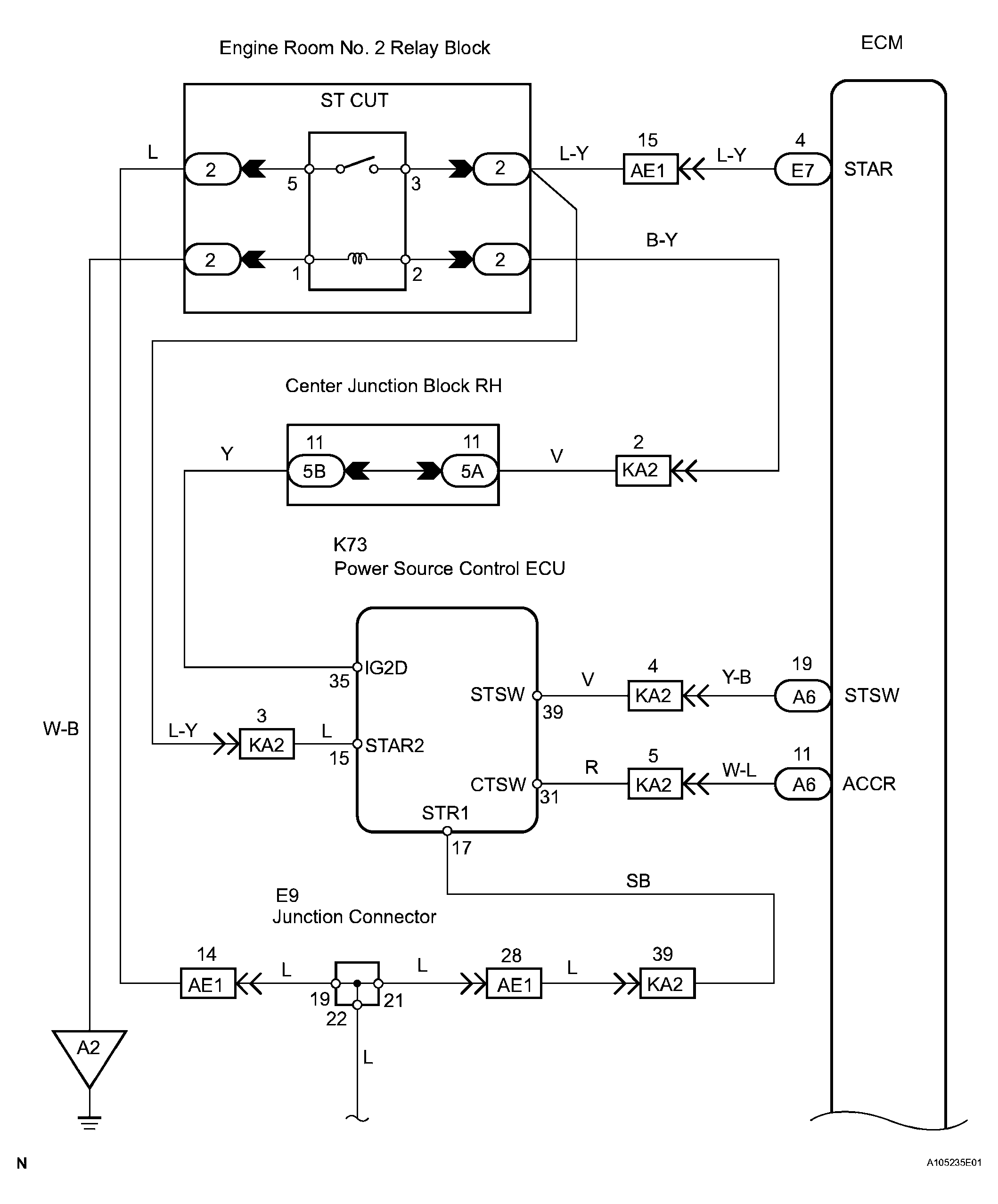

Fig 2: Identifying Starter Relay Circuit Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• The following troubleshooting flowchart is based on the premise that the engine is cranked normally. If the engine will not crank, proceed to PROBLEM SYMPTOMS TABLE .
• Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. READ DATA LIST (STARTER SIGNAL)
   1. Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
   2. Turn the engine switch on (IG) and turn the tester ON.
   3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / STARTER SIG.
   4. Confirm the starter signal status when the engine switch is operated.

      OK : GO TO NEXT STEP.

      READ DATA LIST (STARTER SIGNAL)



      Engine Switch Position	STARTER SIG
      On (IG)	OFF
      Start	ON

   OK : REPLACE ECM

   NG : GO TO NEXT STEP.

2. INSPECT PARK / NEUTRAL POSITION SWITCH
   1. Move the shift lever to the P or N position.
   2. Disconnect the E25 PNP switch connector.
   3. Measure the resistance of the PNP switch.
      Fig 3: Measuring Resistance Of PNP Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION CHART



      Shift Position	Tester Connection	Specified Condition
      P or N	9 - 6	Below 1 Ω

   NG : REPLACE PARK / NEUTRAL POSITION SWITCH (THEN CHECK CRANKING HOLDING FUNCTION)

   OK : CHECK CRANKING HOLDING FUNCTION CIRCUIT
