System Diagram

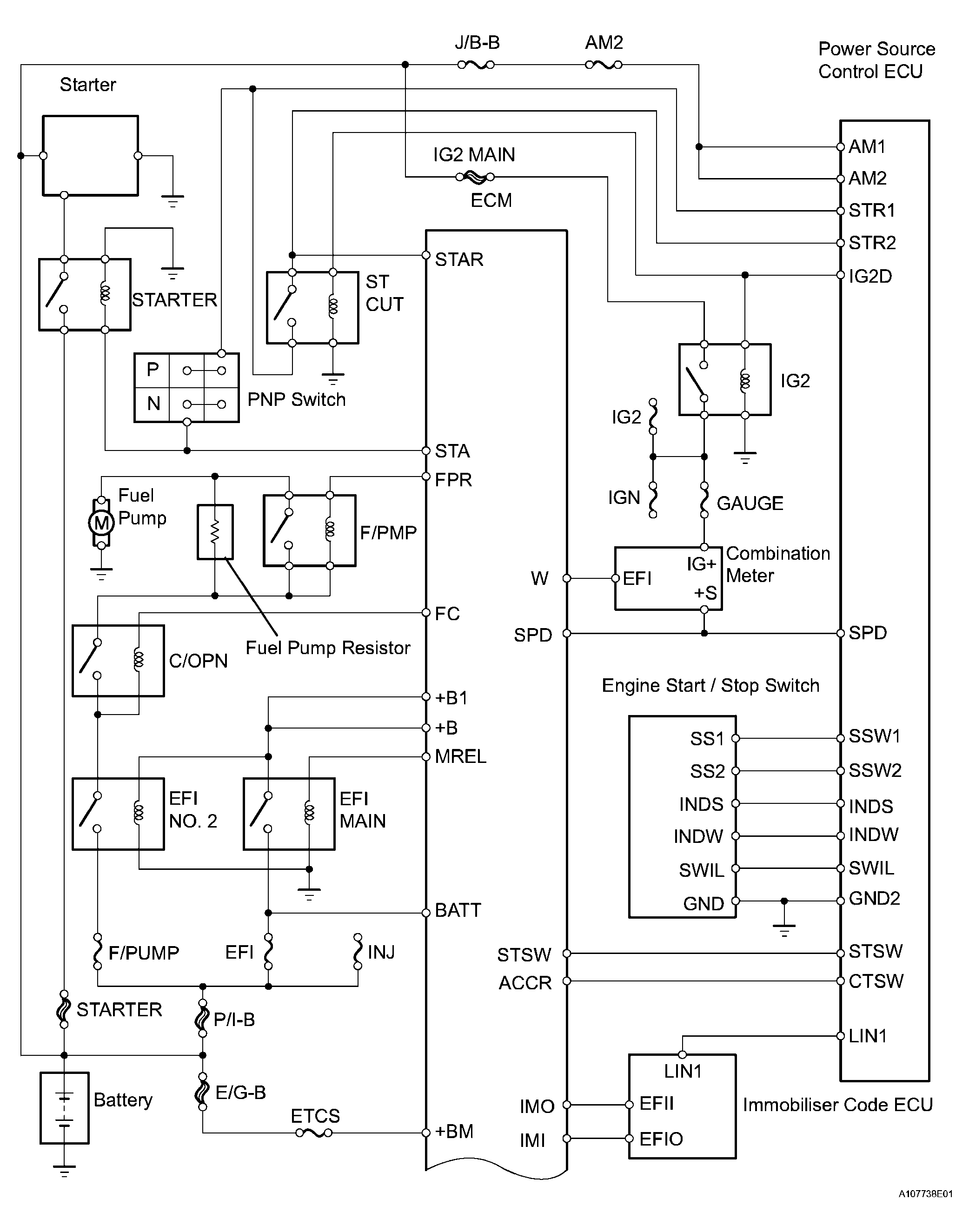

Fig 1: Identifying System Diagram (1 Of 5)
G04026763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

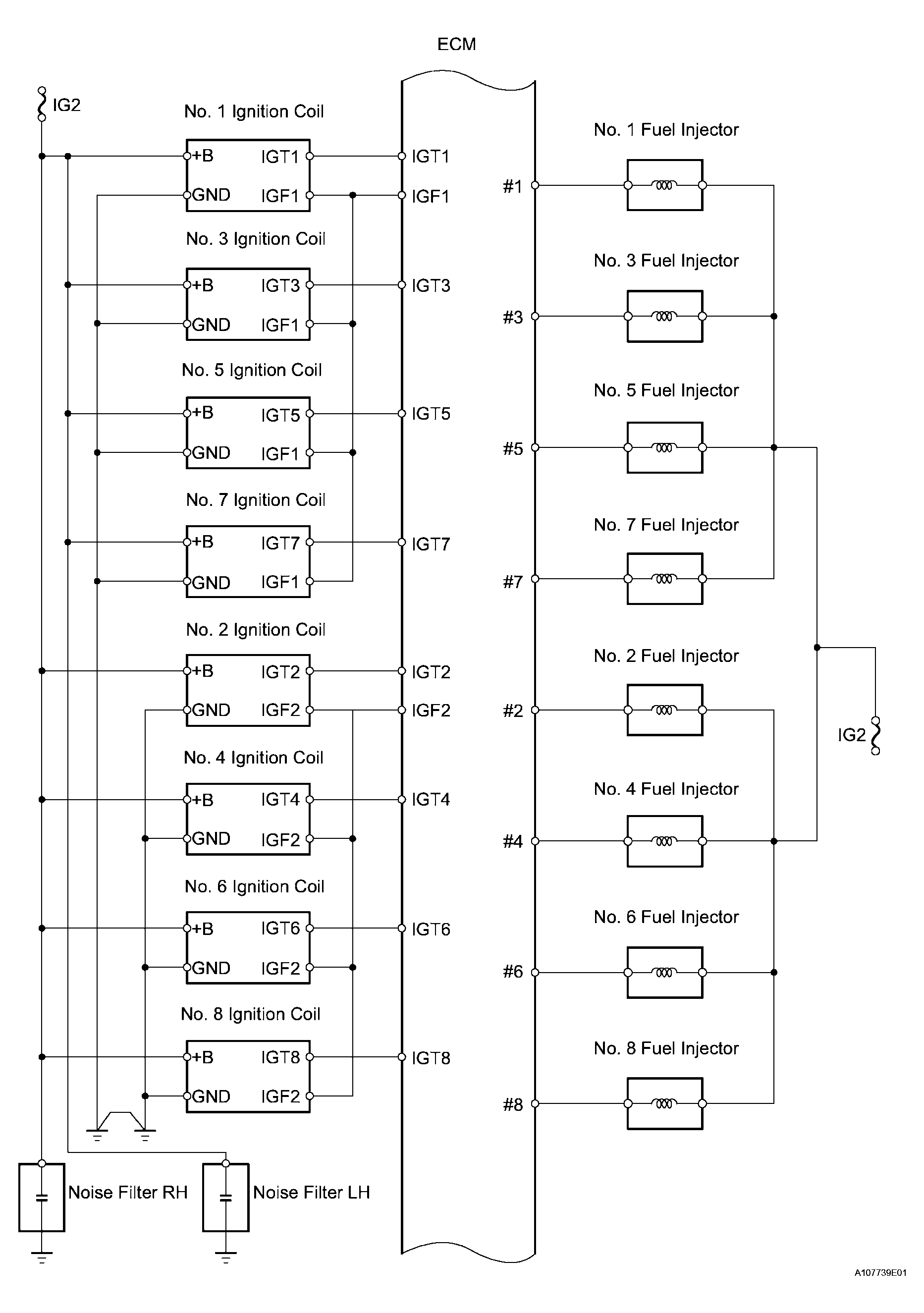

Fig 2: Identifying System Diagram (2 Of 5)
G04026764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

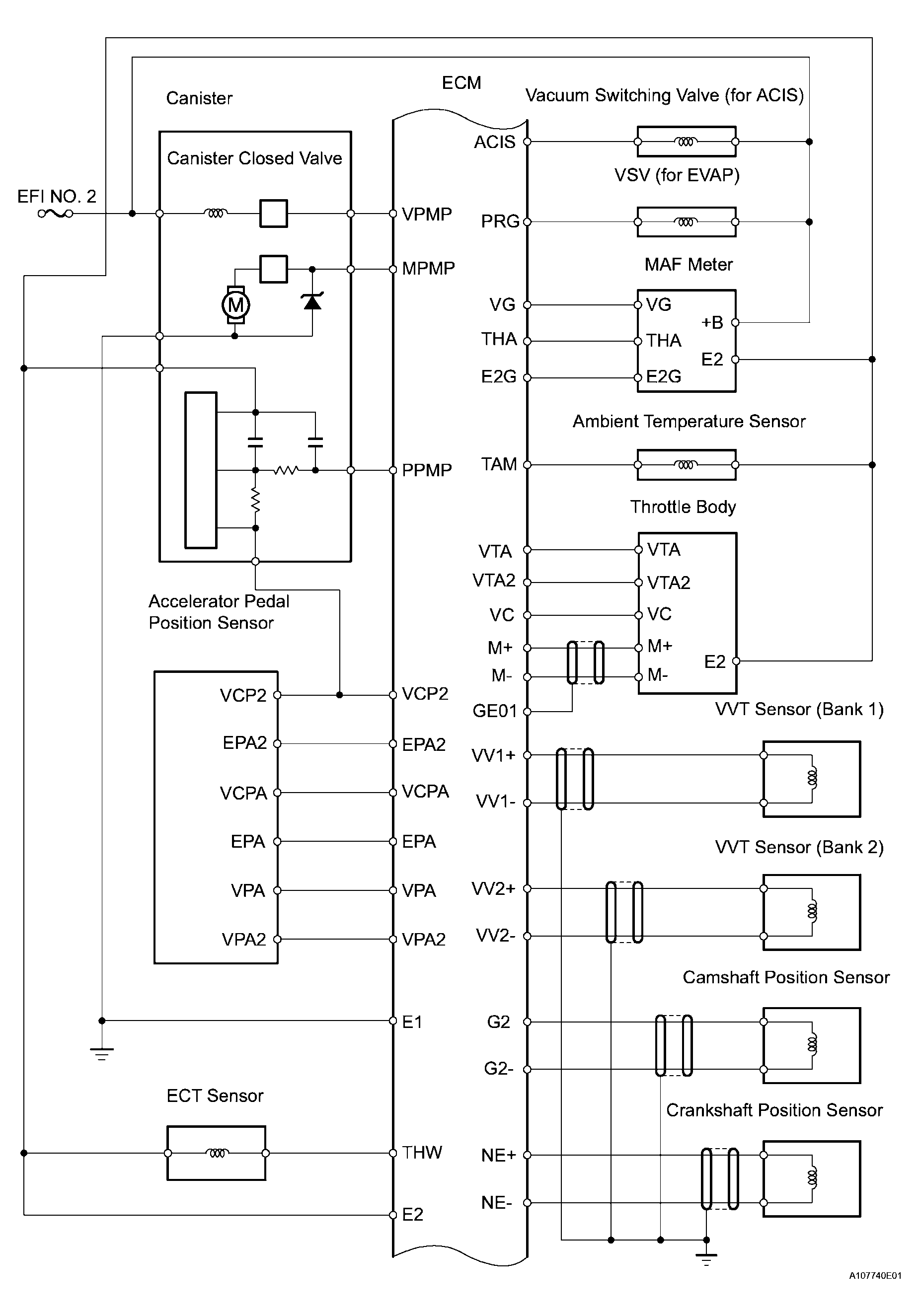

Fig 3: Identifying System Diagram (3 Of 5)
G04026765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

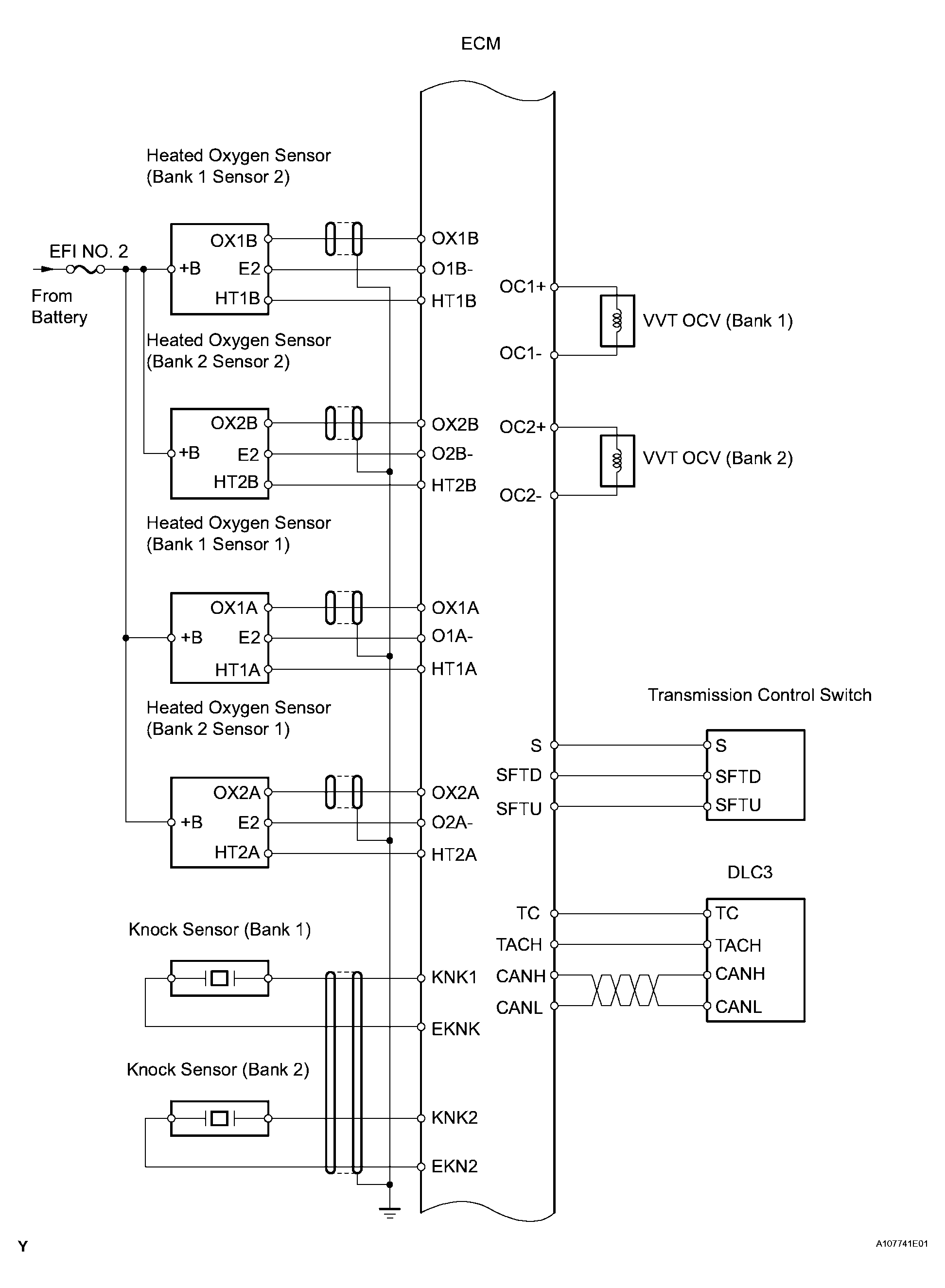

Fig 4: Identifying System Diagram (4 Of 5)
G04026766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

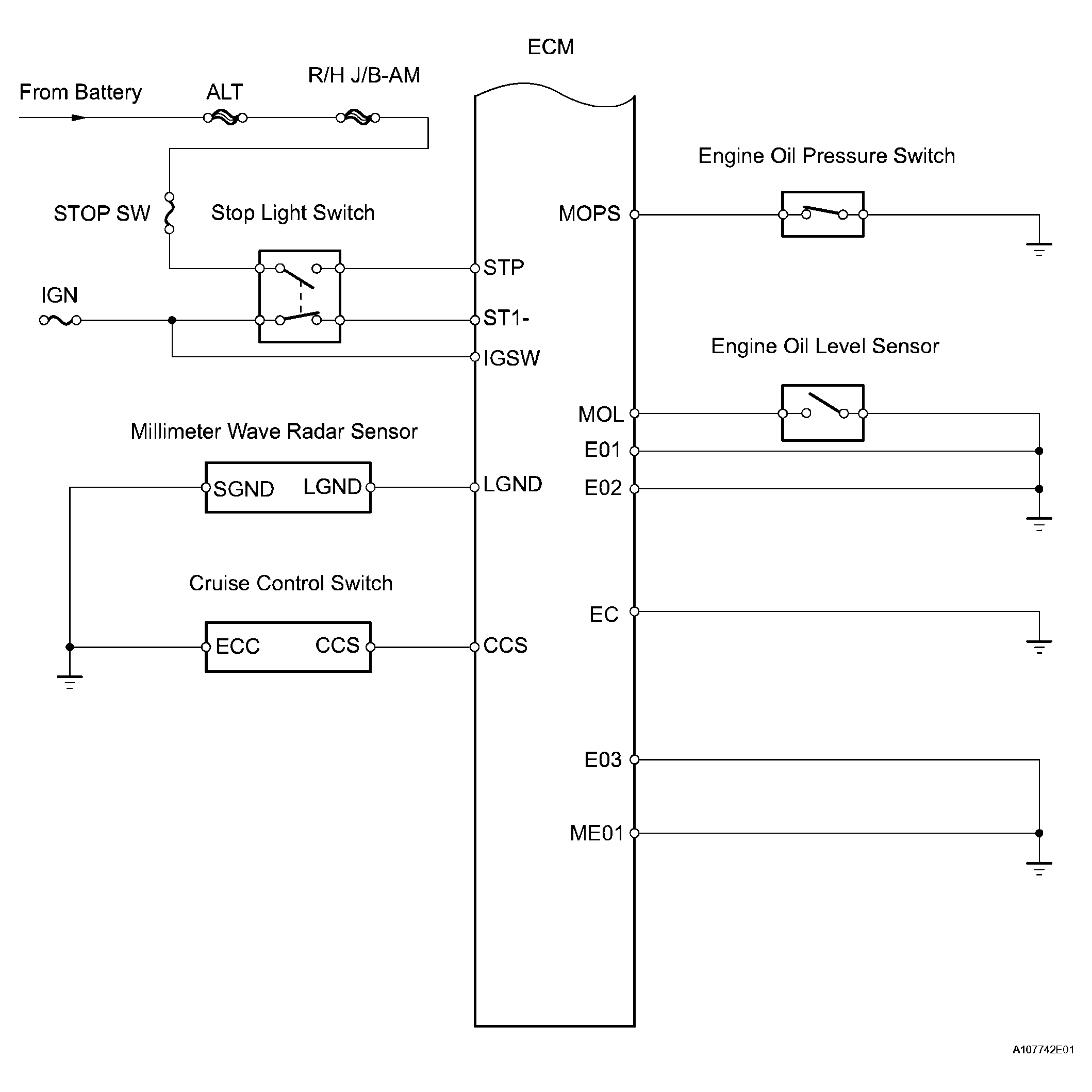

Fig 5: Identifying System Diagram (5 Of 5)
G04026767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
