Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY (See FRONT SEAT ASSEMBLY )
REMOVE FRONT SEAT ASSEMBLY (See FRONT SEAT ASSEMBLY )
REMOVE SEAT POSITION SENSOR
1. Using a "Torx" socket wrench (T30), remove the "Torx" screw and seat position sensor with sensor protector.
2. Disconnect the connector.

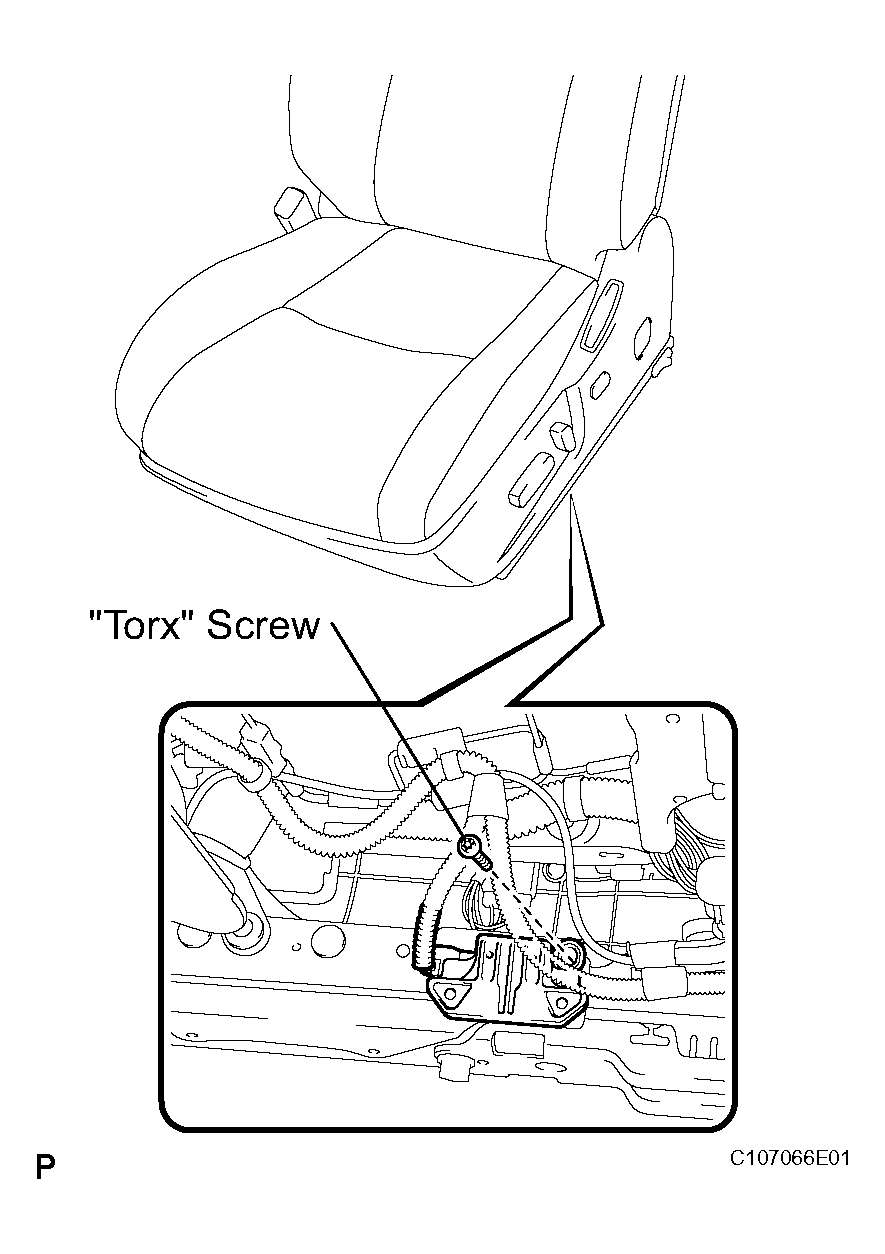

  Fig 1: Identifying "Torx" Screw And Seat Position Sensor With Sensor Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Separate the seat slide position sensor protector from the seat position sensor.

  Fig 2: Identifying Seat Slide Position Sensor Protector From Seat Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
