Side Airbag Sensor: Installation

WARNING: This page is about a different car, the 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SIDE AIRBAG SENSOR
    1. Check that the engine switch is off.
    2. Check that the battery negative (-) terminal is disconnected.
      CAUTION: After disconnecting the negative battery terminal, wait for at least 90 seconds before starting the operation.
    3. Install the side airbag sensor with the 2 bolts.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      NOTE:
      • If the side airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
      • When installing the side airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
    4. Check that there is no looseness in the installation parts of the side airbag sensor.
    5. Connect the connector.

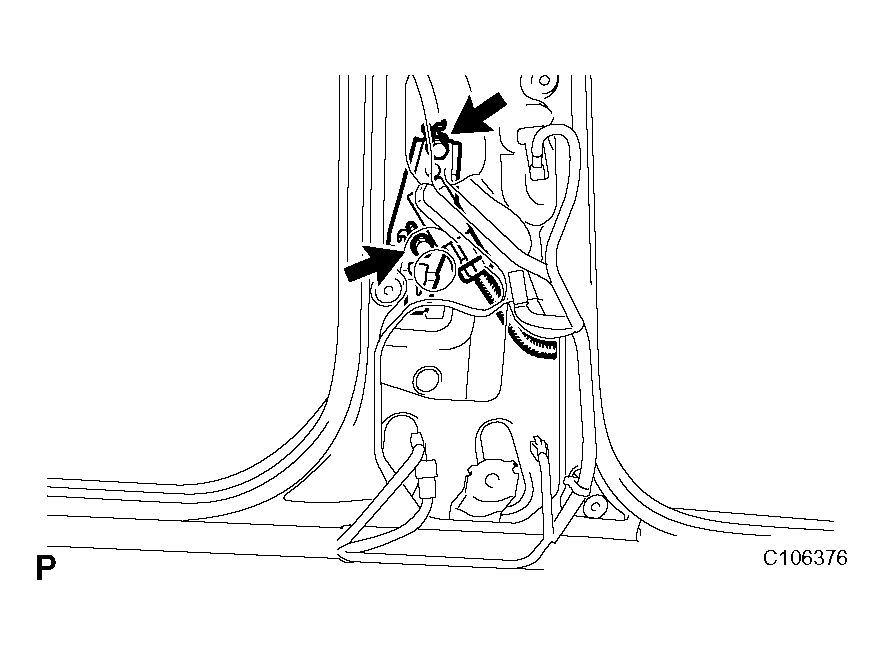

      Fig 1: Identifying Side Airbag Sensor
      G04021263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL WIRING HARNESS PROTECTOR
    1. Engage the 3 claws (A) and install the wiring harness protector to the body.
    2. Connect the connector.
    3. Engage the 2claws (B) and close the protector cover.
    4. Install the hole plug.

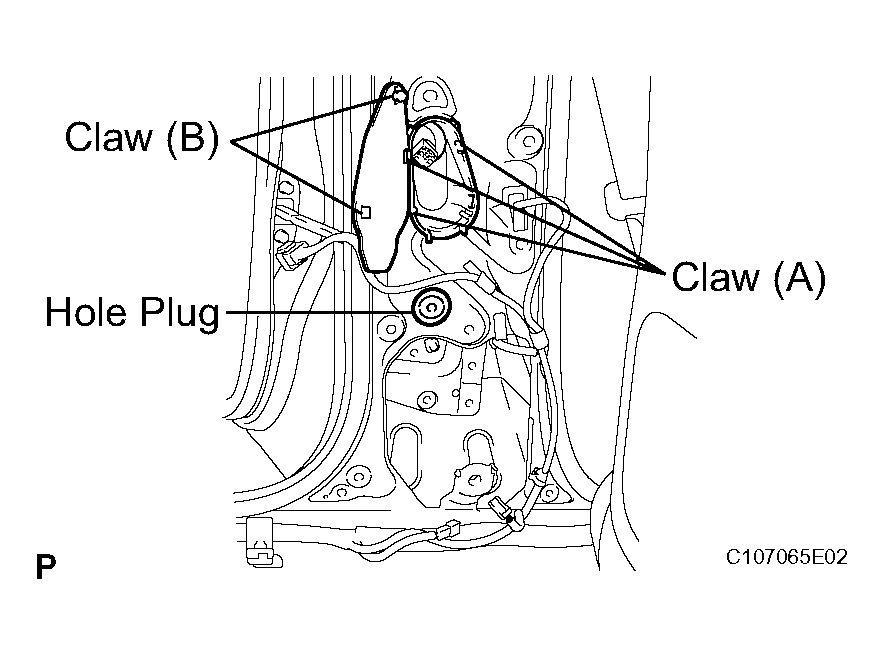

      Fig 2: Identifying Wiring Harness Protector
      G04021264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT SEAT BELT RETRACTOR COVER
    1. Engage the claw and install the front seat belt retractor cover to the body.

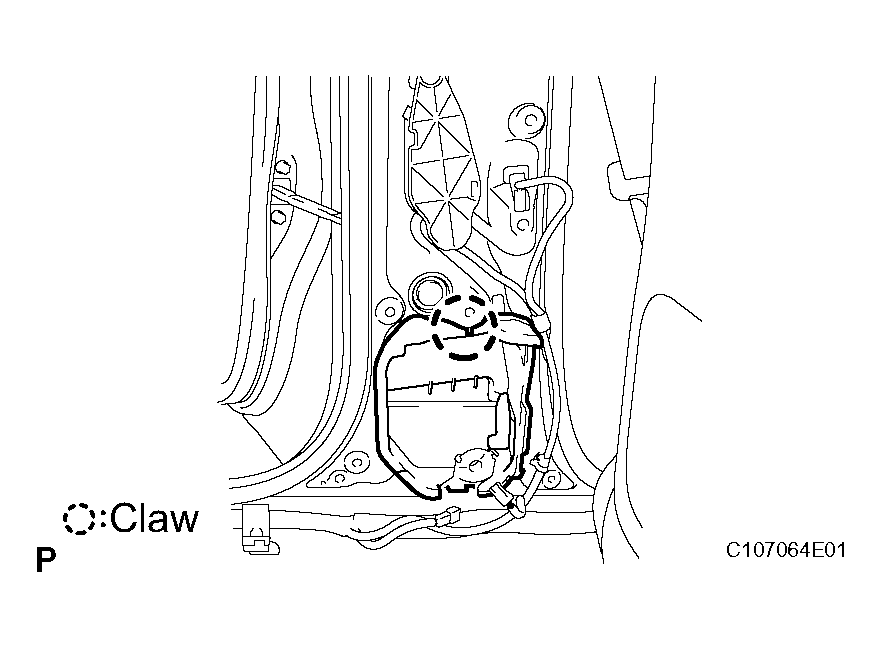

      Fig 3: Identifying Front Seat Belt Retractor Cover
      G04021265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT SEAT OUTER BELT ASSEMBLY
    1. Install the front seat outer belt assembly with the 2 bolts. Be sure to tighten bolt A before tightening bolt B.

      Torque: Bolt A

      7.5 N*m (77 kgf*cm, 66 in.*lbf)

      Bolt B

      42 N*m (428 kgf*cm, 31 ft.*lbf)

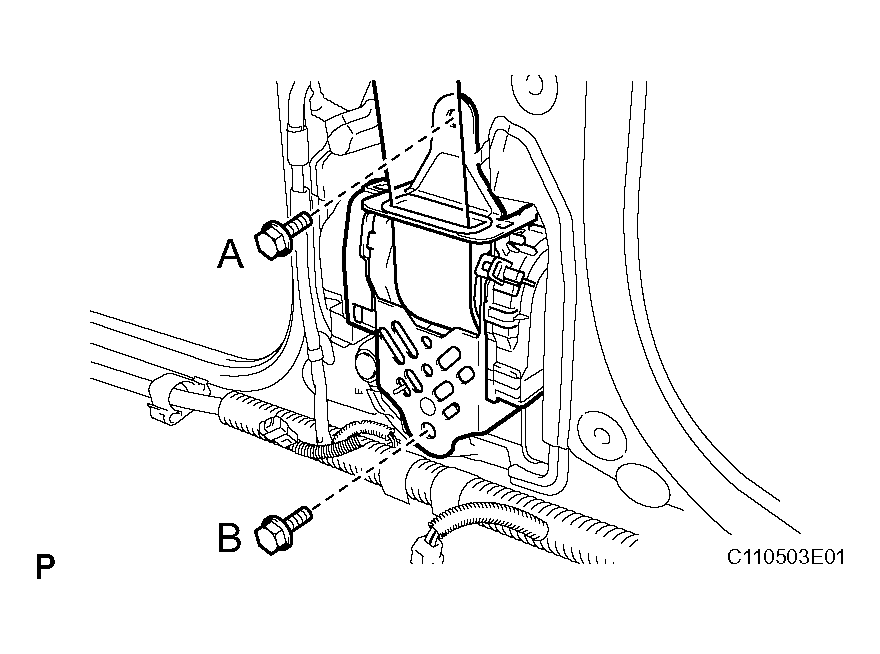

      Fig 4: Identifying Front Seat Outer Belt Assembly
      G04021266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the pretensioner connector labeled A, as show in the illustration.
    3. Connect the tension reducer connector labeled B.
    4. Connect the pre-collision safety connector labeled C.

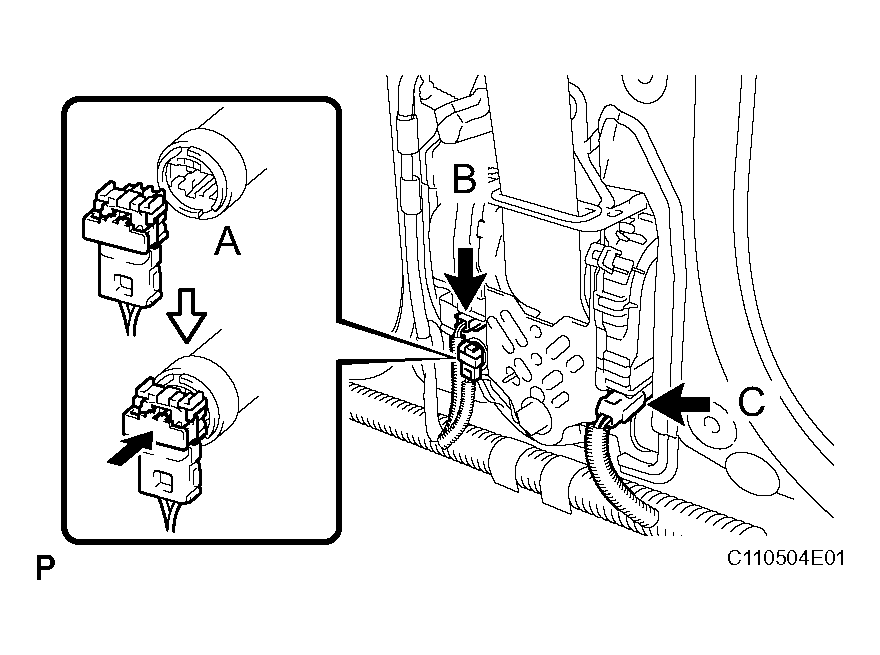

      Fig 5: Connecting Pretensioner Connector
      G04021267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL CENTER PILLAR GARNISH LOWER (See  INSTALLATION  )
  6. INSTALL REAR DOOR SCUFF PLATE (See  INSTALLATION  )
  7. INSTALL FRONT DOOR SCUFF PLATE (See  INSTALLATION  )
  8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  9. PERFORM INITIALIZATION
  10. INSPECT SRS WARNING LIGHT
