INSTALL STEERING PAD
1. Support the steering pad with one hand as shown in the illustration.
2. Connect the 2 connectors to the steering pad.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
3. Connect the horn connector.

  Fig 1: Identifying Horn Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Confirm that the circumference groove of the "Torx" screw fits in the screw case, and place the steering pad onto the steering wheel assembly.
5. Using a "Torx" socket wrench (T30), tighten the 2 "Torx" screws.
  Torque: 8.8 N*m (90 kgf*cm, 78 in.*lbf)
INSTALL STEERING WHEEL NO.3 COVER LOWER
INSTALL STEERING WHEEL NO.2 COVER LOWER
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

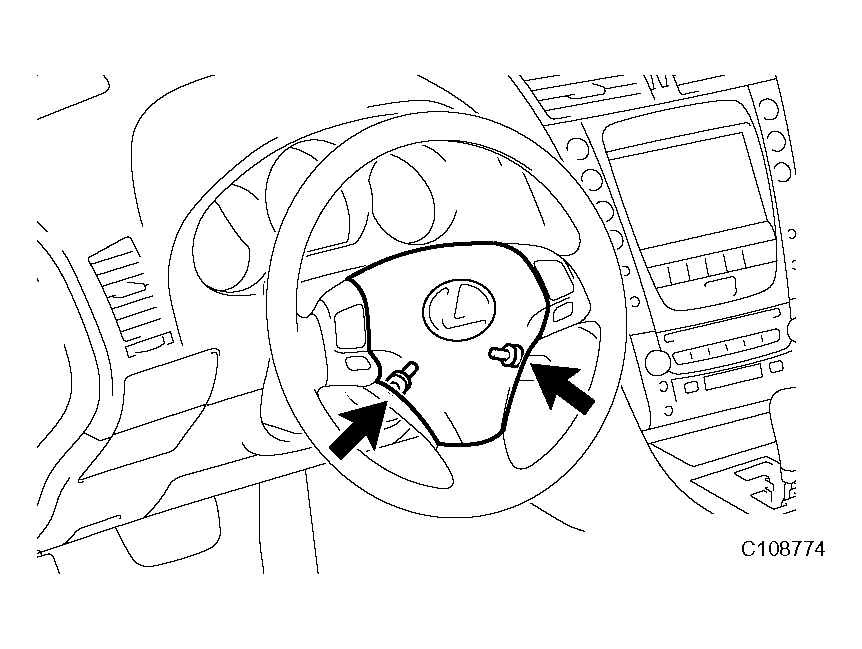

Fig 2: Identifying Steering Pad
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT STEERING PAD
1. With the steering pad installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the steering pad with a new one:
  Cuts, minute cracks or marked discoloration on the steering pad top surface or in the grooved portion.
2. Make sure that the horn sounds.
  HINT:

  If the horn does not sound, inspect the horn system.

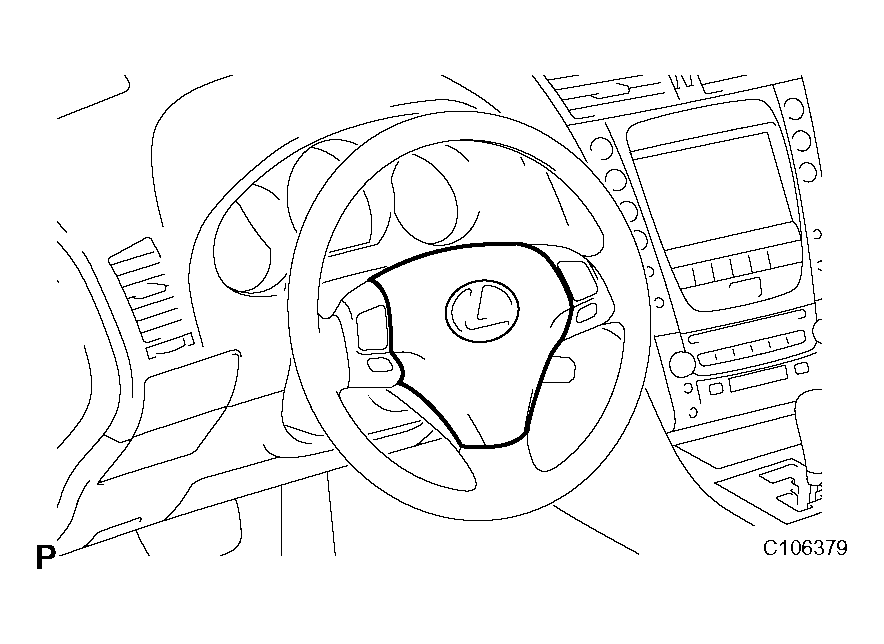

  Fig 3: Inspecting Steering Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
INSPECT SRS WARNING LIGHT
