Blower Unit: Components

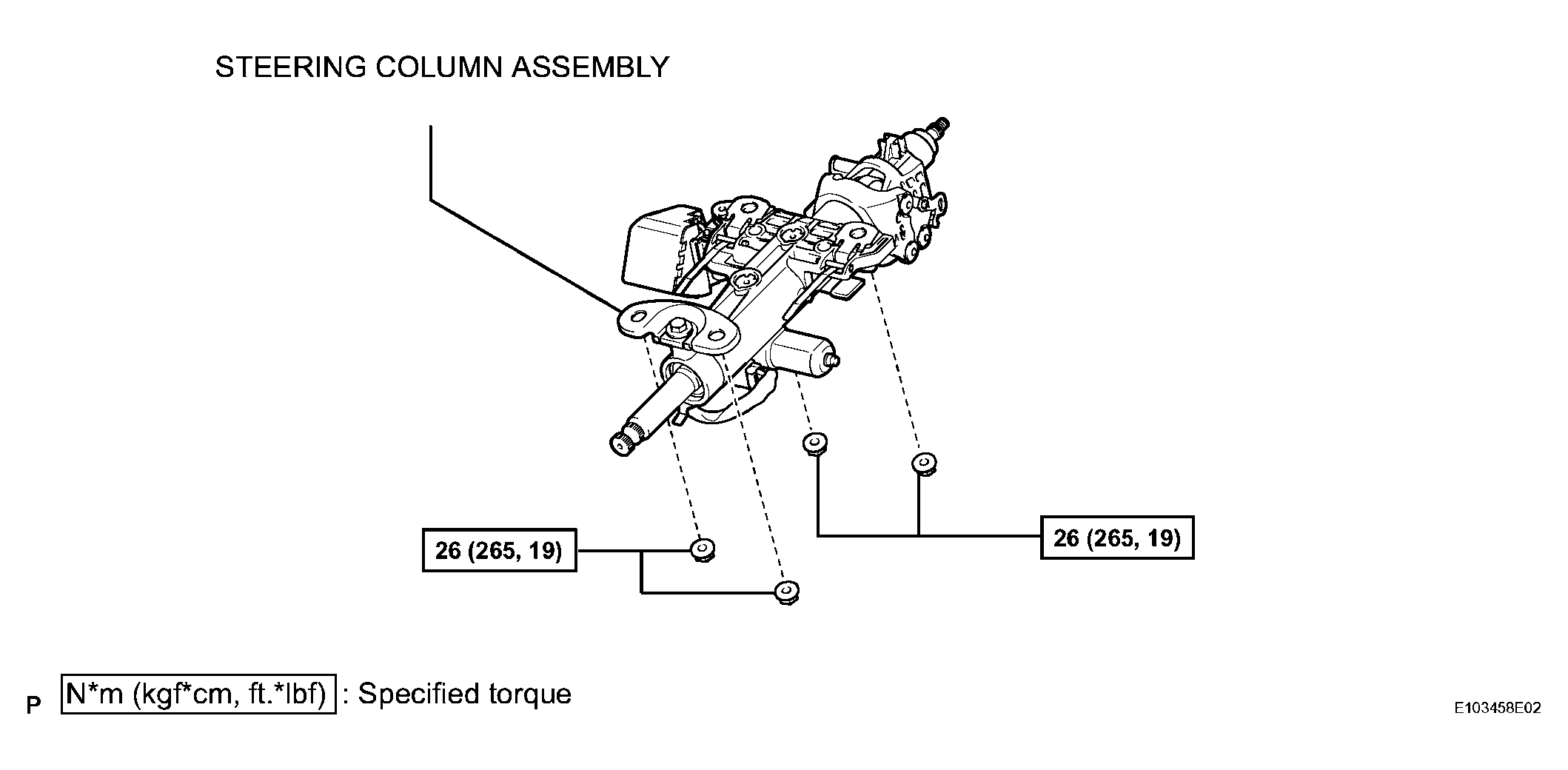

Fig 1: Blower Unit And Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

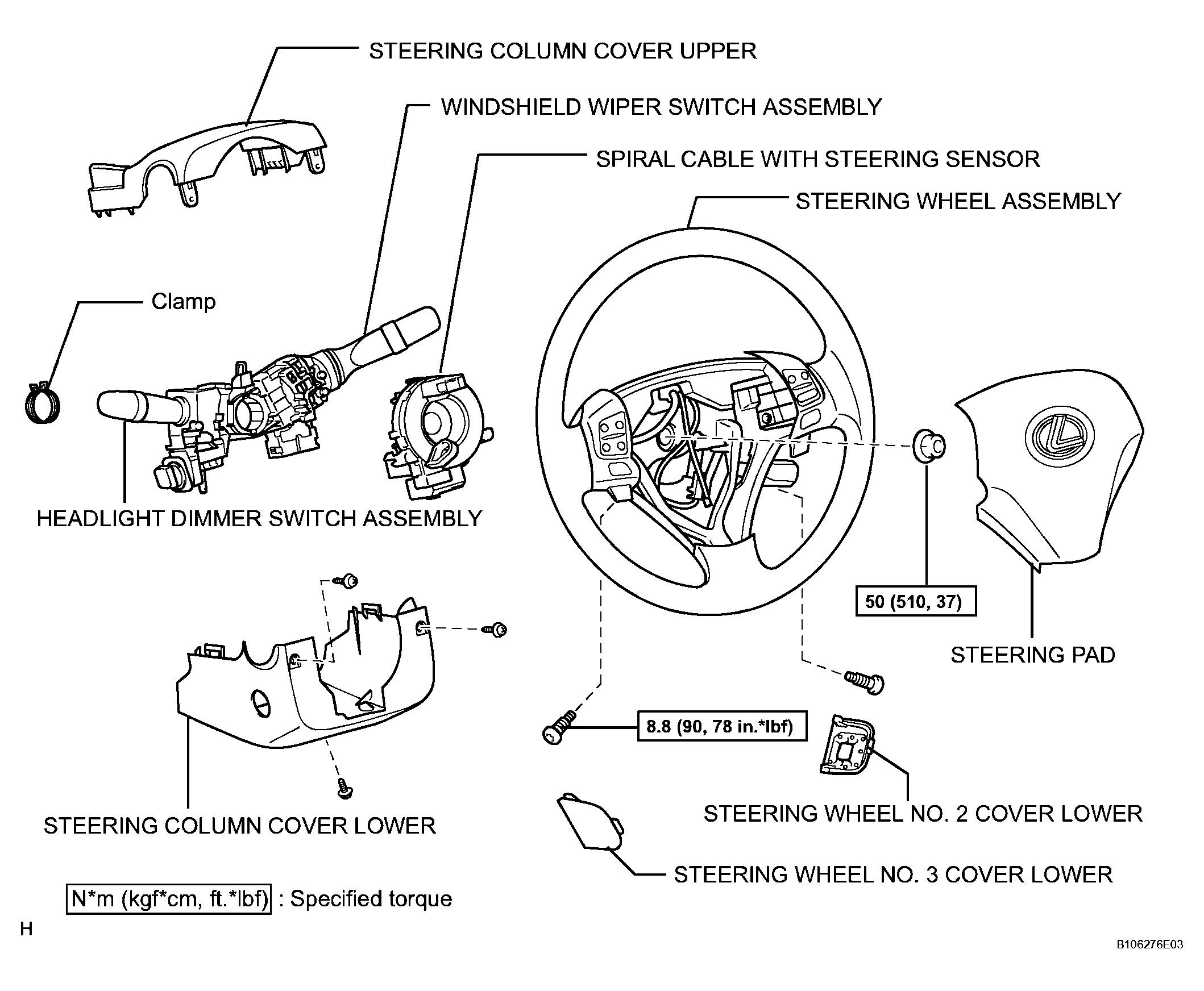

Fig 2: Blower Unit And Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

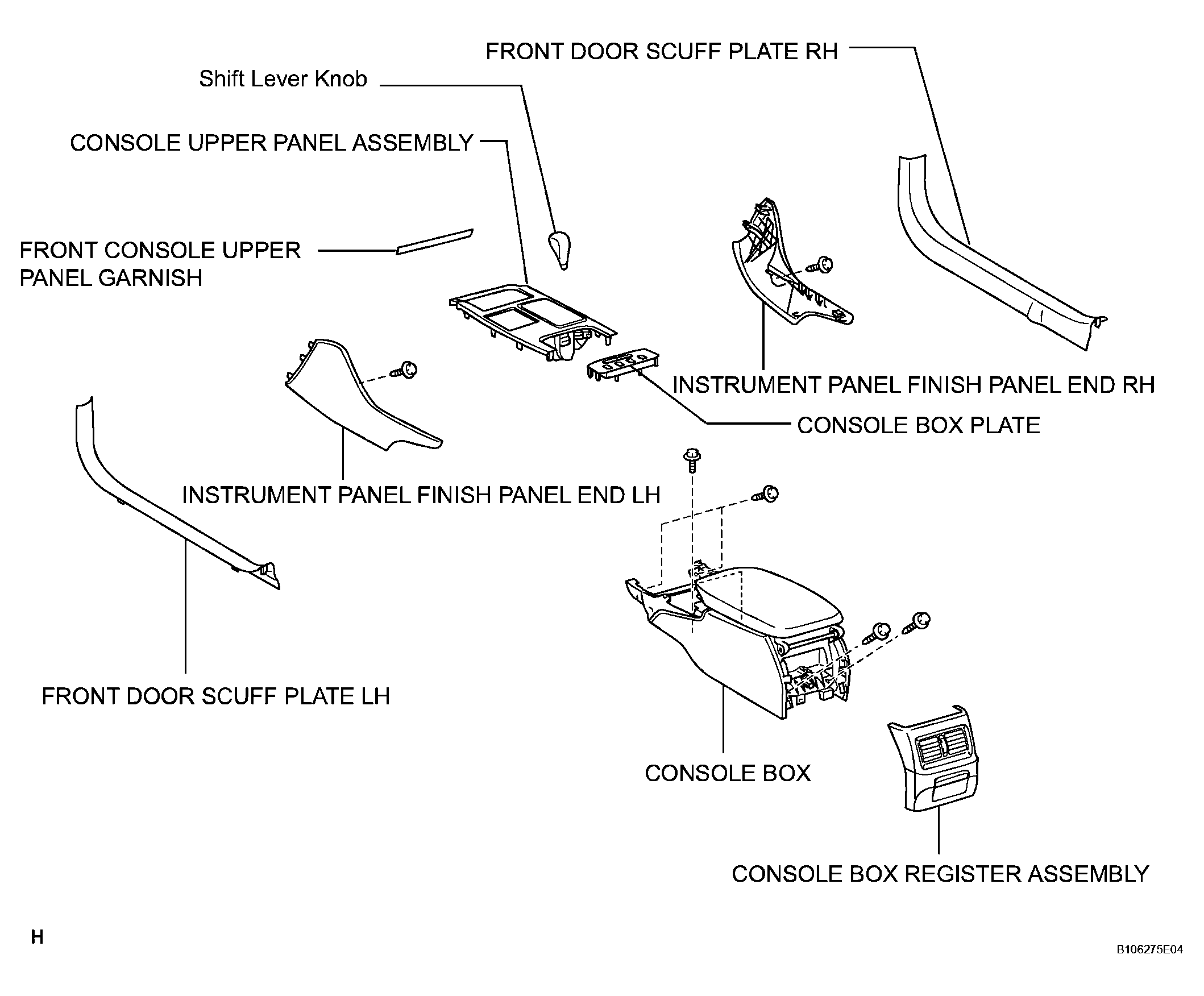

Fig 3: Identifying Blower Unit And Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

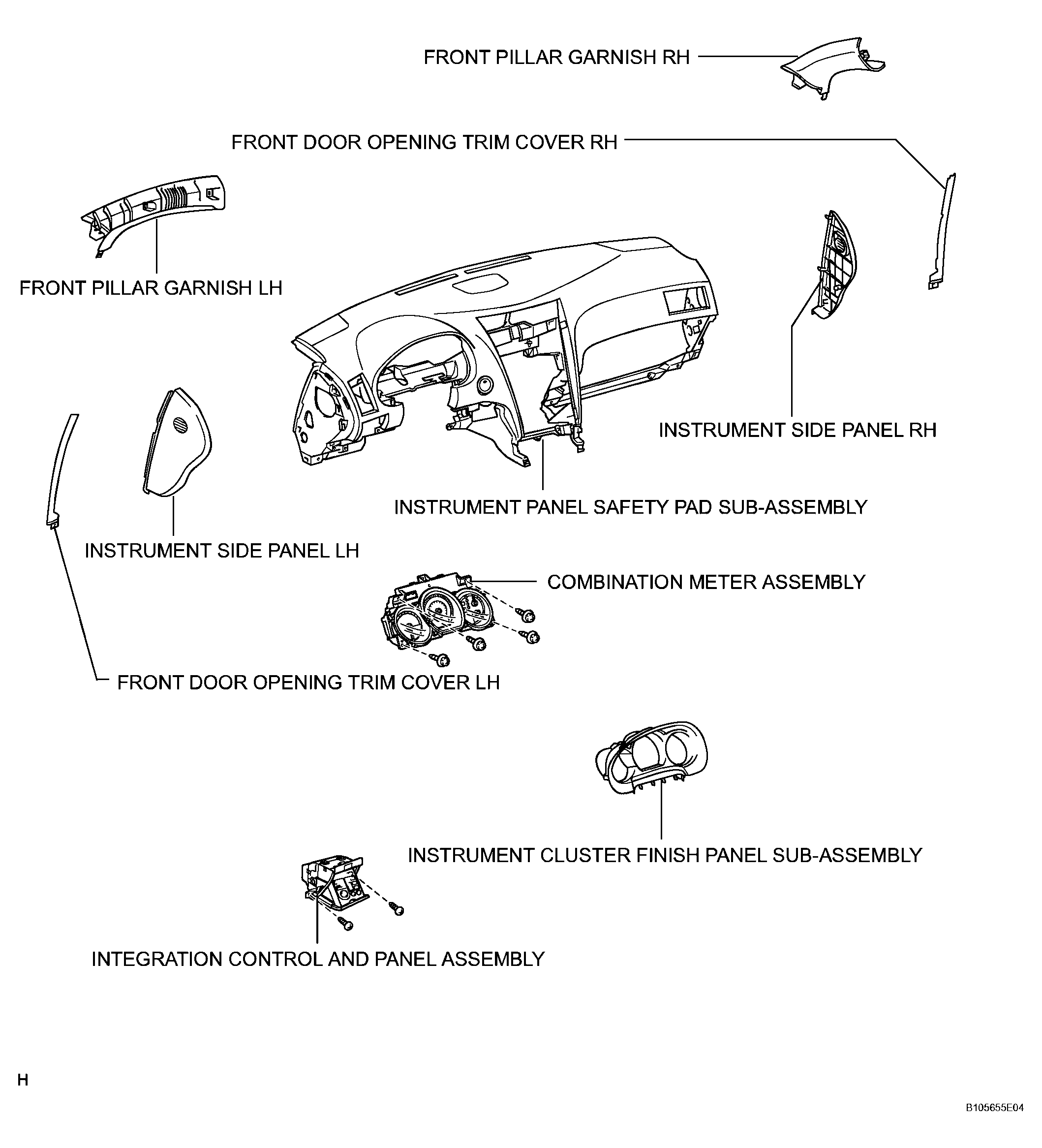

Fig 4: Identifying Blower Unit And Components (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

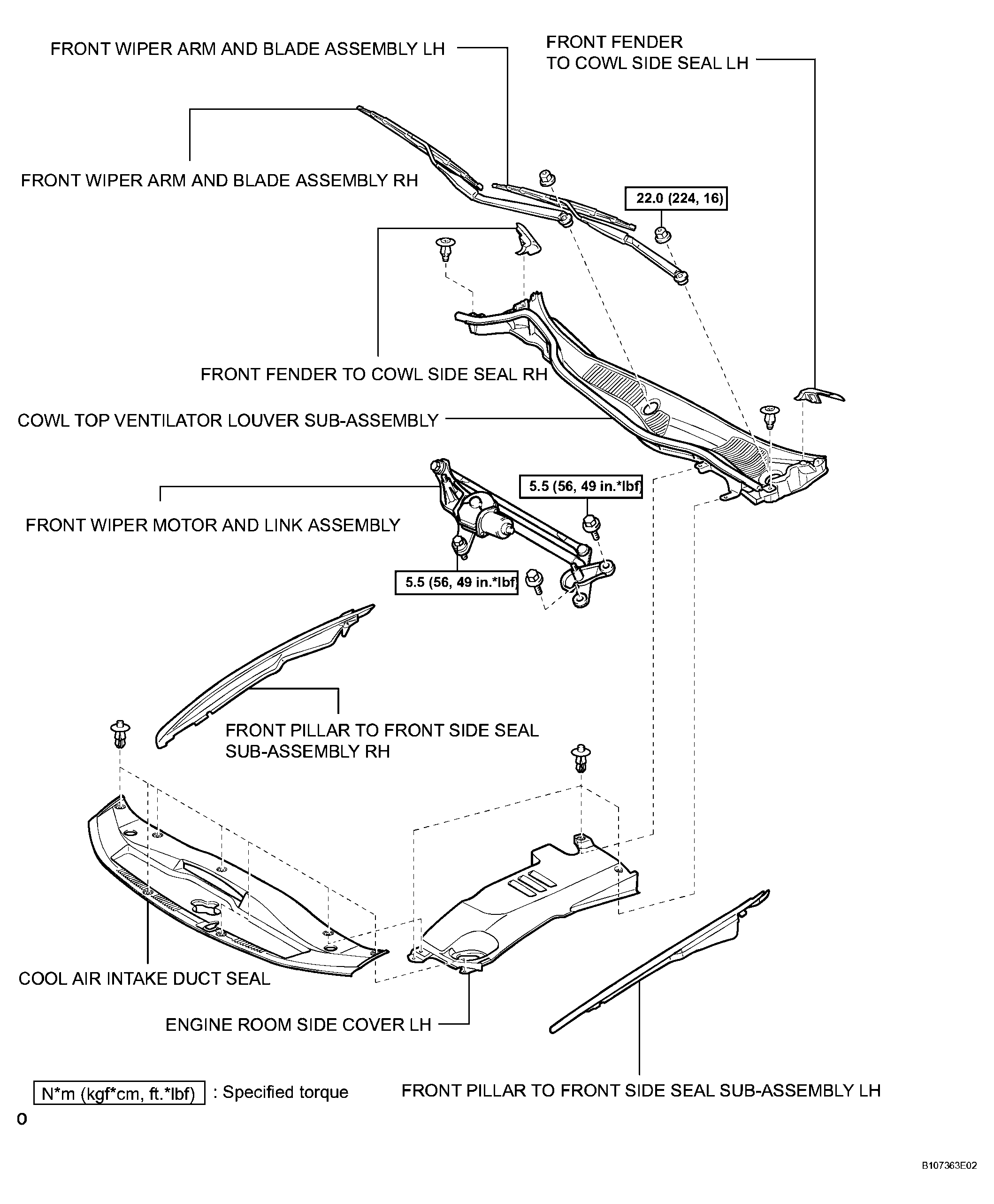

Fig 5: Blower Unit And Replacement Components With Torque Specifications (5 Of 7)

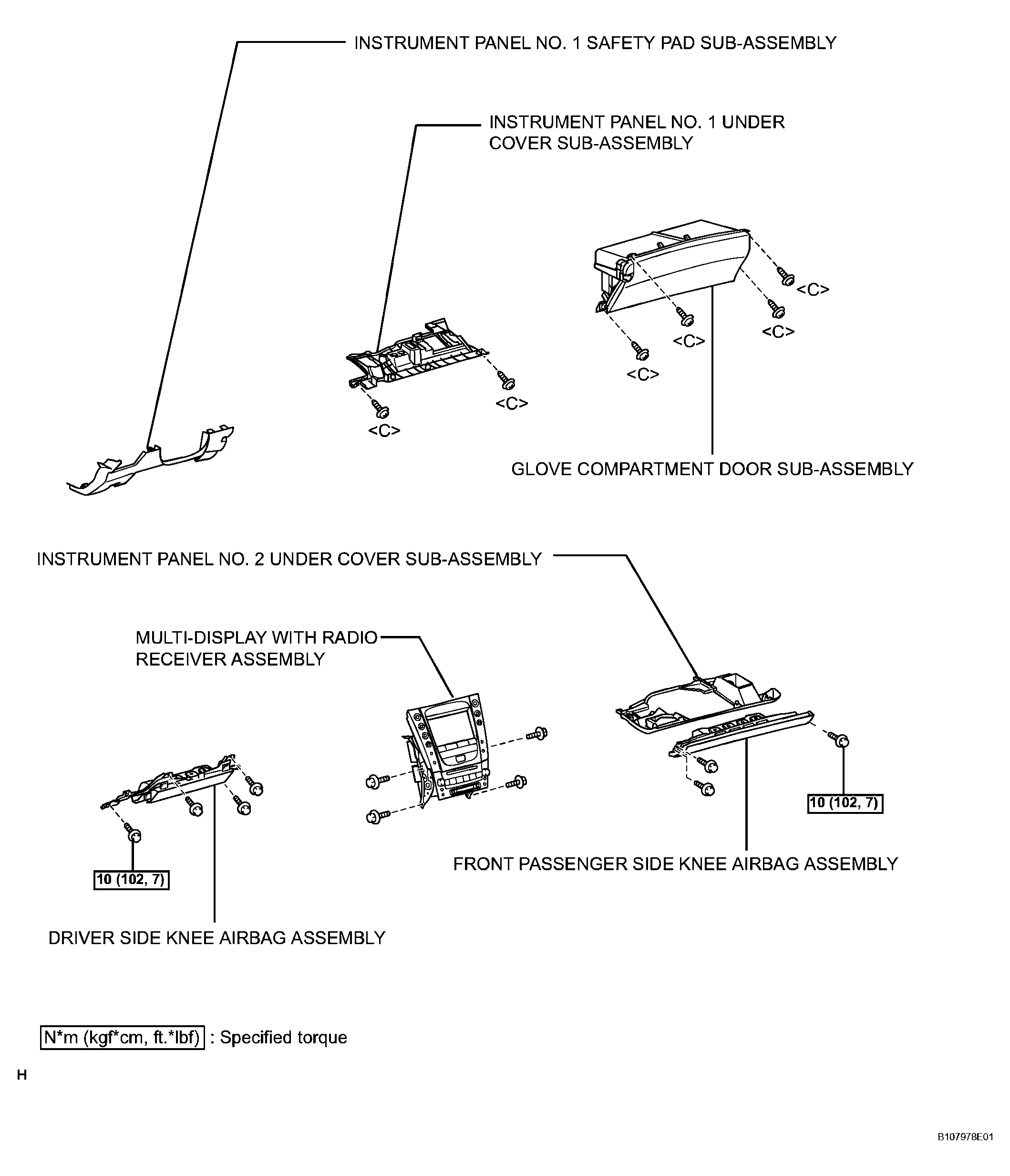

Fig 6: Blower Unit And Replacement Components With Torque Specifications (6 Of 7)

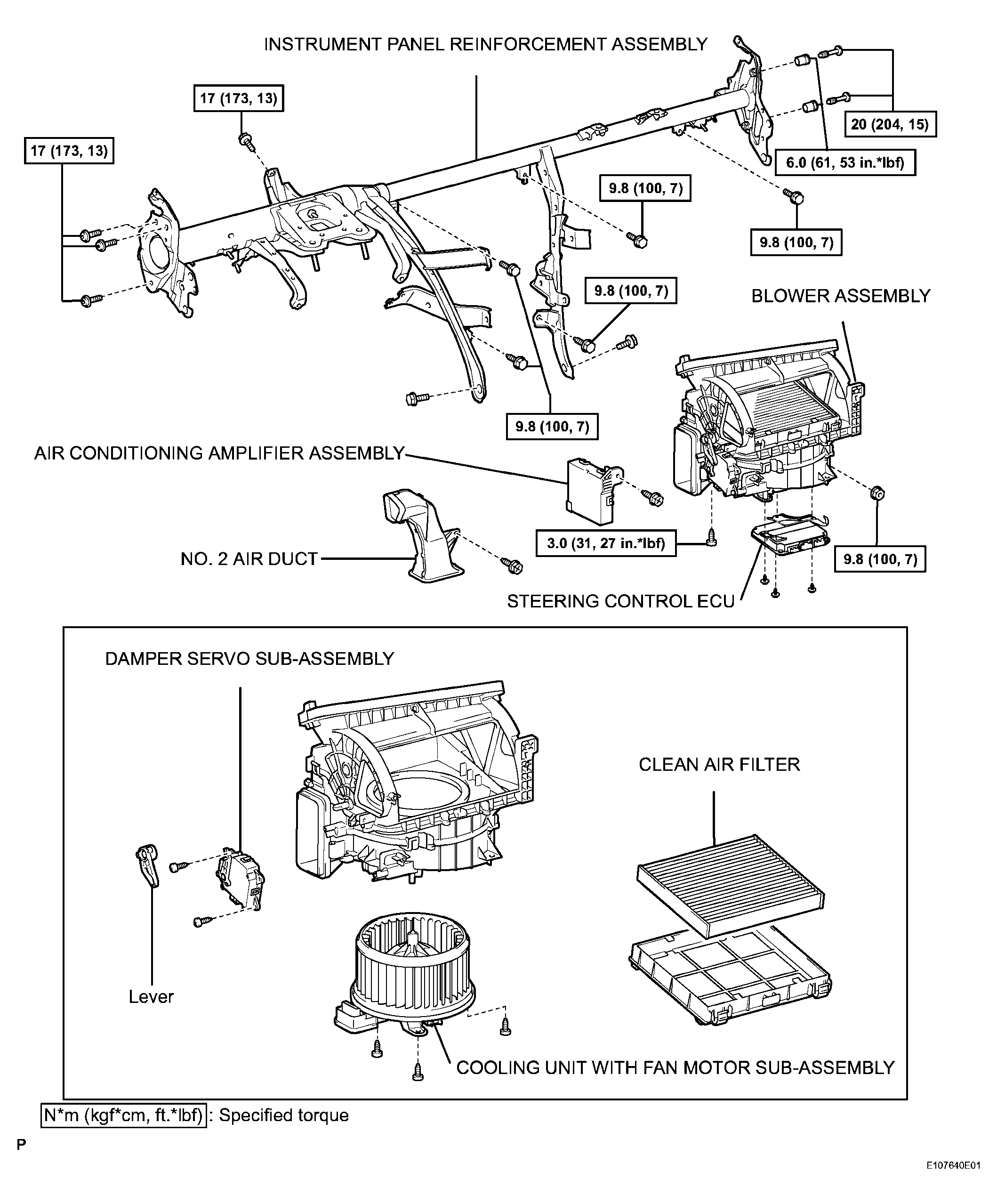

Fig 7: Blower Unit And Replacement Components With Torque Specifications (7 Of 7)
