Blower Unit: Disassembly

REMOVE DAMPER SERVO SUB-ASSEMBLY
1. Detach the claw and remove the lever.

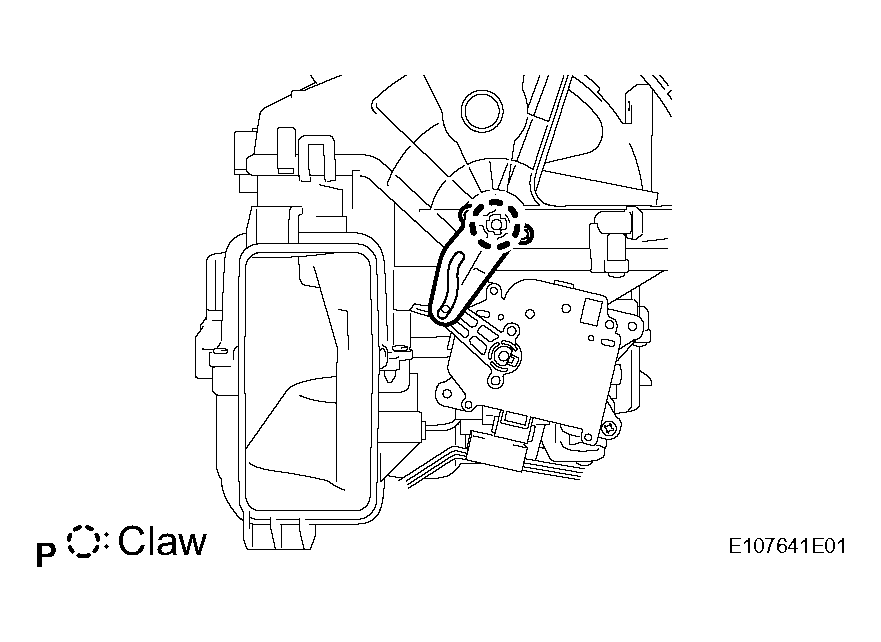

  Fig 1: Identifying Lever And Detaching Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws and damper servo.

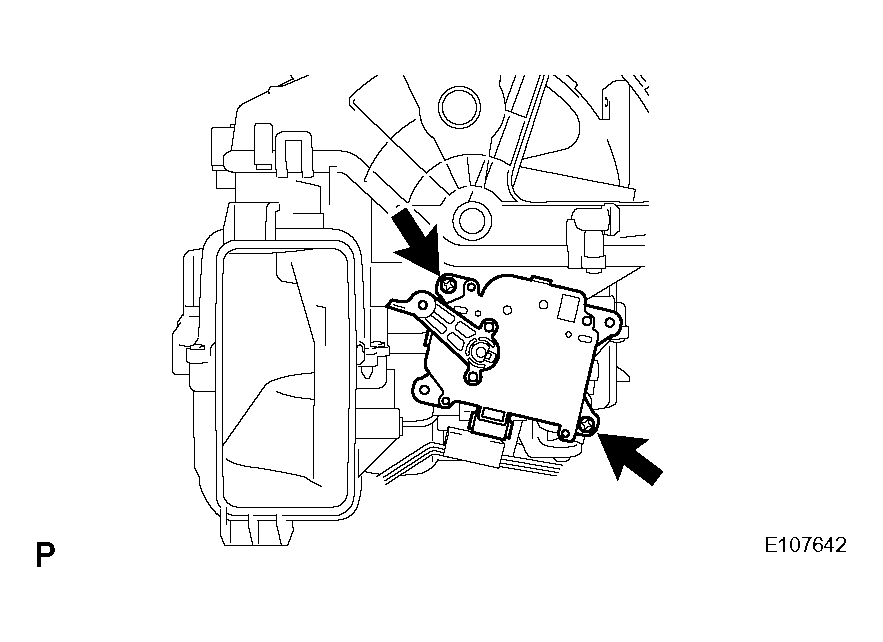

  Fig 2: Identifying Screws And Damper Servo
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CLEAN AIR FILTER
1. Detach the 2 claws and remove the air filter.
  HINT:

  Be sure to turn the engine switch on (IG) and set the A/C to RECIRCULATION mode before removing the air filter.

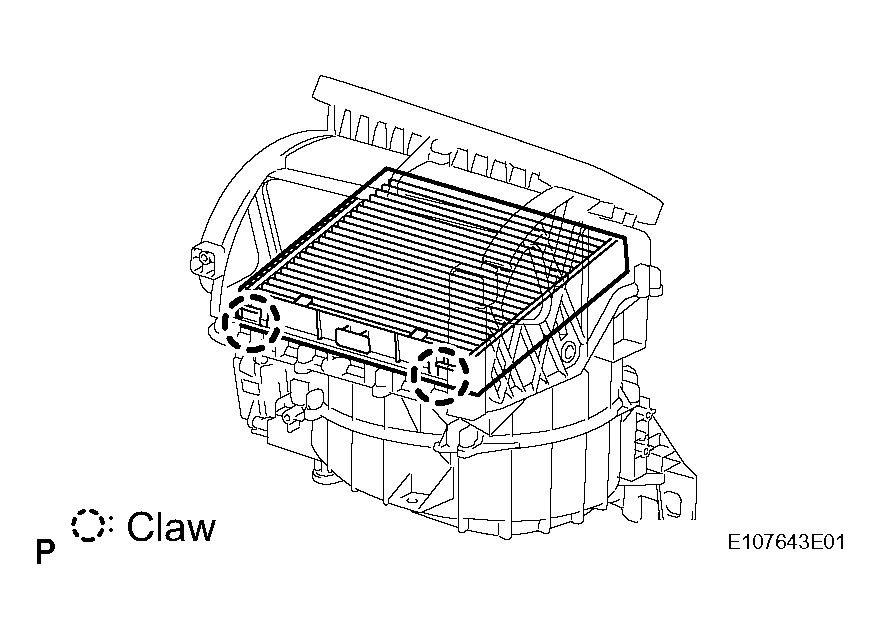

  Fig 3: Identifying Air Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COOLING UNIT WITH FAN MOTOR SUBASSEMBLY
1. Remove the 3 screws and fan motor.

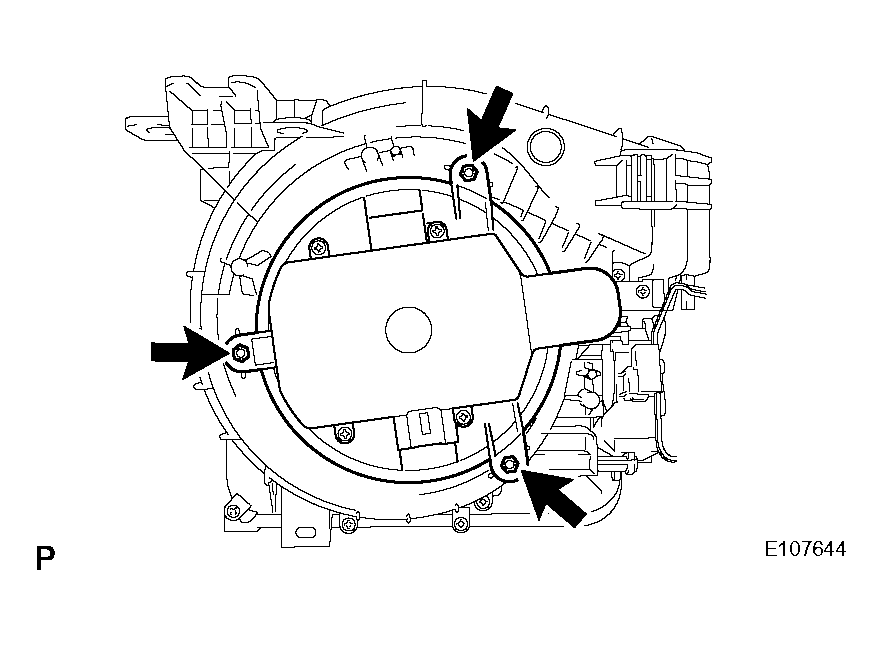

  Fig 4: Identifying Screws And Fan Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
