Blower Unit: Reassembly

  1. INSTALL COOLING UNIT WITH FAN MOTOR SUBASSEMBLY
    1. Install the fan motor with the 3 screws.

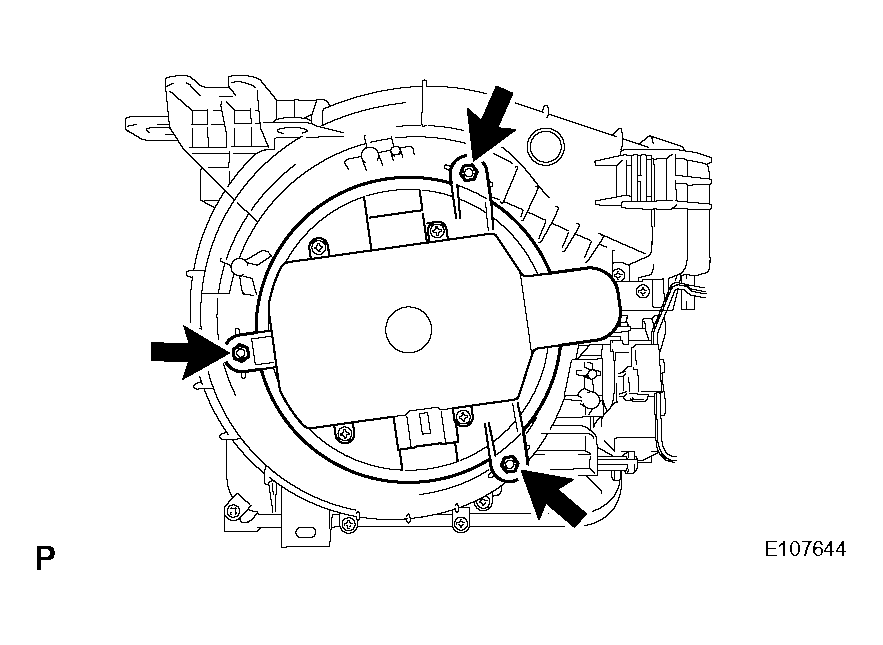

      Fig 1: Identifying Fan Motor With Screws
      G04020783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CLEAN AIR FILTER
    1. Attach the 2 claws to install the air filter.

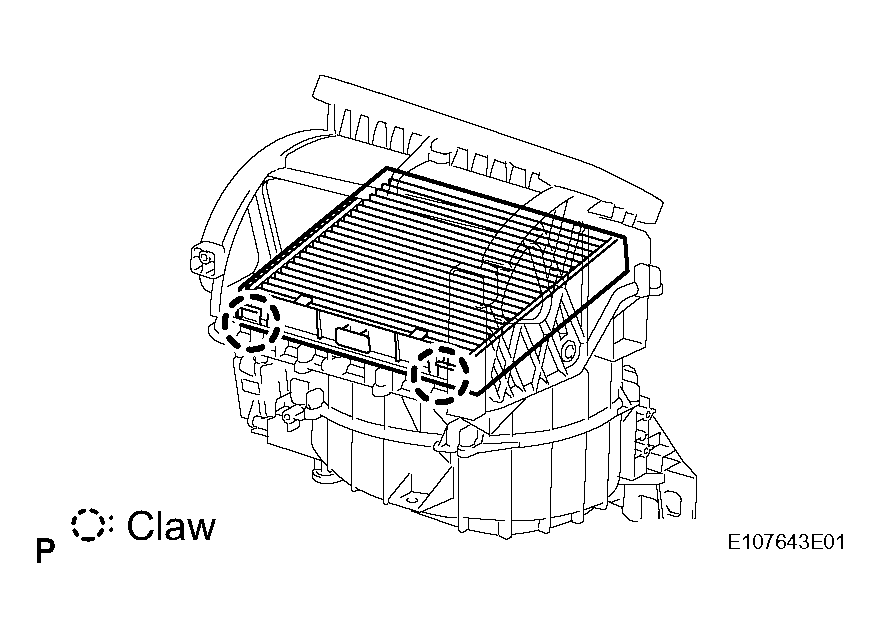

      Fig 2: Identifying Air Filter
      G04020784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL DAMPER SERVO SUB-ASSEMBLY
    1. Install the damper servo with the 2 screws.

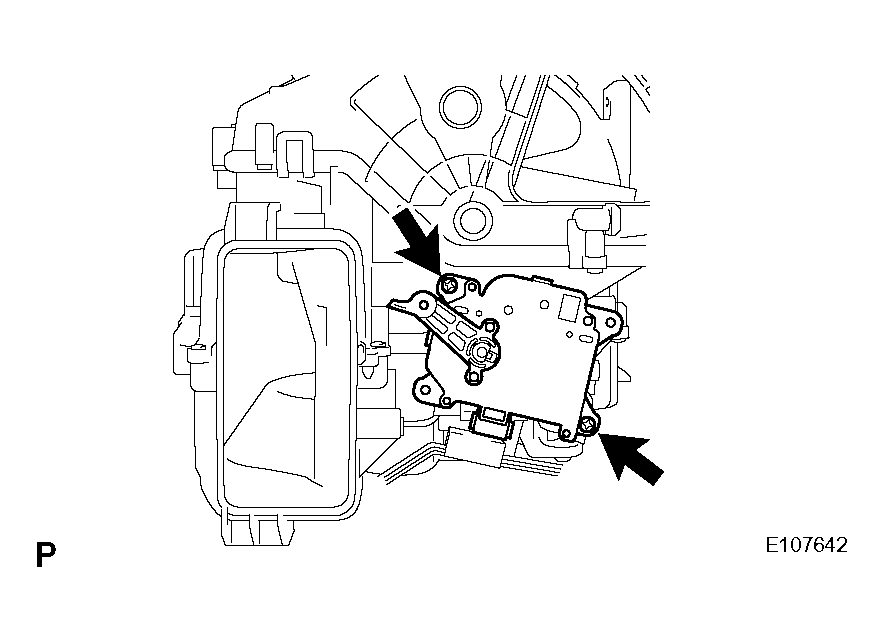

      Fig 3: Identifying Damper Servo With Screws
      G04020785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the claw and install the lever.

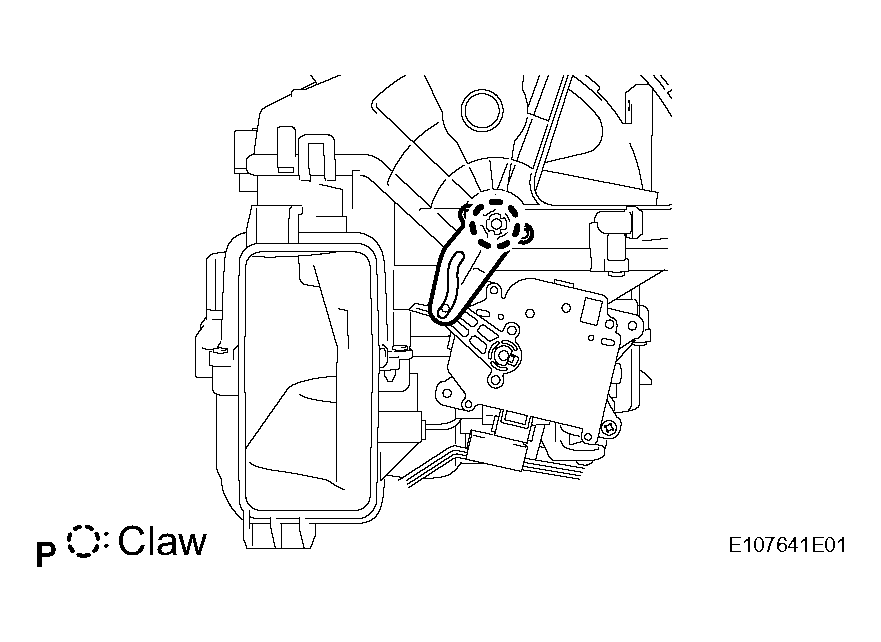

      Fig 4: Identifying Lever And Attaching Claw
      G04020786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
