Rear Seat Inner Belt Assembly: Components

Fig 1: Exploded View Of Rear Seat Inner Belt Assembly With Torque Specifications (1 Of 3)
G04031071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Rear Seat Inner Belt Assembly (2 Of 3)
G04031072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

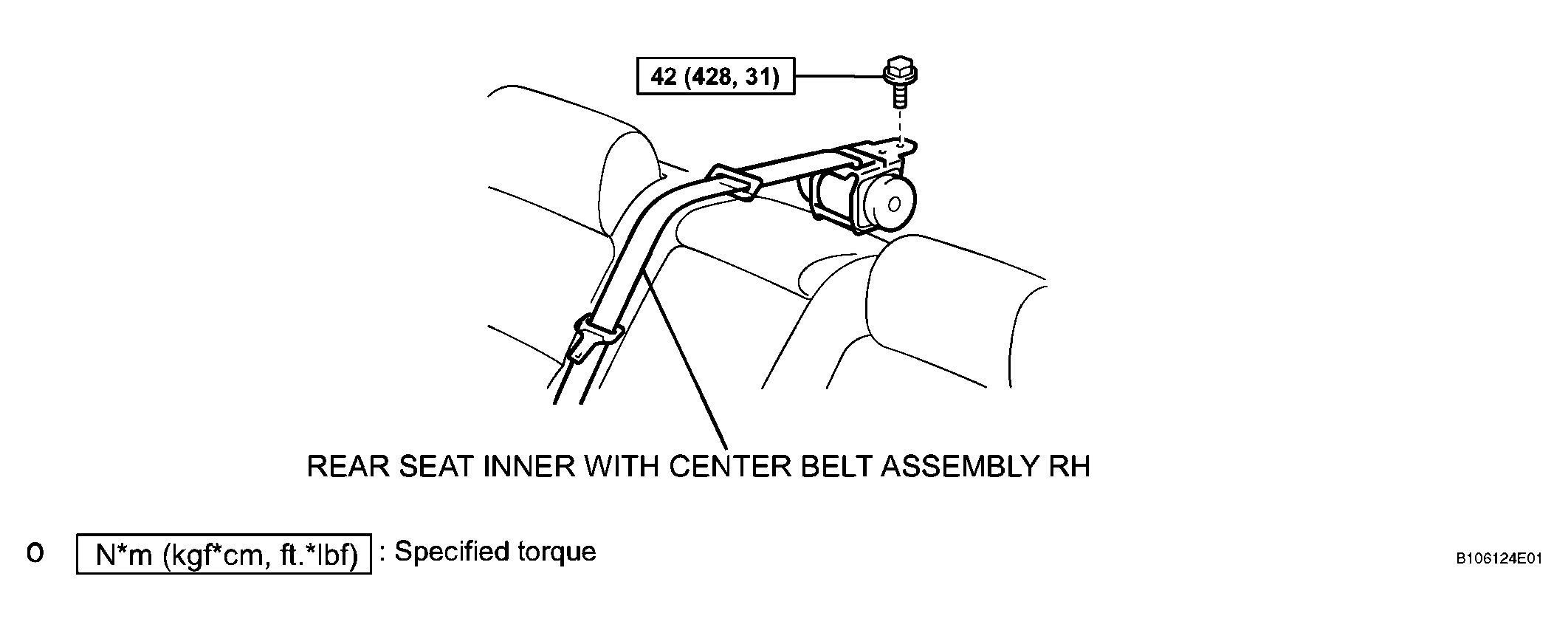

Fig 3: Exploded View Of Rear Seat Inner Belt Assembly With Torque Specifications (3 Of 3)
G04031073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
