Manual Up/Down Function Does Not Operate At Driver Side
›
Wiring Diagram
Manual Up/Down Function Does Not Operate At Driver Side: Wiring Diagram

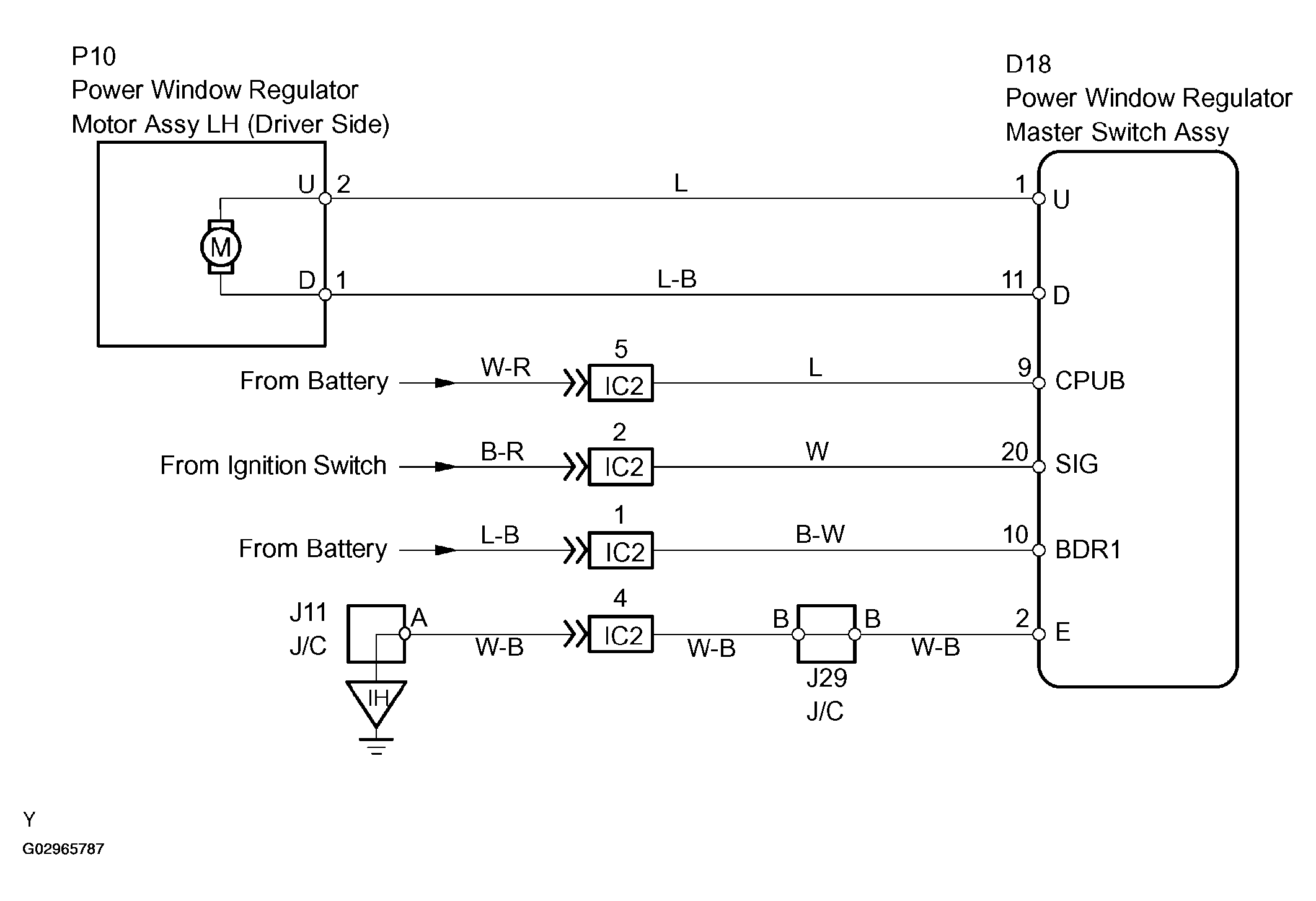

Fig 1: Manual Up/Down Function Does Not Operate At Driver Side Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
