Engine Control System - System And Circuit Testing, On-Vehicle Inspection, Removal, Inspection, Installation
›
EVAP System
›
Wiring Diagram

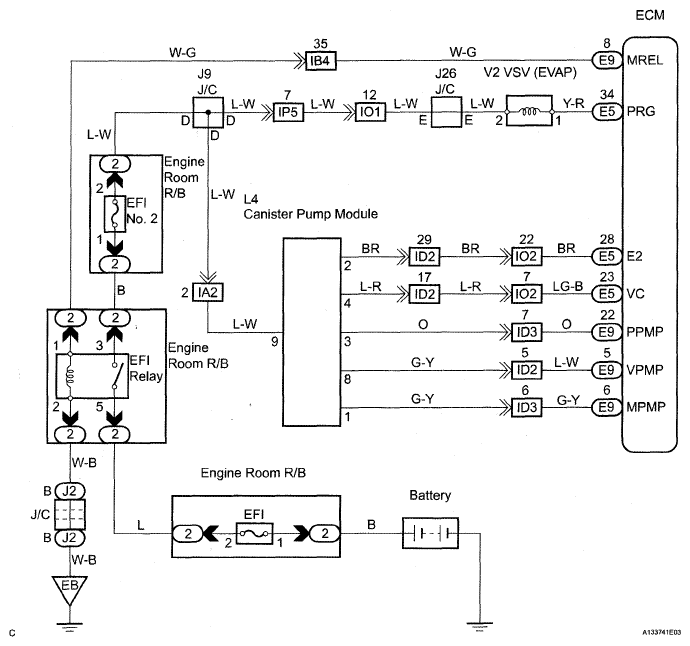

EVAP System: Wiring Diagram
Fig 1: Identifying Soak Timer Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
