OEM System Circuits: Charging: Notes

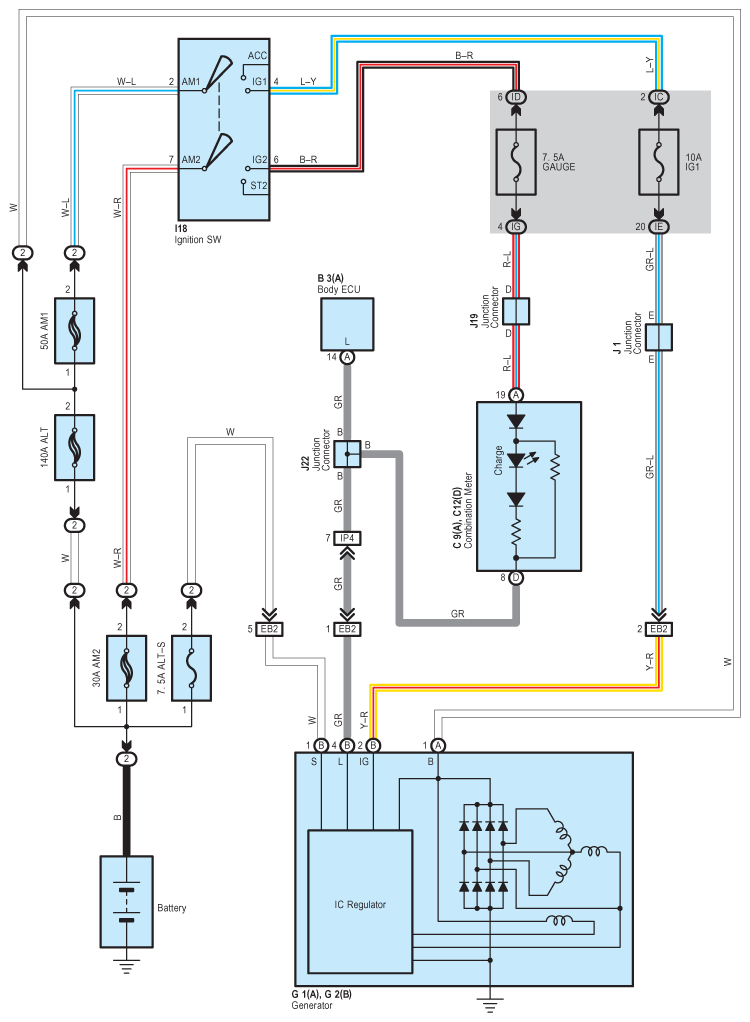

Fig 1: Charging Wiring Diagram
G08910012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
