Cigarette Lighter and Power Outlet - 12V
›
Notes
Cigarette Lighter and Power Outlet - 12V: Notes

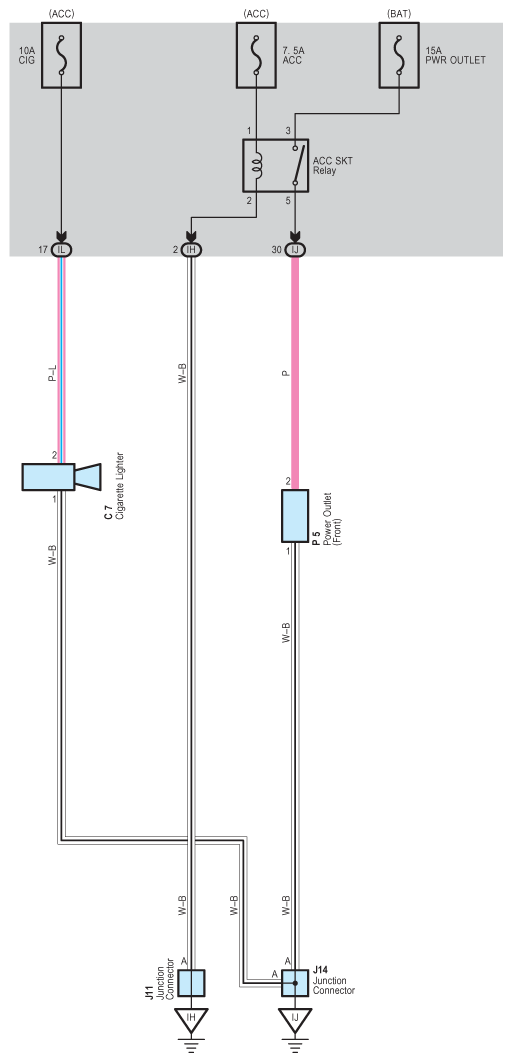

Fig 1: Cigarette Lighter And Power Outlet - 12V Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
