Condenser Fan: Notes

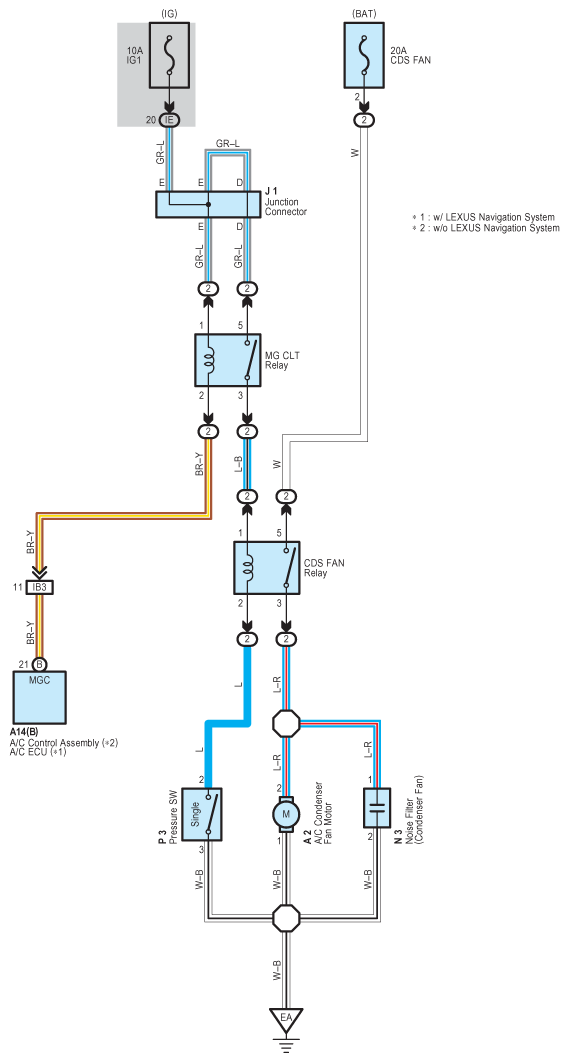

Fig 1: Condenser Fan Wiring Diagram

G08910211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
