Front Fog Light: Notes

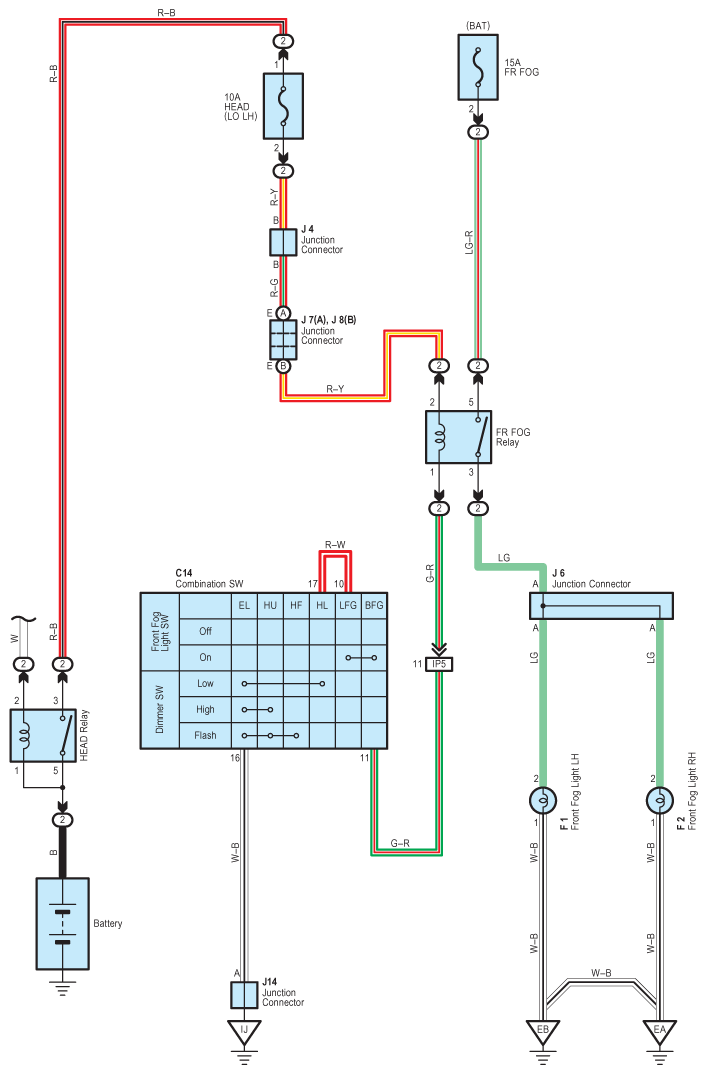

Fig 1: Front Fog Light Wiring Diagram

G08910053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
