Front Wiper with Rain Sensor and Washer: Notes

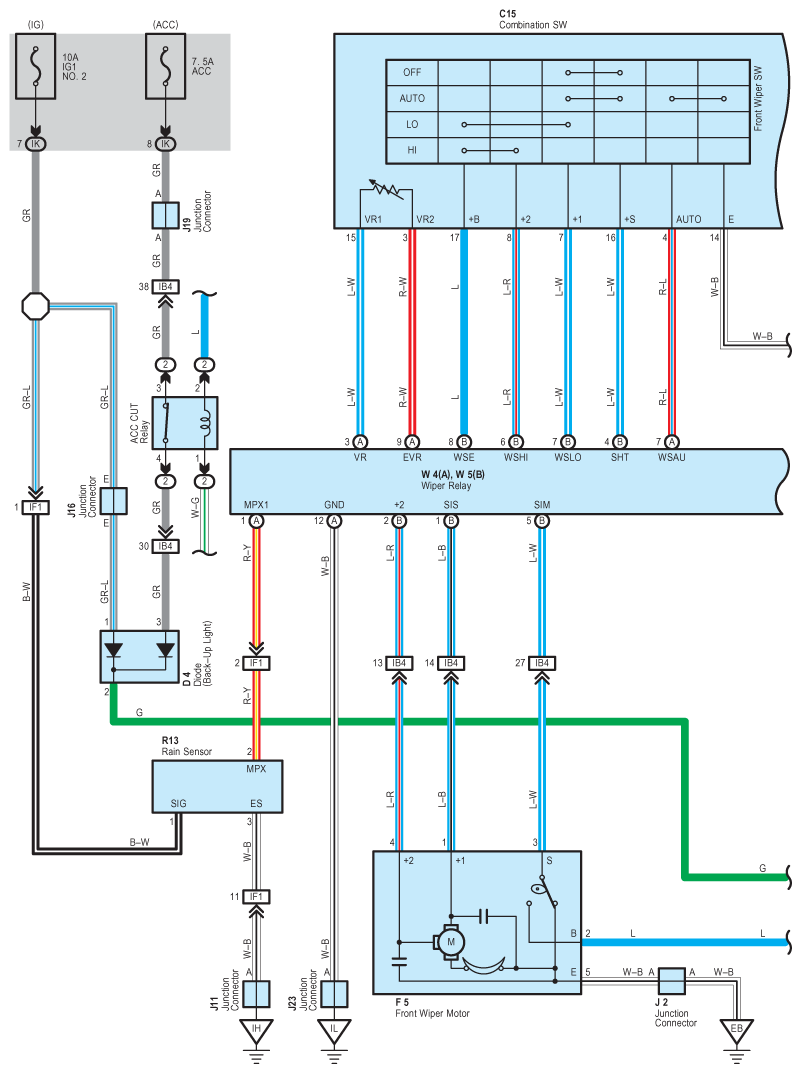

Fig 1: Front Wiper With Rain Sensor And Washer Wiring Diagram (1 Of 4)
G08910079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

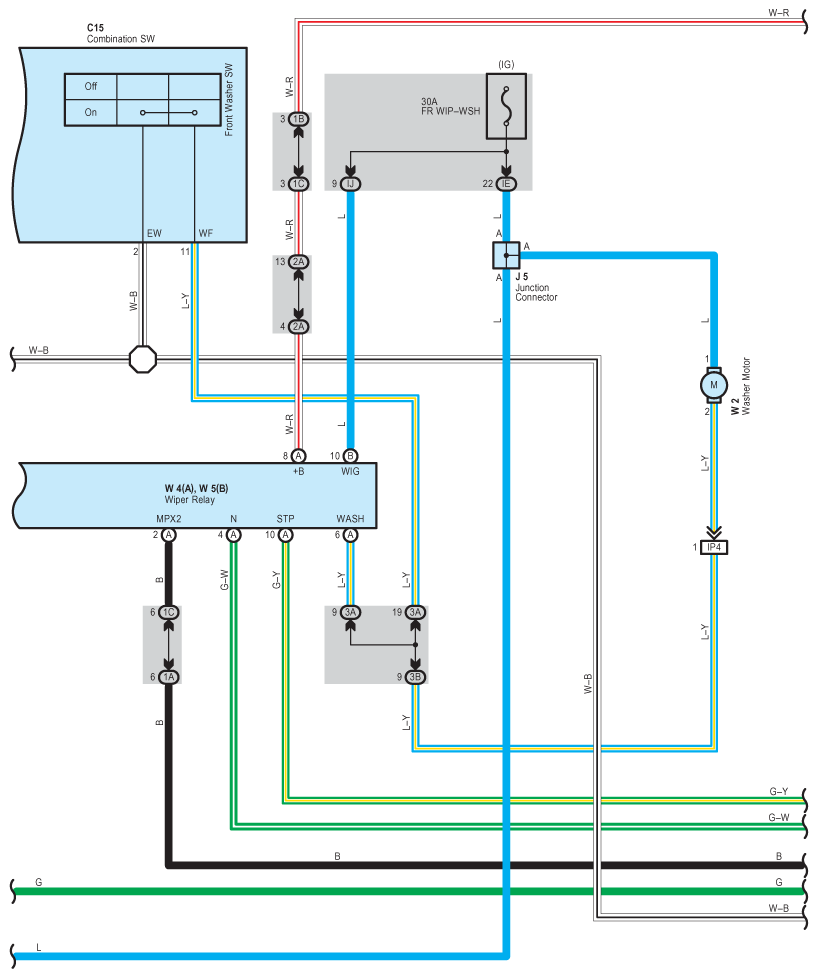

Fig 2: Front Wiper With Rain Sensor And Washer Wiring Diagram (2 Of 4)
G08910080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

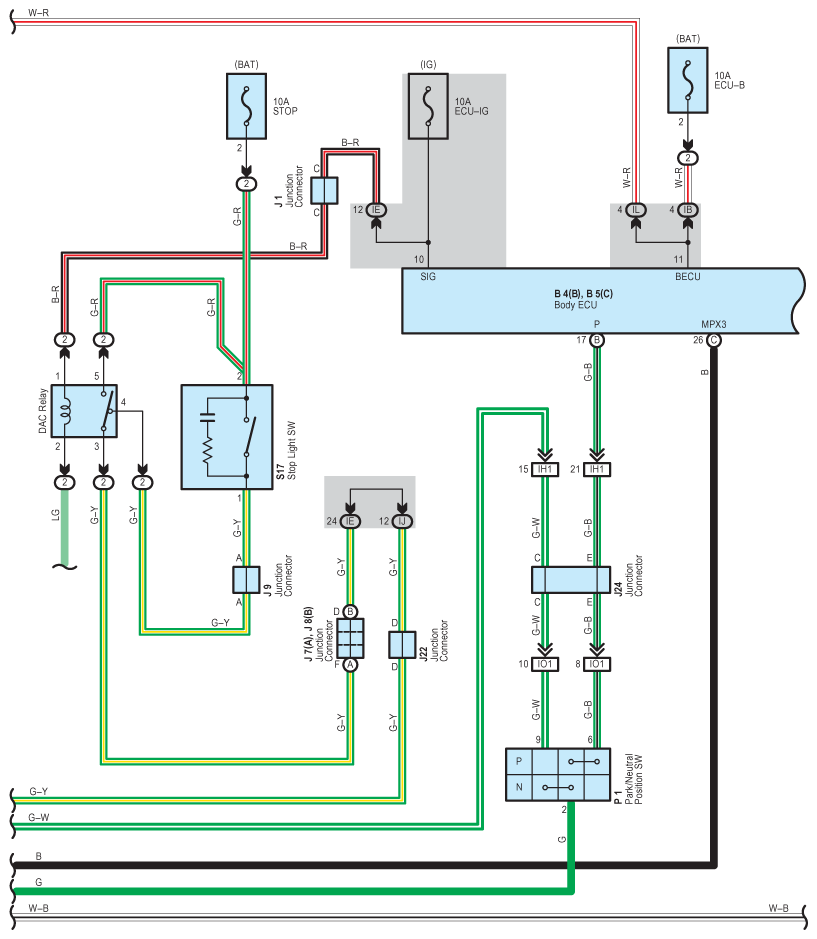

Fig 3: Front Wiper With Rain Sensor And Washer Wiring Diagram (3 Of 4)
G08910081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Front Wiper With Rain Sensor And Washer Wiring Diagram (4 Of 4)
G08910082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
