Front Wiper without Rain Sensor and Washer
›
Notes
Front Wiper without Rain Sensor and Washer: Notes

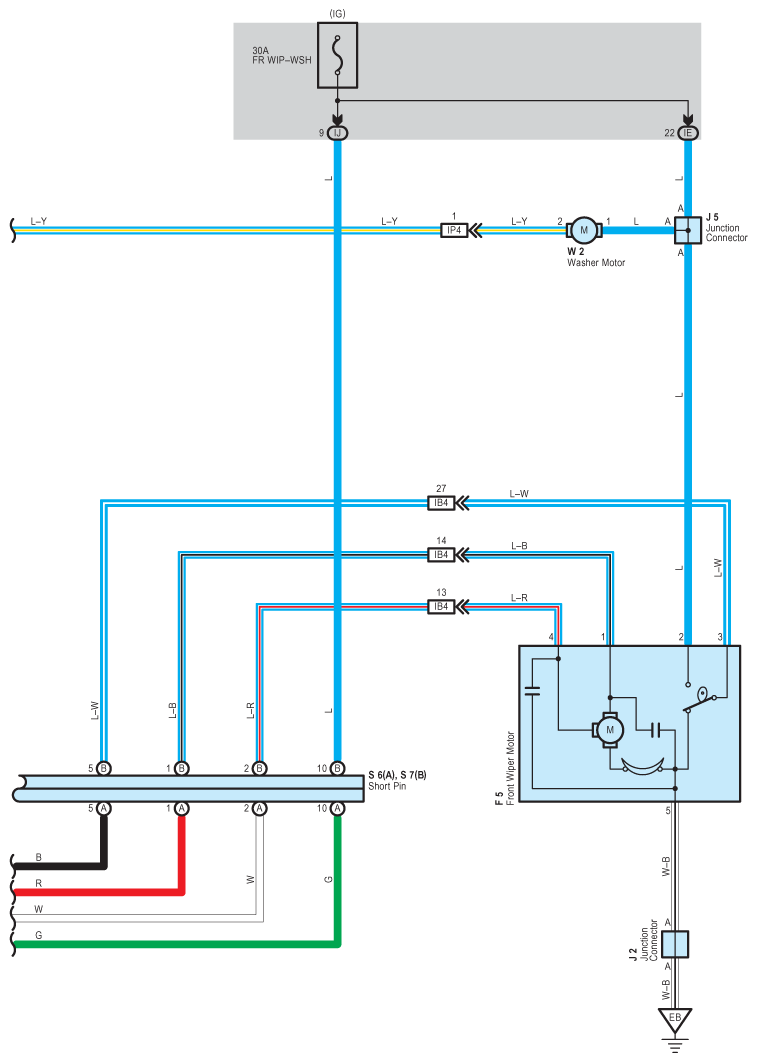

Fig 1: Front Wiper Without Rain Sensor And Washer Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

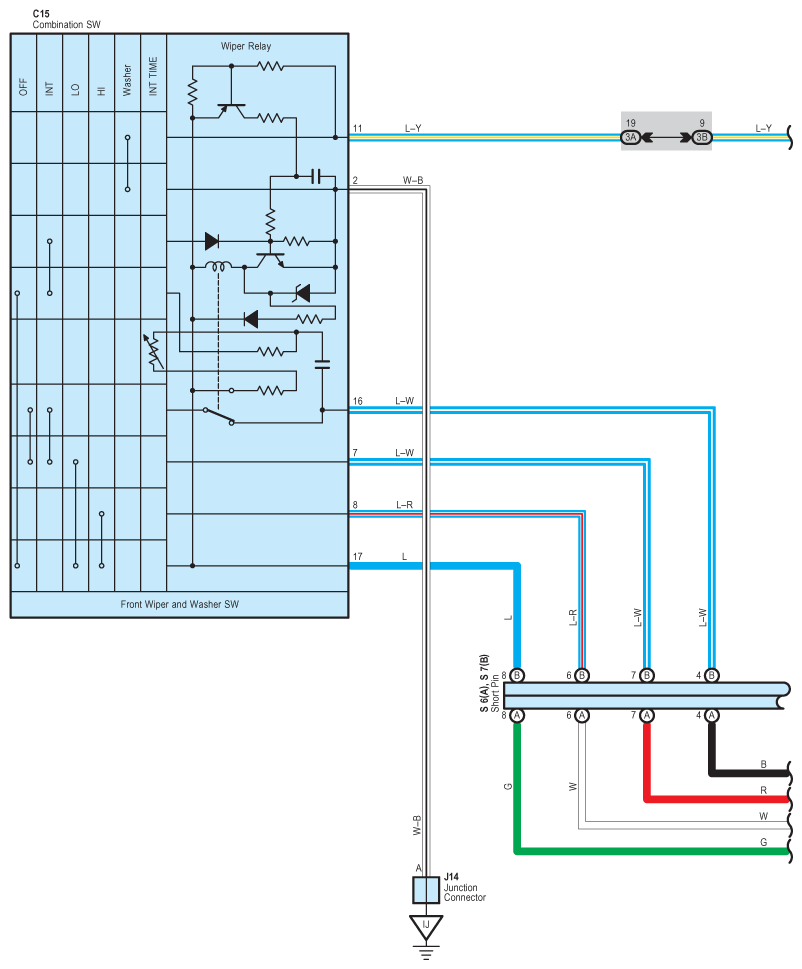

Fig 2: Front Wiper Without Rain Sensor And Washer Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
