OEM System Circuits: Horn: Notes

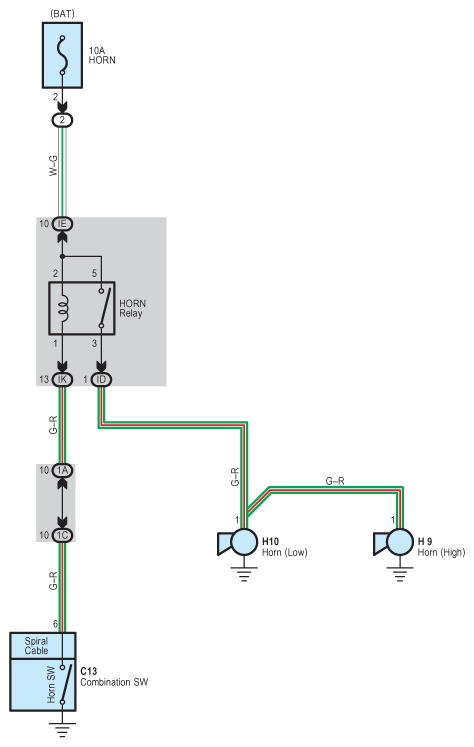

Fig 1: Horn Wiring Diagram
G08910151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
