OEM System Circuits
›
Kinetic Dynamic Suspension System
›
Notes
Kinetic Dynamic Suspension System: Notes

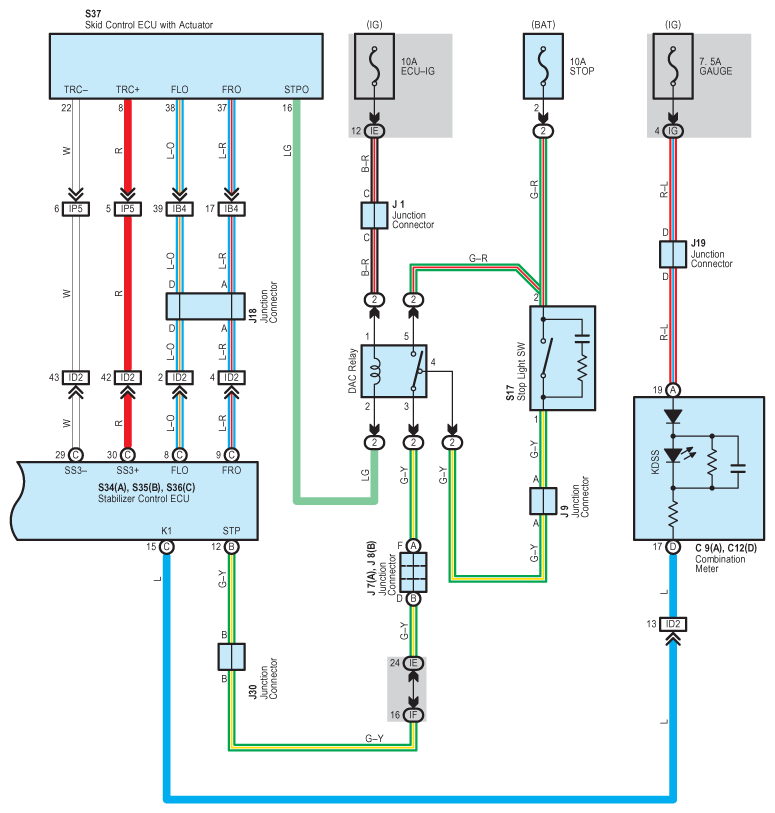

Fig 1: Kinetic Dynamic Suspension System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

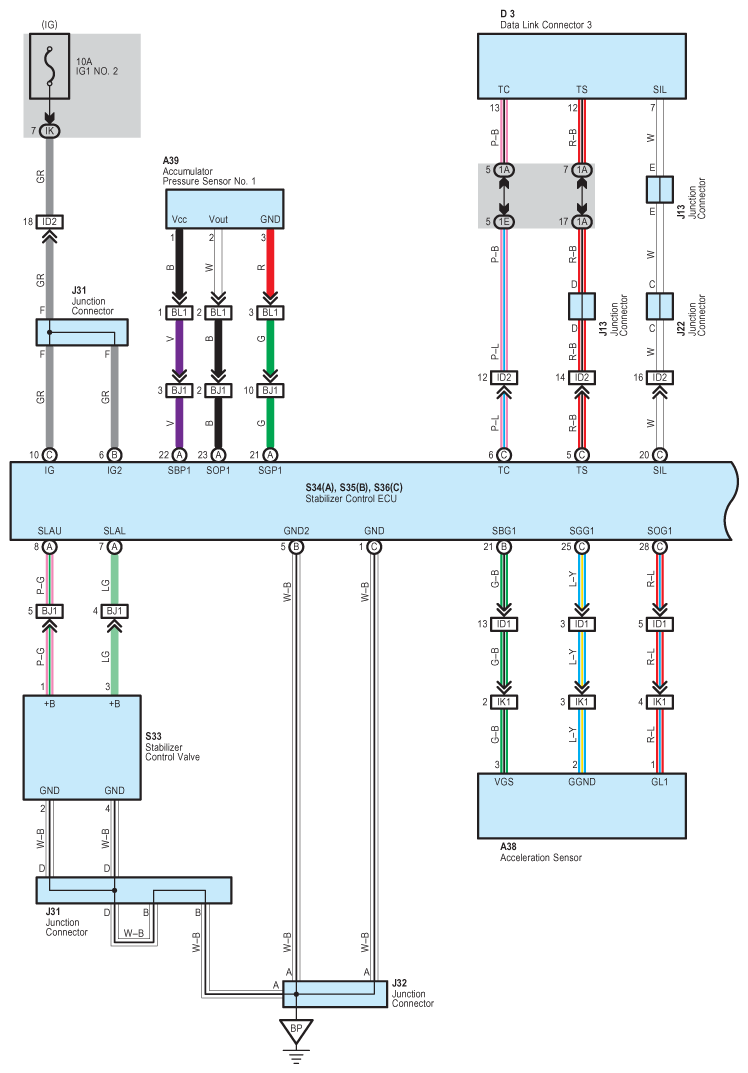

Fig 2: Kinetic Dynamic Suspension System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
