Mirror Heater: Notes

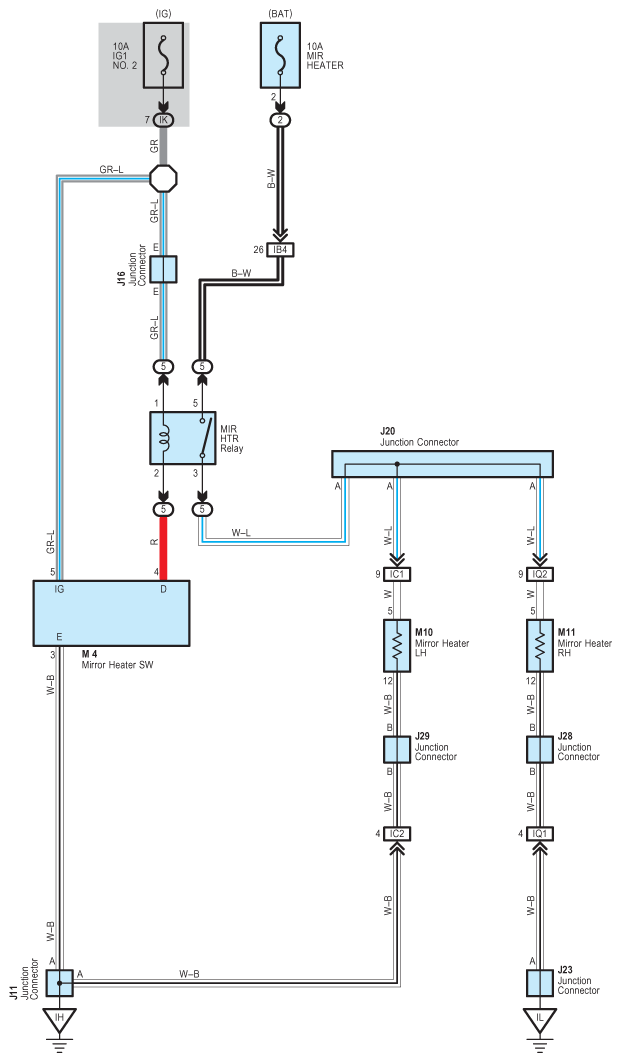

Fig 1: Mirror Heater Wiring Diagram
G08910162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
