Moon Roof: Notes

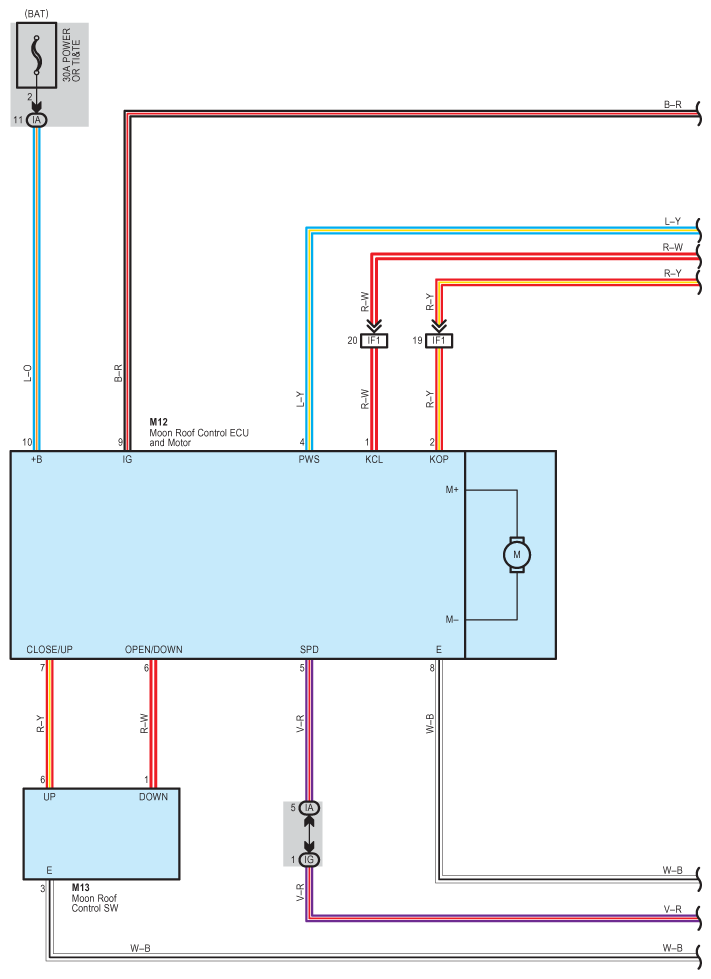

Fig 1: Moon Roof Wiring Diagram (1 Of 3)

G08910138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Moon Roof Wiring Diagram (2 Of 3)

G08910139

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Moon Roof Wiring Diagram (3 Of 3)

G08910140

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
