Power Outlet - 115V: Notes

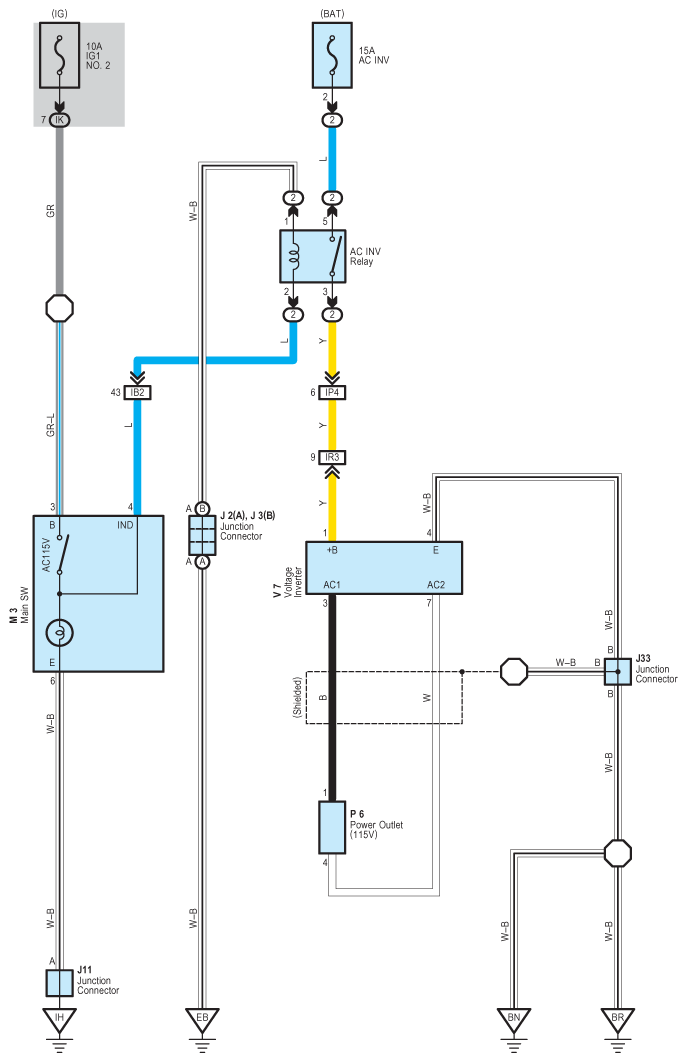

Fig 1: Power Outlet - 115V Wiring Diagram
G08910149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
